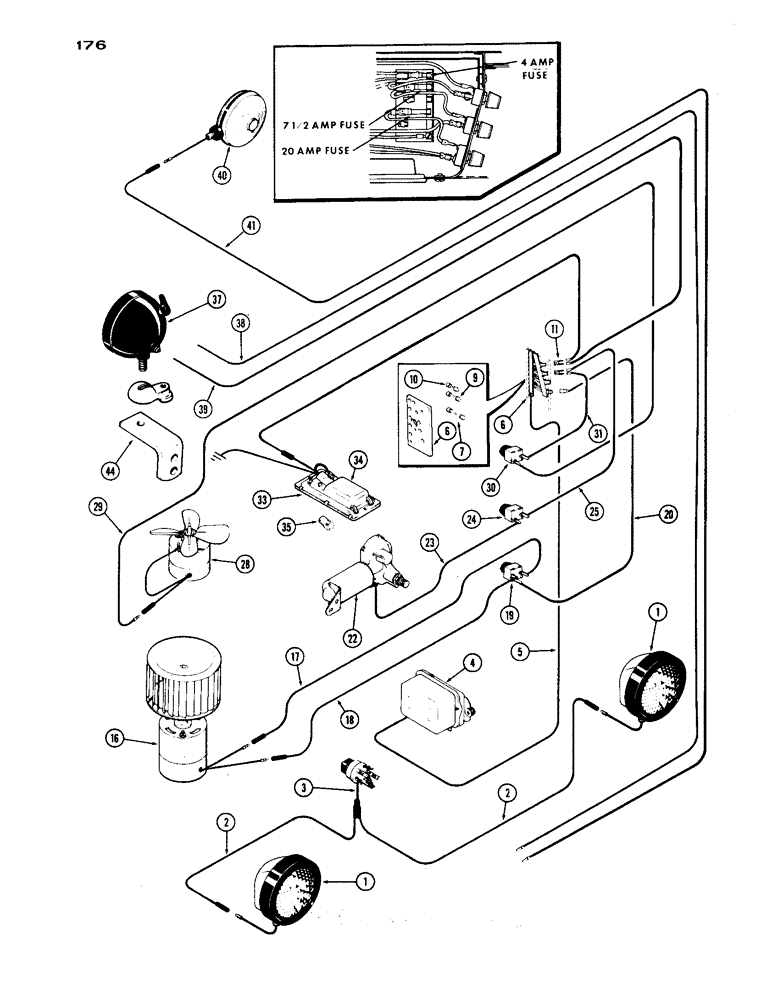

Запчасти Case IH 1030 (176) - CAB WIRING (09) - CHASSIS

1

A57823

LIGHT ASSY. - cultivator (See Fig. 43A)

2шт.

2

A57826

WIRE - cult. lights (49" long) (green)

2шт.

3

A57811

WIRE - light switch cult. term. (14" long) (Green)

1шт.

4

A57752

REGULATOR

ASSY. - voltage

1шт.

5

A41717

WIRE - power (orange) (108" long)

1шт.

6

A41669

BLOCK - terminal & fuse

1шт.

7

223-20

FUSE,20 Amp, Type SFE

- blower (20 amp)

1шт.

9

223-7

FUSE,7 1/2 Amp, Type SFE

- windshield wiper & heater (7-1/2 amp.)

1шт.

10

223-4

FUSE,4 Amp, Type 3AG

- dome light & tail lamp (4 amp.)

1шт.

11

A41668

ADAPTER - wire (2 way)

2шт.

16

F91903

MOTOR

ASSY. - blower (See Fig. 170)

1шт.

17

A41688

WIRE - blower (Hi-Heat) (36" long) (orange)

1шт.

18

A41689

WIRE - blower (Lo Heat) (36" long) (red)

1шт.

19

A41670

SWITCH

ASSY. - blower

1шт.

20

A41718

WIRE - jumper, blower switch to 20 amp. fuse terminal (10" long)

1шт.

22

F87197

MOTOR ASSY. - windshield wiper (Replaces A41677)

1шт.

23

A41714

WIRE - windshield wiper (black, 34" long)

1шт.

24

A41671

SWITCH

ASSY. - windshield wiper

1шт.

25

A41718

WIRE - jumper (wiper switch to 7-1/2 amp. fuse)

1шт.

28

A41733

MOTOR

MOTOT ASSY. - heater (See Fig. 172)

1шт.

29

A41780

WIRE -, Serial Range: heater-switch

1шт.

30

A41732

SWITCH ASSY. - heater

1шт.

31

A41718

WIRE - heater switch to 7-1/2 amp. fuse

1шт.

33

A41701

PANEL ASSY.

- dome light & accessories

1шт.

34

A41690

LIGHT ASSY. - dome, Includes Ref: 35

1шт.

35

A41742

BULB

- dome lite

1шт.

37

A20965

LAMP BASE

LAMP ASSY. - tail & flood

1шт.

38

A41995

WIRE - tail lamp to wire harness (186" long) (1st used trac. ser. no. 8347842)

1шт.

39

A41715

WIRE - tail lamp to 4 amp. fuse (in cab) (108" long) (used prior to trac. ser. no. 8347842)

1шт.

40

A34853

LAMP

ASSY. - flasher

1шт.

41

A41716

WIRE - flasher (Green) (150" long)

1шт.

A57814

COVER - wire (in cab) (not illust.)

1шт.

F53322

GROMMET - wire (in platform) (1/4 x 1/2 x 7/32") (not illust.)

2шт.

T32033

X

GROMMET - wire (in cab) (1/4 x 9/16 x 5/16") (not illust.)

2шт.

44

A57815

BRACKET - tail lamp

1шт.
