(173A) - REAR VIEW MIRROR

Запчасти Case IH 1030 (173A) - REAR VIEW MIRROR (09) - CHASSIS

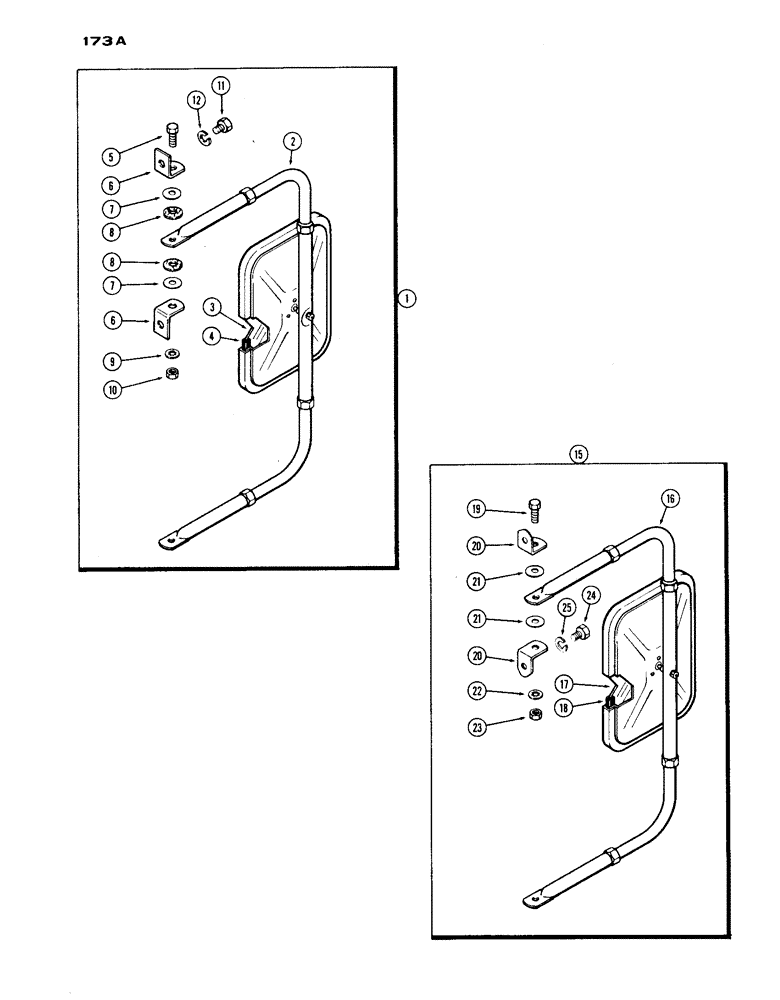

Схема запчастей Case IH 1030 - (173A) - REAR VIEW MIRROR (09) - CHASSIS
17
10
19
20
25
23
18
24
11
16
7
15
6
2
21
8
7
9
12
3
5
8
22
21
4
1
6
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60043

REAR VIEW MIRROR - tractor w/cab (machinery item), Includes Ref: 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - rear view w/rim, Includes Ref: 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

MIRROR - glass

1шт.

4

A42186

RIM - mirror (rubber)

1шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

6

A60046

CLIP - mounting, rear view mirror

4шт.

7

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

8

A57841

WASHER

- mounting (7/16 x 3/4 x 3/64" fiber)

4шт.

9

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

10

129-123

NUT,3/8"-24, G5

2шт.

11

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Clip to cab Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

A57838

REAR VIEW MIRROR - tractor w/cab (Machinery Item) (Order A60043), Includes Ref: 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - rear view, Includes Ref: 17 and 18

2шт.

17

A41771

MIRROR - glass

1шт.

18

A41772

BEZAL - mirror retaining

1шт.

19

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Mirror to clip

2шт.

20

A57840

CLIP - mirror mounting

4шт.

21

A57841

WASHER

- (7/16 x 3/4 x 3/64" fiber)

4шт.

22

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

23

129-123

NUT,3/8"-24, G5

2шт.

24

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Clip to cab Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
