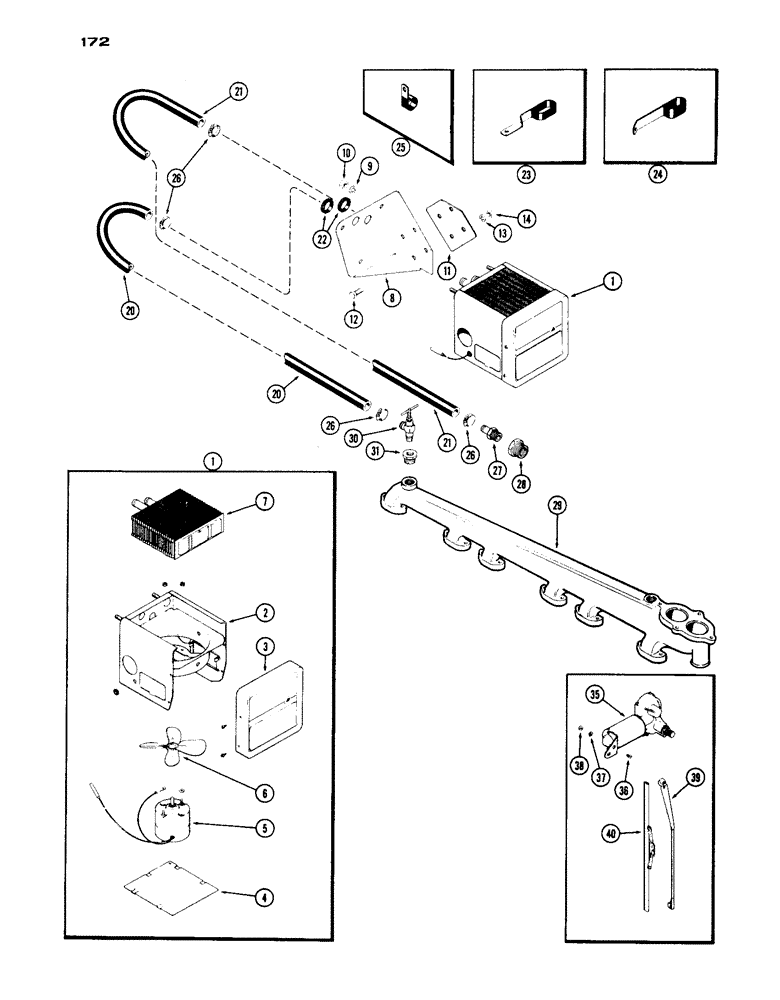

Запчасти Case IH 1030 (172) - CAB HEATER ATTACHMENT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
A57828
HEATER ASSY. - (incl. heater switch & jumper wire) (See Fig. 176), Includes Ref: 2 - 7
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - heater
1шт.
3
NSS
NOT SOLD SEPARAT
COVER - vent door
1шт.
4
NSS
NOT SOLD SEPARAT
COVER - housing bottom
1шт.
5
A41733
MOTOR
ASSY. - heater
1шт.
6
A41735
FAN
ASSY. - heater
1шт.
7
A41734
CORE - radiator
1шт.
8
A57829
BRACKET - heater mounting
1шт.
9
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
3шт.
10
9635082
NUT,5/16" - 18, Gr 5
3шт.
11
A57830
SUPPORT - mtg. brkt.
1шт.
12
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Bracket to support Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
13
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
14
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
20
A57833
HOSE - shut-off valve to water manifold (102" lg.)
1шт.
21
A57834
HOSE - heater to water pump (119" long)
1шт.
22
T30339
GROMMET - heater hoses (in cab)
2шт.
23
A57837
CLIP - hose, rear
2шт.
24
A57835
CLIP - hose, center
1шт.
25
R14668
CLAMP
CLIP - hose, front
1шт.
26
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose (9/16" TO 1-1/16")
4шт.
27
217-153
FITTING,5/8" Hose Barb x 1/2" Male NPTF
CONNECTOR - heater hose (at water pump)
1шт.
28
221-1060
REDUCER,Hex, 3/4" x 1/2" NPT
BUSHING - heater hose (in water pump) (3/4" to 1/2")
1шт.
29
A57755
MANIFOLD - water
1шт.
30
A16764
VALVE
- shut-off (at manifold)
1шт.
31
221-1056
BUSHING
- (in manifold), Serial Range: (1/2"-3/8")
1шт.
35
F87197
MOTOR - windshield wiper (single speed 12 V.)
1шт.
36
173-237
SCREW,Sl Rnd Hd, #10 - 32 x 1/2"
- wiper motor (#10-32 x 1/2" rd. hd.), windshield
1шт.
37
193-42
WASHER, LOCK,Ext-Int Tooth, #10
WASHER - (#10 int./ext. skpf.), windshield wiper
1шт.
38
129-37
NUT,#10-32
Windshield wiper #10-32
1шт.
39
A10893
ARM
- windshield wiper
1шт.
40
A10894
WINDSHIELD WIPER
BLADE - windshield wiper
1шт.
Выбрано товаров: 32
