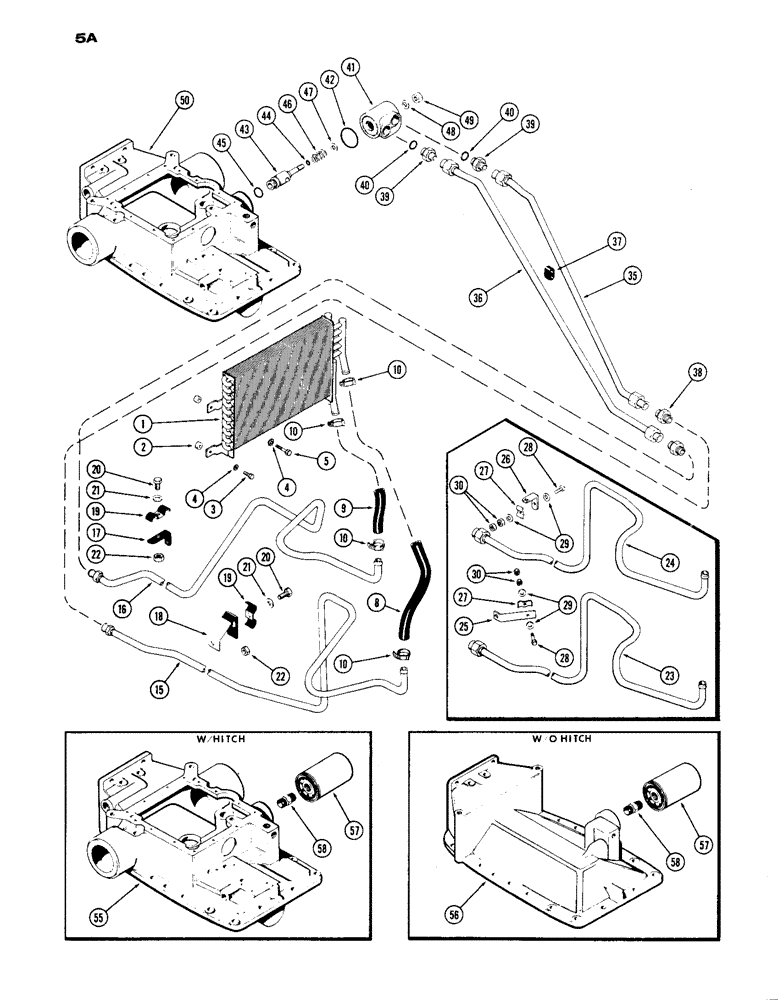

Запчасти Case IH 1030 (005A) - OIL COOLER AND LINES, FIRST USED TRACTOR SERIAL NUMBER 8310335 (02) - ENGINE

1

A57183

COOLER ASSY.

COOLER - transmission oil

1шт.

2

195-520

WASHER,1/4"

- upper cooler mtg. brkt. (5/16 x 7/8 x 1/16") (used w/radiator shutter only)

2шт.

3

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- cooler mtg. (1/4 x 1" N.F. hex.)

2шт.

4

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

5

114-122

BOLT,Hex, 5/16" - 24 x 2", Gr 5

Cooler mounting Hex, 5/16"-24 x 2", G5

2шт.

8

A57184

HOSE - cooler inlet (3/4" I.D. x 9")

1шт.

9

A57185

HOSE

- cooler outlet (3/4" I.D. x 4-3/4")

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

4шт.

15

A57738

TUBE - cooler, inlet (1st used trac. ser. no. 8351402)

1шт.

16

A57737

TUBE

- coooler, outlet (1st used trac. ser. no. 8351402)

1шт.

17

A57739

ANGLE - tube support (For 1/4" clamp bolt)

1шт.

18

A57741

BRACKET - tube support (for 1/4" clamp bolt)

1шт.

19

A57740

CLAMP

- tubes (For 1/4" bolt)

2шт.

20

113-7

BOLT,Locking, 1/4" - 20 x 1/2", Gr 5, Full Thd

WASHER - (9/32 x 5/8 x 1/16")

4шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

23

A57378

TUBE - cooler inlet, (Replaced A57113) (used prior to trac. ser. no. 8351402)

1шт.

24

A57379

TUBE - cooler outlet. (Replaced A57115) (used prior to trac. ser. no. 8351502)

1шт.

25

A57380

BRACKET - tube support, (Replaced A57354) (For #10 clamp screw)

1шт.

26

A57236

ANGLE - tube support (for #10 clamp screw)

1шт.

27

A57235

CLAMP - oil tubes (for #10 screw)

2шт.

28

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

- clamp, (#10 x 1-3/4" N.C. hex.)

2шт.

29

195-512

WASHER,#10

- (7/32 x 7/16 x 3/64")

4шт.

30

129-17

NUT,Hex, #10 - 24

NUT - (#10 N.C. hex.)

4шт.

35

A57114

TUBE - cooler by-pass inlet

1шт.

36

A57112

TUBE - cooler by-pass outlet

1шт.

37

G46835

GROMMET

- hyd. tubing

1шт.

38

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - cooler tubes union

2шт.

39

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - cooler tube to body, Incl. Ref: 40

2шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

41

A57111

BODY - oil cooler by-pass

1шт.

42

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

"O" RING - body (2-5/8 x 2-13/16 x 3/32")

1шт.

43

A57109

CONNECTOR - oil cooler by-pass

1шт.

44

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - connector (3/8 x 1/2 x 1/16")

1шт.

45

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - connector (31/32 x 1-7/64 x 5/64")

1шт.

46

A57163

SPRING - by-pass (1-3/4" free length)

1шт.

47

A57108

WASHER - spring seat (1/2 x 1-1/16 x 16 Ga.)

1шт.

48

92-8

LOCK WASHER,1/2"

1шт.

49

25-108

NUT,1/2"-13, G5

- body ret. (1/2" N.C. hex.)

1шт.

50

A34794

COVER ASSY. - (used w/hitch)(See Page 113)

1шт.

50

A33520

COVER ASSY. - (used w/out hitch)(See Fig. 110)

1шт.

55

A34794

COVER ASSY. - (used w/hitch)(See Page 113), use prior to trac. ser. no. 8310335

1шт.

56

A33520

COVER ASSY. - (used w/out hitch)(See Fig. 110), use prior to trac. ser. no. 8310335

1шт.

57

A32297

HYDRAULIC OIL FILTER

FILTER - hydraulic oil, use prior to trac. ser. no. 8310335

1шт.

58

A33415

ADAPTER - hyd. oil filter, use prior to trac. ser. no. 8310335

1шт.
