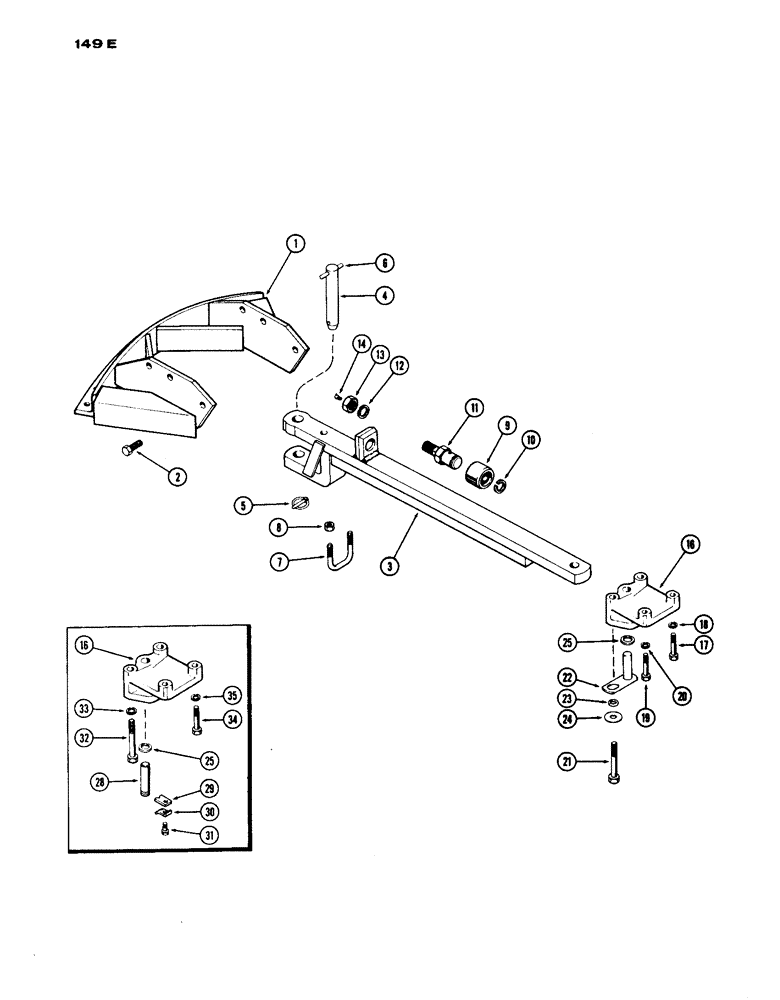

Запчасти Case IH 1030 (149E) - DRAWBAR, LONG SWINGING, USED WITHOUT HITCH (09) - CHASSIS

1

A34846

SUPPORT - drawbar (Replaces A34661)

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Support Hex, 3/4"-10 x 1 3/4", G5

6шт.

3

A57210

DRAWBAR - long swinging

1шт.

4

A57998

PIN

ASSY. - (1-1/4" dia.) (Replaced A57212), Includes Ref: 5 and 6

1шт.

5

A30338

PIN

- klik

1шт.

6

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

PIN - handle (3/8 x 3-1/4" roll)

1шт.

7

A34479

"U" BOLT - drawbar clamp

1шт.

8

25-108

NUT,1/2"-13, G5

- "U" bolt (1/2" N.C. hex.)

2шт.

9

A27010

ROLLER

- drawbar

1шт.

10

A27012

RING

- snap, roller ret.

1шт.

11

A32946

BOLT

- roller shaft

1шт.

12

92-18

LOCK WASHER,1 1/8"

pin 1 1/8"

1шт.

13

129-131

NUT,1 1/8"-12, G5

- pin ret. (1-1/8" N.F. hex.)

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

16

A57201

BRACKET

- drawbar pivot pin (Replaces A33005)

1шт.

17

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- bracket (5/8 x 2-3/4" N.C. hex.)

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- bracket (3/4 x 4-3/4" N.C. hex.)

1шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

21

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Bracket Hex, 3/4"-10 x 5", G5

1шт.

22

A57932

PIN

- pivot, drawbar (1st used trac. ser. no. 8344297)

1шт.

23

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32") (1st used trac. ser. no. 8344297)

1шт.

24

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32") (use w/13-1288 bolt)

1шт.

25

A35270

WASHER

- spring, pivot pin (anti-rattle)

1шт.

28

A34110

PIN

- drawbar pivot (used prior to trac. ser. no. 8344297) (Order 1-A57929 spacer, 1-A57932 pin, 1-13-1280 bolt & 1-95-12 washer)

1шт.

29

A57524

STRAP

- pivot pin ret. (Replaced A34111) (used prior to trac. ser. no. 8344297)

1шт.

30

A34091

LOCK - pivot pin (use 92-6 washer for repairs)

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

32

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- bracket (3/4 x 4-3/4" N.C. hex.)

2шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

34

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- (5/8 x 2-3/4" N.C. hex.)

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
