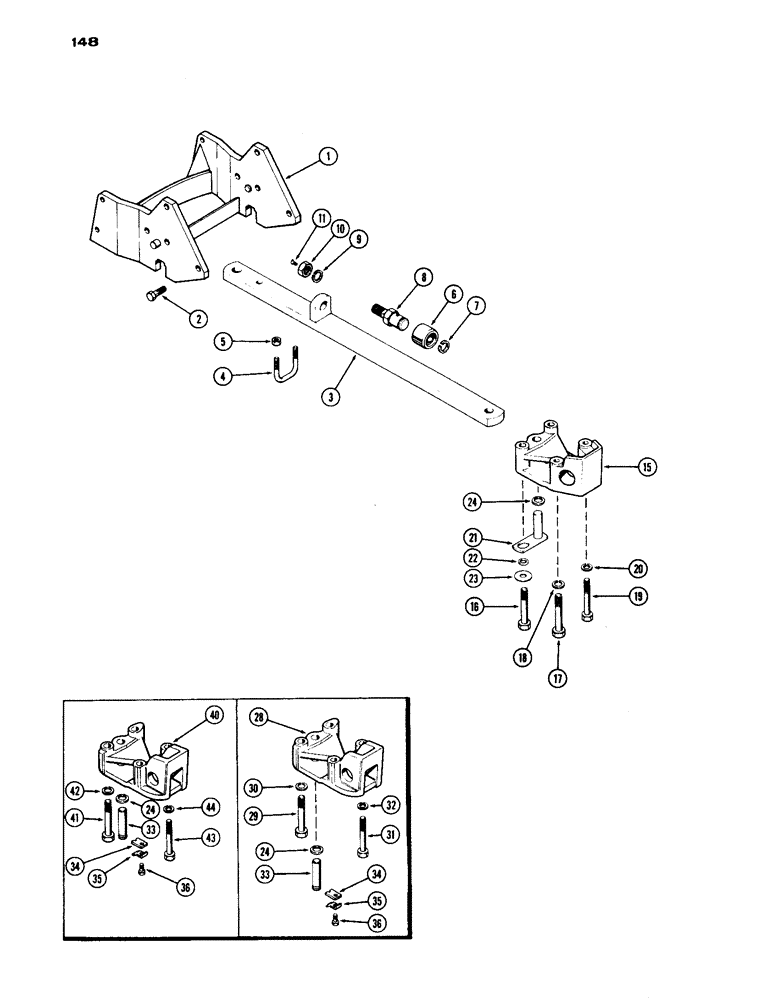

Запчасти Case IH 1030 (148) - DRAWBAR, SHORT SWINGING, USED WITH HITCH (09) - CHASSIS

1

A34472

SUPPORT - drawbar

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Support Hex, 3/4"-10 x 2", G5

8шт.

3

A57528

DRAWBAR

- (with 1-1/4" implement pin hole)

1шт.

3

A34477

DRAWBAR

- (with 1" implement pin hole) (Order A57528)

1шт.

4

A34479

"U" BOLT - drawbar clamp

1шт.

5

25-108

NUT,1/2"-13, G5

- "U" bolt (1/2" N.C. hex.)

2шт.

6

A27010

ROLLER

- drawbar

1шт.

7

A27012

RING

- snap, roller ret.

1шт.

8

A32946

BOLT

- roller shaft

1шт.

9

92-18

LOCK WASHER,1 1/8"

pin 1 1/8"

1шт.

10

129-131

NUT,1 1/8"-12, G5

- pin ret. (1-1/8" N.F. hex.)

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

15

A57956

BRACKET

- drawbar pivot pin (See Note) (See Fig. 116)

1шт.

16

15-1288

BOLT - (3/4 x 5-1/2" N.C. hex.)

1шт.

17

15-1284

BOLT

- (3/4 x 5-1/4" N.C. hex.)

1шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

19

15-1080

X

BOLT - (5/8 x 5" N.C. hex.)

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

A57932

PIN

- pivot drawbar (1st used trac. ser. no. 8344297)

1шт.

22

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32") (1st used trac. ser. no. 8344297)

1шт.

23

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32") (use w/15-1288 bolt)

1шт.

24

A35270

WASHER

- spring, pivot pin (anti-rattle)

1шт.

28

A57580

BRACKET

- drawbar pivot pin (See Fig. 116) (Order 1-A57956 brkt., 2-A57585 washer & 2-A57943 bolt)

1шт.

See Figure 117D For Bracket & Wishbone Kit

1шт.

29

15-1284

BOLT

- (3/4 x 5-1/4" N.C. hex.)

2шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

31

15-1080

X

BOLT - (5/8 x 5" N.C. hex.)

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

A34110

PIN

- drawbar pivot (used prior to trac. ser. no. 8344297) (Order 1-A57929 spacer, 1-A57932 pin, 1-13-1288 bolt, & 1-95-12 washer)

1шт.

34

A57524

STRAP

- pivot pin ret. (Replaced A34111) (used prior to trac. ser. no. 8344297)

1шт.

35

A34091

LOCK - pivot pin (use 92-6 washer for repairs)

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

40

A34460

BRACKET - drawbar pivot pin (used prior to trans. ser. no. 2221982)

1шт.

See Figure 117D For Bracket & Wishbone Kit

1шт.

41

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- bracket (3/4 x 4-3/4" N.C. hex.)

2шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

43

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- bracket (5/8 x 4-3/4" N.C. hex.)

2шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
