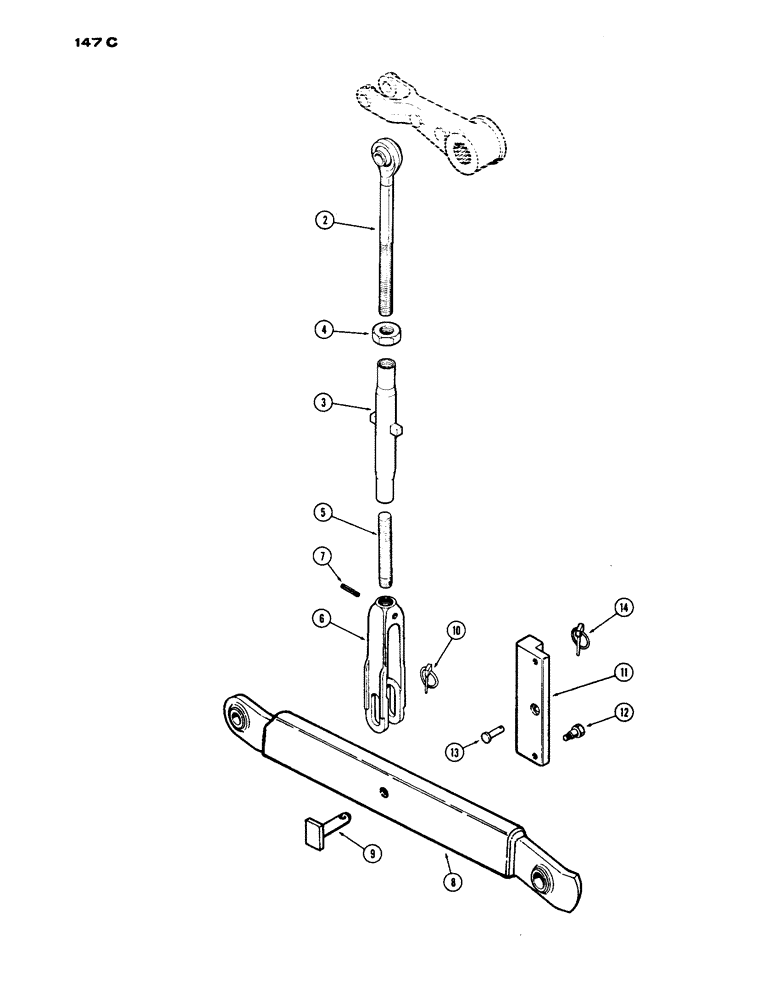

Запчасти Case IH 1030 (147C) - HEAVY DUTY THREE POINT HITCH (09) - CHASSIS

A60051

HITCH ATTACHMENT - heavy duty (mach. item), Includes Ref: 2 - 14

1шт.

2

A60064

LINK ASSY. - upper (11-3/4" long)

2шт.

3

A57500

TURNBUCKLE - lift link adjustment

2шт.

4

129-372

NUT,Jam, 1 1/4"-12, G5, LH

- lock, upper link (1-1/4" N.F. jam, L.H. thread)

2шт.

5

A60067

LINK - lower (1-1/4" N.F. x 9-21/32")

2шт.

6

A60066

YOKE - lift link

2шт.

7

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , link ret. 5/16" x 1 3/4", Slotted

2шт.

8

A60052

ARM ASSY. - draft, right hand

1шт.

8

A60053

ARM ASSY. - draft, left hand

1шт.

9

A60063

PIN - float, lift link

2шт.

10

A33509

PIN,11.18mm OD

ASSY. - klick, float pin ret.

2шт.

11

A60059

STOP

- draft arm sway

2шт.

12

A34471

STEP BOLT

BOLT - shoulder, sway stop

2шт.

13

A34470

PIN

- clevis, sway stop

2шт.

14

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick, clevis pin ret.

2шт.
