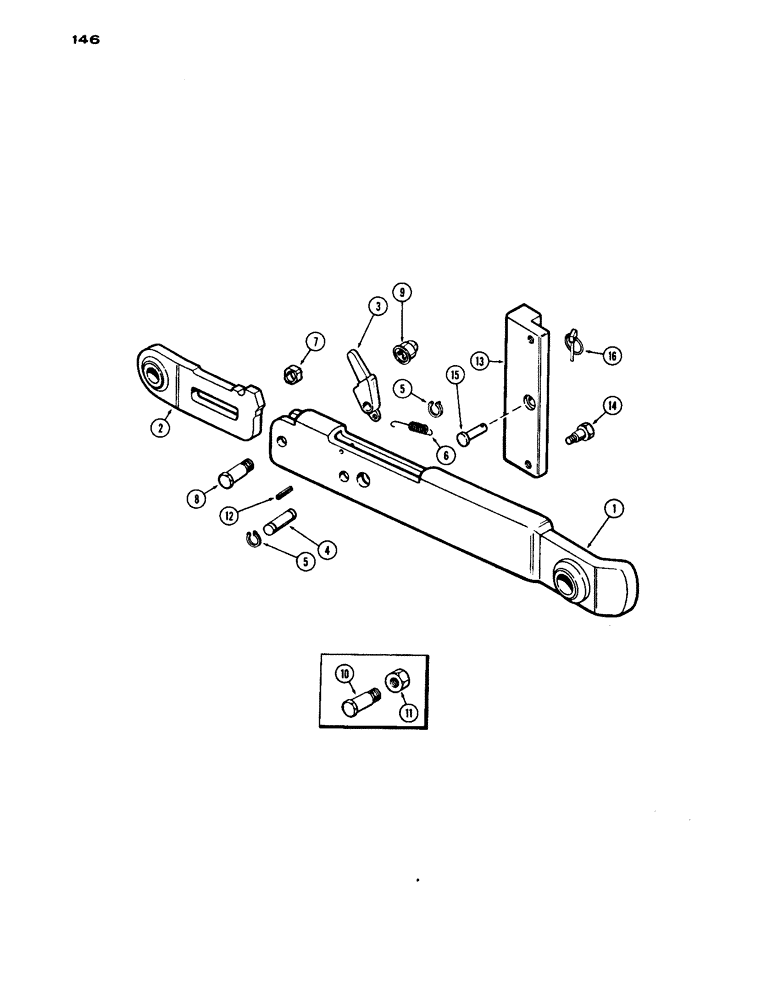

Запчасти Case IH 1030 (146) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS

A57095

ARM ASSY. - draft, lefthand (not illust.) (1st used trac. ser. no. 8300852)

1шт.

A34583

ARM ASSY. - draft, left hand (not illust.) (Order A57095) (Used prior to trac. ser. no. 8300852)

1шт.

A57094

ARM

ASSY. - draft, right hant (not illust.) (1st used trac. ser. no. 8300852)

1шт.

NLS

NO LONGER SERVICED

ARM ASSY. - draft, right hand (not illust.) (Order A57094) (Used prior to trac. ser. no. 8300852), Includes Ref: 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - (Order A57094 or A57095)

1шт.

2

A34587

LINK - folding, left hand

1шт.

2

A34586

LINK ASSY.

LINK - folding, right hand

1шт.

3

A34592

LATCH

- folding link

1шт.

4

A34420

PIN

- latch pivot

1шт.

5

A33531

SNAP RING,#75, Ext

Ring, Snap, , latch pin #75, Ext

2шт.

6

A34591

SPRING

- latch tension

1шт.

7

A34422

BLOCK

- sliding, folding link

1шт.

8

A57434

STEP BOLT

BOLT - shoulder, link to arm (5/8" N.C. x 2-3/8" with 1-19/32" threads) (See ref. 10 before ordering) (1st used trac. ser. no. 8328336)

1шт.

9

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, (Gripco) 5/8"-11, GB

1шт.

10

A34741

X

BOLT - shoulder, link to arm (5/8" N.C. x 2-7/32" with 1-7/16" threads) (Order 1-A57434 & 1-131-1105) (Used prior to trac. ser. no. 8328336)

1шт.

11

25-1010

NUT,5/8"-11, G5

Used w/A34741 bolt 5/8"-11, G5

1шт.

12

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

13

A34467

STOP

- draft arm sway

2шт.

14

A34471

STEP BOLT

BOLT - shoulder, sway stop

2шт.

15

A34470

PIN

- clevis, sway stop

2шт.

16

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick

2шт.
