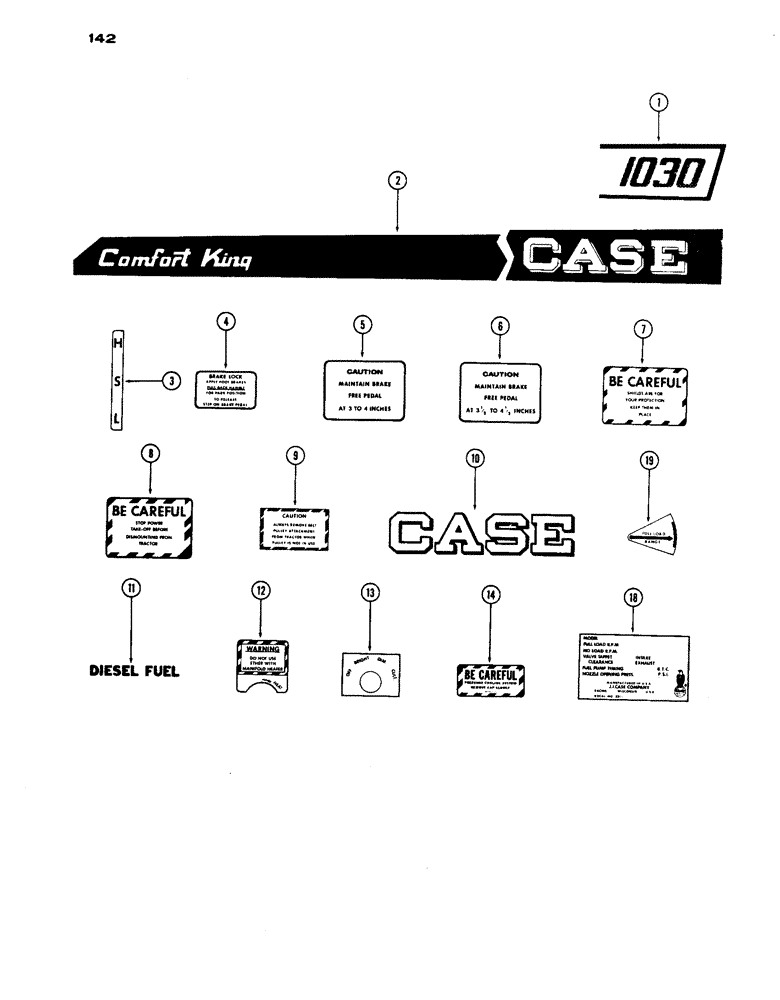

Запчасти Case IH 1030 (142) - DECALS, FIRST USED TRACTOR SERIAL NUMBER 8347941 (09) - CHASSIS

A41620

KIT

DECAL SET, Includes Ref: 1 - 14

1шт.

1

321-1192

DECAL

- 1030, grille cap, right hand (vinyl)

1шт.

1

321-1193

DECAL

- 1030, grill cap, left hand (vinyl)

1шт.

2

321-1194

DECAL

- case & comfort king, hood, right hand side (vinyl)

1шт.

2

321-1195

DECAL

- case & comfort king, hood, left hand side (vinyl)

1шт.

3

321-731

DECAL

- range indicator

1шт.

4

321-1034

DECAL

- brake lock

1шт.

5

321-1035

DECAL

- brake instructions (3" to 4" adj.)

1шт.

6

321-1046

DECAL

- brake instructions (3-1/2" to 4-1/2" adj.)

1шт.

7

321-608

DECAL

- be careful, P.T.O. shield

1шт.

8

321-605

DECAL

- be careful, P.T.O.

1шт.

9

321-333

DECAL

- caution, belt pulley

1шт.

10

321-364

DECAL

- case, fuel tank

1шт.

11

321-230

DECAL

- diesel fuel, filler neck

1шт.

12

321-933

DECAL

- warning, manifold heater

1шт.

13

321-297

DECAL

- light switch

1шт.

14

321-122

DECAL

- radiator warning

1шт.

18

321-945

DECAL - engine data, cyl. head cover

1шт.

19

321-1286

DECAL - full load range, tachometer

1шт.
