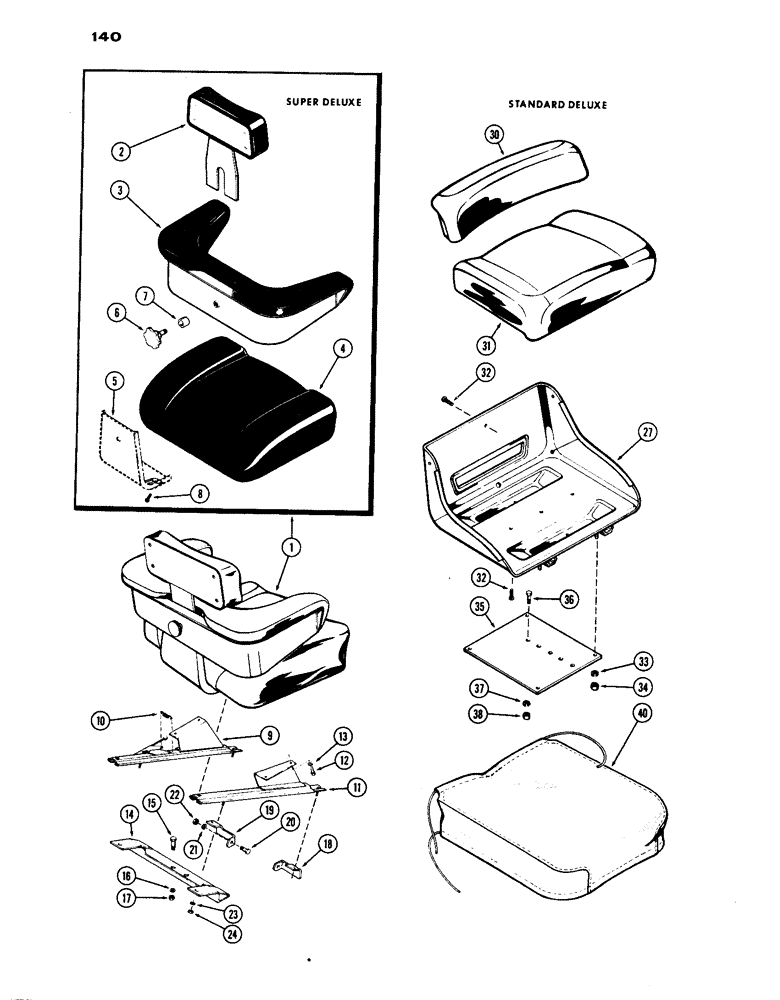

Запчасти Case IH 1030 (140) - SEATS, SUPER DELUXE (09) - CHASSIS

1

A32872

SEAT ASSY., Includes Ref: 2 - 13

1шт.

2

A34283

CUSHION

ASSY. - upper back rest

1шт.

3

A42497

BACKREST

CUSHION ASSY. - back & arm rest (Replaces A33318)

1шт.

4

A33317

CUSHION

ASSY. - seat

1шт.

5

A57405

SUPPORT

BRACKET - seat

1шт.

6

A40972

KNOB

SCREW - adjusting, upper back rest

1шт.

7

A40600

SPACER

- adj. screw (33/64 x 3/4 x 29/64")

1шт.

8

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - (5/16 x 3/4" N.C., ctsk. hd.)

2шт.

9

A40942

BRACKET

ASSY. - seat adjusting, L.H., Includes Ref: 10

1шт.

10

A25261

SPRING - adjusting lever

1шт.

11

A40943

KIT

BRACKET ASSY. - seat adjusting, R.H.

1шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

(5/16 X 5/8" N.C. rd. hd.)

8шт.

13

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

8шт.

14

A57710

BRACKET

- rear seat support (Replaces A34517)

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

18

A34520

BRACKET - seat supt., R.H. front

1шт.

19

A34521

BRACKET - seat supt., L.H. front

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

129-122

NUT,5/16"-24, G5

4шт.

A24711

SEAT

ASSY. - (not illust.), Includes Ref: 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME ASSY. - (Order A24711), standard deluxe

1шт.

30

A24712

BACKREST

CUSHION - back rest, standard deluxe

1шт.

31

A24713

CUSHION

- seat (See item 40), standard deluxe

1шт.

32

71-410

SCREW

- (1/4 x 5/8" N.C. rd. hd.), standard deluxe

5шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

34

129-122

NUT,5/16"-24, G5

Standard deluxe 5/16"-24, G5

4шт.

35

A24107

PLATE - seat support, standard deluxe

1шт.

36

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- plate (1/2 x 1" N.F. hex.), standard deluxe

2шт.

37

92-8

LOCK WASHER,1/2"

standard deluxe 1/2"

2шт.

38

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.), standard deluxe

2шт.

40

A23697

COVER

- seat cushion (for worn cushion), standard deluxe

1шт.
