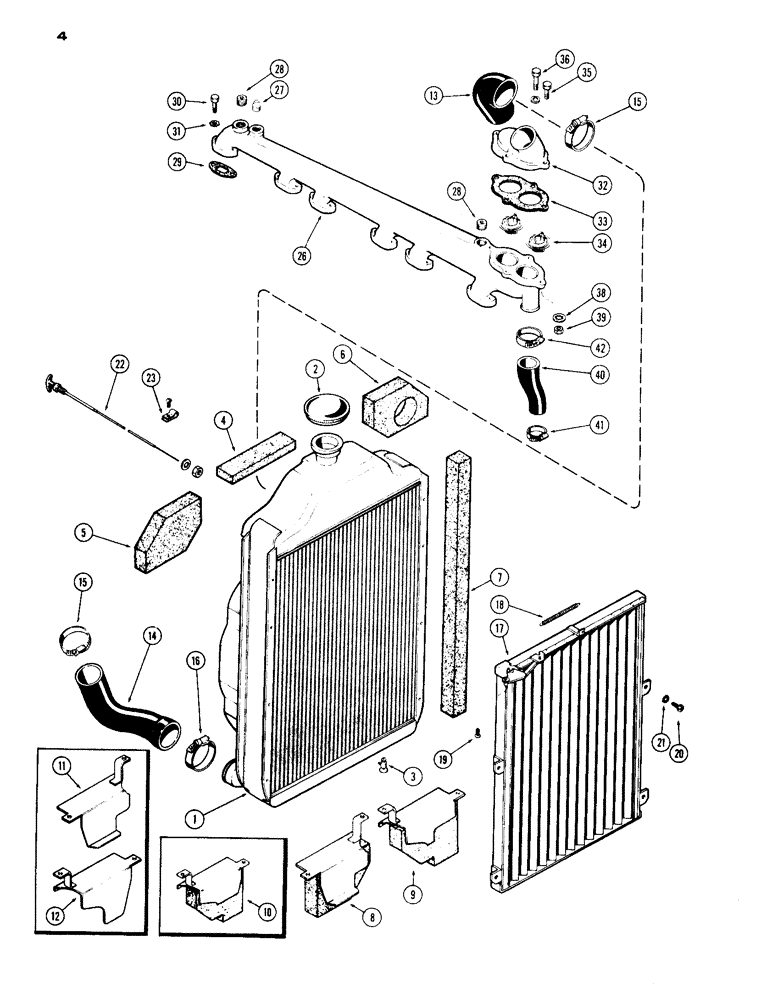

Запчасти Case IH 1030 (004) - RADIATOR AND SHUTTERS (02) - ENGINE

1

A60171

RADIATOR

- (req.14 lb.press.cap)(Replaces A57728 & A57100)

1шт.

1

A60170

RADIATOR

- (req. 14 lb. pressure cap)(replaces A34549, A57847 and A57099)

1шт.

1

A57728

RADIATOR

- (req. 14 lb. pressure cap)(Replaces A57100) (used w/oil cooler)(1st used trac. ser. no. 8310335) (Order 1-A60171 Radiator & 1-A60169 Hose)

1шт.

1

A34549

RADIATOR

- (req. 7 lb. pressure cap) (used prior to trac. ser. no. 8310335) (Order 1-A60170 Radiator, 1-A57157 Cap & 1-A60169 Hose)

1шт.

1

A57848

RADIATOR

- (req. 14 lb. pressure cap)(Replaces A57099) (used for repairs for A34549 radiator) (Order 1-A60170 Radiator & 1-A60169 Hose)

1шт.

2

A57167

CAP

ASSY. - radiator (14 lbs. pressure)(used w/A57728, A57848, A60170 & A60171 red.)(1st used trac. ser. no 8310335) radiator)(used prior to trac. ser. no. 8310335)

1шт.

2

A21389

CAP

ASSY. - radiator (7 lbs. pressure)(used w/A34549

1шт.

3

A23655

VALVE

ASSY. - drain, radiator

1шт.

4

A34564

BAFFLE - rad., top (8" long, foam rubber)

1шт.

5

A34566

BAFFLE - rad., R.H. (foam rubber, solid)

1шт.

6

A34567

BAFFLE - rad,.L.H. (foam rubber, w/hole)

1шт.

7

A34565

BAFFLE - rad., side (28" long, foam rubber)

2шт.

8

A34914

RUBBER WASHER

PLATE ASSY. - rad., lower right hand, w/baffle

1шт.

9

A57133

PLATE ASSY. - rad., lower left hand, w/baffle

1шт.

10

A34915

PLATE ASSY. - rad., lower left hand, w/baffle

1шт.

11

A23340

PLATE - rad., lower right hand, w/out baffle

1шт.

12

A23341

PLATE - rad., lower left hand, w/out baffle

1шт.

13

A60169

HOSE,2.50" ID x 5.18", SAE 20R4 CLASS SC

RADIATOR HOSE, , Thermostat to Radiator (Use w/A60170 & A60171 Radiator) 2.50" ID x 5.18", SAE 20R4 CLASS SC

1шт.

13

A34550

HOSE,2.50" ID x 5.50", SAE 20R4 CLASS D1 OR D2

RADIATOR HOSE, , Thermostat to Radiator 2.50" ID x 5.50", SAE 20R4 CLASS D1 OR D2

1шт.

14

A57353

HOSE,2.00" ID, 2.25" ID x 9.40", SAE 20R4 CLASS D1 OR D2

RADIATOR HOSE, , Radiator to Water Pump (Replaces A34692) (Some Models Were Modifies w/a Steel Tube. Use A57353 for Repairs in all Applicaitons) 2.00" ID, 2.25" ID x 9.40", SAE 20R4 CLASS D1 OR D2

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

3шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

17

A34495

SHUTTER ASSY. - radiator, Includes Ref: 18 and 19

1шт.

18

A21612

SPRING - bellcrank control

1шт.

19

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- control cable (#8-32 x 5/16" rd. hd.)

1шт.

20

175-427

SCREW - shutter (1/4 x 1/25" N.C. truss hd.)

4шт.

21

1936-73

WASHER - (1/4" int./ext. skpt.)

4шт.

22

A9251

CONTROL ASSY. - shutter

1шт.

23

A27337

CLIP

- shutter control cable

1шт.

26

A60072

MANIFOLD ASSY. - (Replaces A32610 & A57755), water, thermostat, Includes Ref: 27 and 28

1шт.

27

221-13

PLUG,Sq Hd, 3/8"-18

- (3/8" P.T. sq. hd.), water manifold and thermostat

1шт.

28

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T., hex. sckt. hd.), water manifold and thermostat

2шт.

29

A27905

GASKET

- water manifold, thermostat

6шт.

30

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Manifold, Water, Thermostat Hex, 5/16"-18 x 1 1/8", G5

12шт.

31

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Water manifold and thermostat Ext Tooth, 5/16"

12шт.

32

A34542

HOUSING - thermostat, water manifold

1шт.

33

A32612

GASKET

- thermostat hsg., water manifold, thermostat

1шт.

34

A57641

THERMOSTAT

ASSY. - (180deg.)(Replaces G45788), water manifold

2шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Housing, water manifold and thermostat Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing, water manifold and thermostat Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- housing (3/8 x 1-1/2" N.C. hex.), water manifold and thermostat

2шт.

38

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water manifold and thermostat Int Tooth, 3/8"

4шт.

39

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), water manifold and thermostat

3шт.

40

A34438

HOSE

- water by-pass, manifold and thermostat

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4"), water manifold and thermostat

1шт.

42

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

water manifold and thermostat #28, 1.31/2.25 Type F Worm

1шт.
