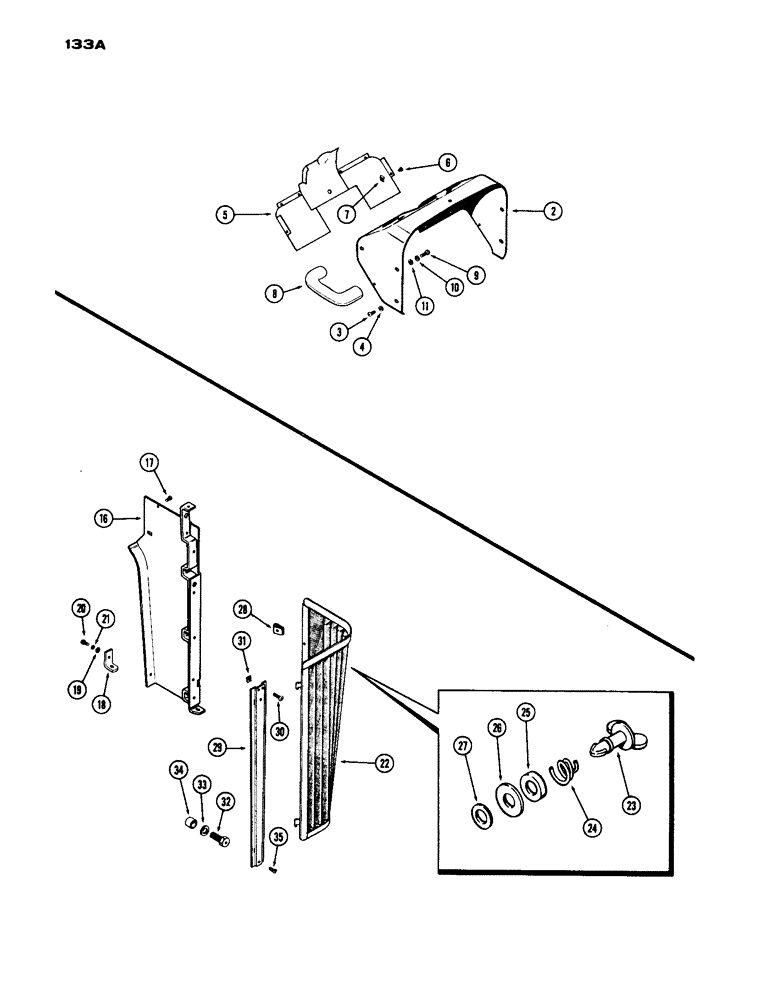

Запчасти Case IH 1030 (133A) - SHEET METAL, CONTINUED (09) - CHASSIS

2

A34501

PANEL - instrument

1шт.

3

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- inst. panel (5/16 X 5/8" N.C. truss hd.)

2шт.

4

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64)

2шт.

5

A33190

COVER - instrument panel

1шт.

6

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- cover (#8 x 1/2" sheet metal)

7шт.

7

131-130

NUT

- (#8 Tinnerman)

8шт.

8

A23725

HANDLE

- mounting

2шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Handle

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

4шт.

16

A34553

PANEL - radiator, left hand side

1шт.

16

A34552

PANEL - radiator, right hand side

1шт.

17

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- panel (1/4 x 1/2" truss hd.)

4шт.

18

A11905

CLIP - side panel, lower rear

2шт.

19

A11737

SPACER - clip (21/32 x 1-1/8 x 20 Ga.)

2шт.

20

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- clip (3/8 x 1/2" N.F. hex.)

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A32836

GRILLE - radiator, right hand side

1шт.

22

A32837

GRILLE - radiator, left hand side

1шт.

23

A32881

STUD

- grille lock & release

4шт.

24

A32882

VALVE SPRING

SPRING - grille stud tension

4шт.

25

A32883

WASHER

SEAT - STUD SPRING

4шт.

26

A34012

WASHER

- stud retaining

4шт.

27

A36041

RETAINER

RING - split, washer retaining

4шт.

28

A36042

CLIP

RECEPTACLE - grille stud

4шт.

29

A23785

PANEL - rad. grille, center

1шт.

30

175-447

SCREW,Phil Truss Hd, 1/4" - 20 x 1"

- ctr. panel (1/4 x 1" N.C. truss hd.)

2шт.

31

193-1006

NUT,Keps, w/LW, 1/4"-20

- (1/4" N.C. Keps)

2шт.

32

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- ctr. panel (5/8 x 1-3/4" N.C. spec.)

1шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

B18239

SPACER,3/4" Pipe x 3/4"

- ctr. panel () 3/4" Pipe x 3/4"

1шт.

35

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- ctr. panel (1/4 x 1/2" N.C., truss hd.)

1шт.
