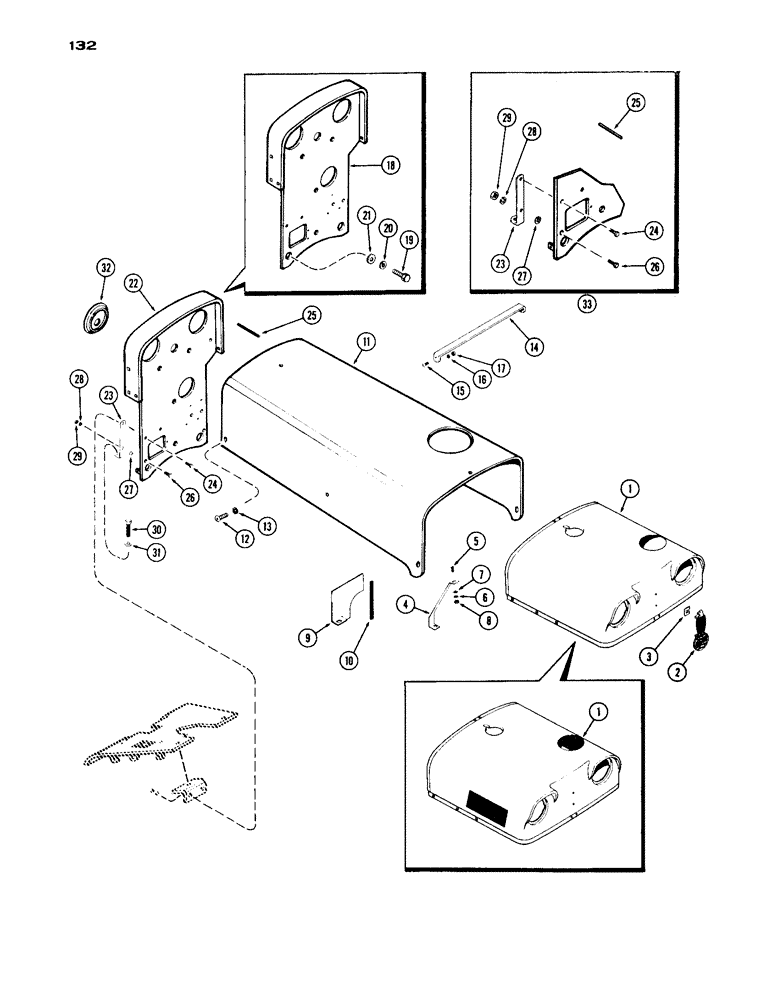

Запчасти Case IH 1030 (132) - SHEET METAL (09) - CHASSIS

1

A57729

CAP - rad. grille w/out screen (1st used trac. S/N 8333362)

1шт.

1

A34568

CAP - radiator grille w/ screen (used prior to trac. S/N 8333362) (Order A57729)

1шт.

131-115

NUT

- retaining (1/4" N.C. Tinnerman) (not illust.)

7шт.

2

A24526

MEDALLION - grille cap (case trade mark)

1шт.

3

131-138

PUSH-ON NUT

- medallion ret. (1/4" push on type)

2шт.

4

A57418

BRACE - grille cap (Replaced A34569)

1шт.

5

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- brace (1/4 x 5/8" N.C., ctsk. hd.)

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

195-20

WASHER

- (5/16 x 7/8 x 1/16")

1шт.

8

25-104

NUT,1/4"-20, G5

1шт.

9

A24682

BAFFLE - engine heat deflector

1шт.

10

A24683

MOULDING - heat baffle

1шт.

11

A34560

HOOD

1шт.

12

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood (5/16 x 5/8" truss hd.)

5шт.

13

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - (5/16" ext. skpf.)

5шт.

14

A23812

BRACE - hood sides

1шт.

15

175-440

SCREW,Phil Truss Hd, 1/4" - 20 x 1/2"

- brace (1/4 x 1/2" N.C., truss hd.)

2шт.

16

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

17

25-104

NUT,1/4"-20, G5

2шт.

18

A32572

PLATE - hood support (used prior to trac. S/N 8335574)

1шт.

19

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hood supt. (1/2 x 3/4" N.C. hex.)

2шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Hood support Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 3/32")

4шт.

22

A57780

PLATE - hood support (1st used trac. S/N 8335574)

1шт.

23

A57782

BRACE

hood support plate, 1st used trac. S/N 8335574

2шт.

Part of P/N A57783 Steering Column Brace Kit

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(1st used trac. S/N 8335574) Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

Part of P/N A57783 Steering Column Brace Kit

1шт.

25

A37940

LOOM

- inj. to tank ret. line (1st used trac. S/N 8335574)

1шт.

Part of P/N A57783 Steering Column Brace Kit

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1st used trac. S/N 8335574 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

Part of P/N A57783 Steering Column Brace Kit

1шт.

27

95-6

WASHER,3/8"

- () (1st used trac. S/N 8335574) 3/8"

2шт.

Part of P/N A57783 Steering Column Brace Kit

1шт.

28

92-6

LOCK WASHER,3/8"

(1st used trac. S/N 8335574) 3/8"

2шт.

Part of P/N A57783 Steering Column Brace Kit

1шт.

29

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.) (1st used trac. S/N 8335574)

2шт.

30

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex. hd.) (1st used trac. S/N 8335574) (Replaces 2 of 13-836 bolts)

2шт.

31

195-2056

WASHER,5/8" x 1" x .065"

- flat, steel (1" O.D. x 9/16" I.D.)

1шт.

32

A24620

PLUG

- hood support plate

2шт.

33

A57783

KIT

brace, steering column, Includes: Ref. 23 - 29

1шт.
