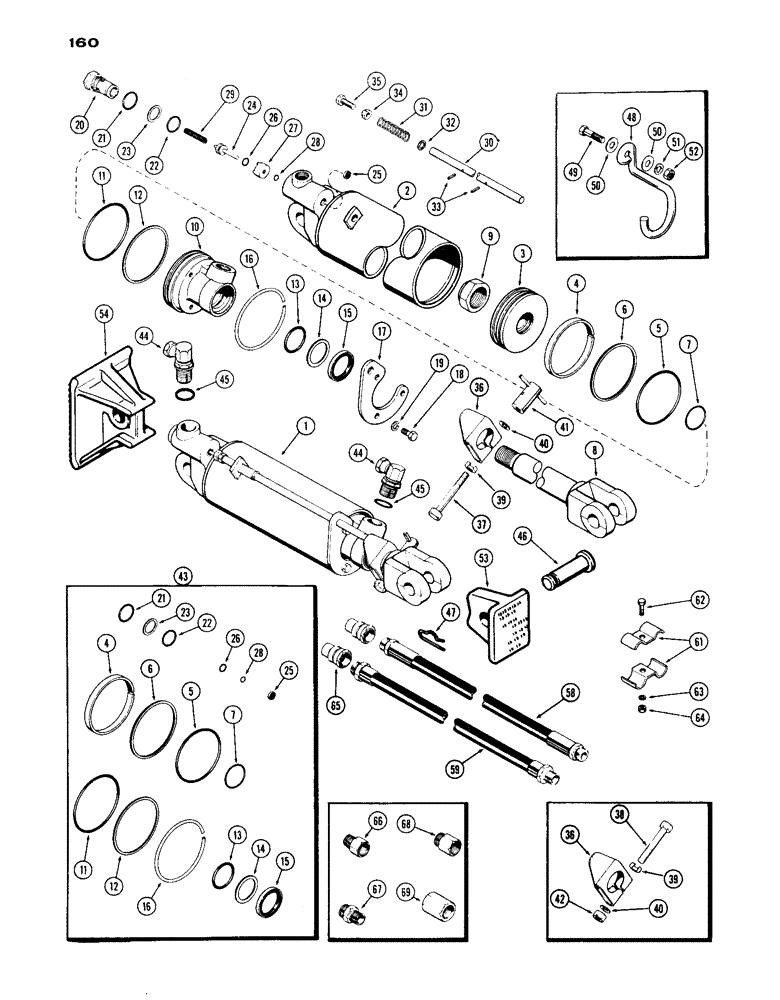

Запчасти Case IH 1030 (160) - 4 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

1

A34923

CYLINDER ASSY. - hydraulic, Includes Ref: 2 - 42

1шт.

2

A41354

BODY - cylinder

1шт.

3

A41357

PISTON - cylinder

1шт.

4

A41174

RING

wear, piston

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

5

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING piston, outer, 3-5/8 x 3-7/8 x 1/8"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

6

A41169

SEAL

RING piston, outer, teflon, 4" I.D. x 5/32"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

7

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

piston, inner, 1-1/2 x 1-3/4 x 1/8"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

8

A41151

ROD - piston

1шт.

9

A41168

LOCK NUT

NUT - piston ret. (1-1/8" - 12 lock nut)

1шт.

10

A41148

BEARING

- cylinder

1шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

bearing, outer, 3-3/4 x 4 x 1/8"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

o-ring back-up

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

13

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

bearing, inner, 1-1/2 x 1-7/8 x 3/16"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

14

T31052

RING

o-ring back-up

1шт.

15

A41785

WIPER SEAL

SEAL oil, bearing, 1-1/2 x 2 x 1/4", Replaces A41173

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

16

A41171

RING, LOCKING

RING lock, bearing

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

17

A41158

PLATE - cylinder end

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

End plate Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

19

92-5

LOCK WASHER,5/16"

3шт.

20

A41351

PLUG - cylinder end & valve plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

plug, 7/8 x 1-1/16 x 3/32"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

plug, 11/16 x 7/8 x 3/32"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

23

A41346

RING

o-ring back-up

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

A41175

WIPER

valve plunger, 3/16 x 1/2 x 1/8"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

26

A41147

X

O-RING plunger, 3/16 x 3/8 x 3/32"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

O-RING valve, 23/64 x 9/16 x 3/32"

1шт.

Part of P/N A41350 Cylinder Seal Kit

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , Push rod 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - push rod (5/16"-18 lock nut)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Push rod adj. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41149

CLAMP

STOP - cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

Stop clamp (See item 38 before ordering) Hex, 5/16"-24 x 2 3/4", G5

1шт.

38

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- lock, stop clamp (3/8 x 2-1/2" N.F. hex.) (See item 37 before ordering)

1шт.

39

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

40

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

41

A41615

LOCK NUT

LOCKNUT - clamp bolt (5/16" N.F.) (used w/114-115 clamp bolt)

1шт.

42

A41167

LOCK NUT

NUT - clamp bolt (3/8" N.F.) (used w/114-219 clamp bolt)

1шт.

43

A41350

SEAL

KIT cylinder, Includes: Ref. 4 - 7, 11 - 16, 21 - 23, 25, 26 and 28

1шт.

44

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90deg. adapter, Includes Ref: 45

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow (3/4 x 15/16 x 3/32")

1шт.

46

A27347

PIN

- hyd. cyl. ret.

2шт.

47

A29054

HAIR PIN COTTER

- internal hair

2шт.

48

A33508

HANGER - hyd. cyl.

1шт.

49

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hanger (3/8 x 1-1/2" N.C. hex.) (used w/o cab)

1шт.

49

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Hanger, used w/cab Hex, 3/8"-16 x 3", G5

1шт.

50

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

51

92-6

LOCK WASHER,3/8"

1шт.

52

25-108

NUT,1/2"-13, G5

- (3/8" N.C. hex.)

1шт.

53

A9163

PAD - hyd. cyl.

1шт.

54

A57188

BASE

- hyd. cyl.

1шт.

58

A20816

HOSE

- (106" long)

1шт.

59

A20817

HOSE

- (118" long)

1шт.

61

A27440

CLAMP

- hose

2шт.

62

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Clamp Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

63

92-5

LOCK WASHER,5/16"

1шт.

64

25-115

NUT,5/16"-24, G5

- (5/16" NF hex)

1шт.

65

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (See Fig. 152)

1шт.

66

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- (7/8"-18 female to 1/2" P.T. male)

1шт.

67

A27359

ADAPTER

- (7/8"-18 male to 1/2" P.T. male)

1шт.

68

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- (7/8"-18 male to 1/2" P.T. female)

1шт.

69

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- (7/8"-18 female to 1/2" P.T. female)

1шт.
