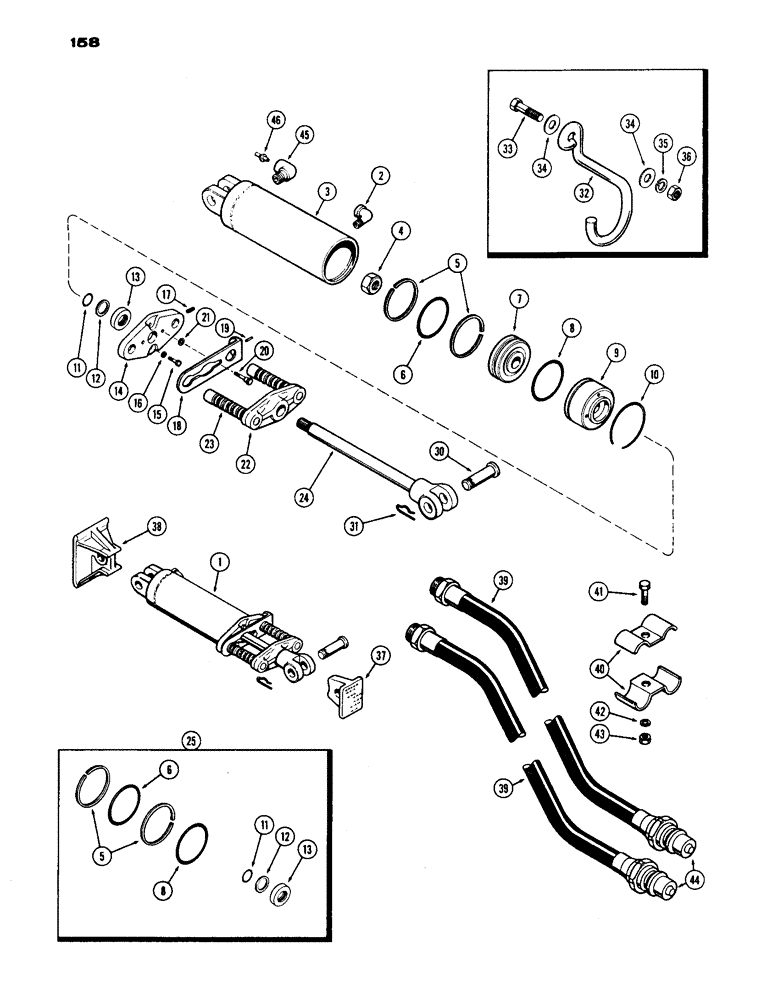

Запчасти Case IH 1030 (158) - 3 1/4 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER, WITH MECHANICAL LIMIT STOP (08) - HYDRAULICS

1

A23557

CYLINDER ASSY. - portable (3-1/4" x 8"), Includes Ref: 2 - 24

1шт.

2

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- hyd. hose (See item 45)

2шт.

3

A31162

BODY - cylinder

1шт.

4

131-369

LOCK NUT,7/8"-14, GA

NUT - piston ret. (7/8" N.F. self-locking)

1шт.

5

A23562

OIL SEAL

RING back-up, piston, o-ring

2шт.

Part of P/N A40758 Repair Kit

1шт.

6

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

piston, 2-7/8 x 3-1/4 x 3/16"

1шт.

Part of P/N A40758 Repair Kit

1шт.

7

A23560

PISTON - cylinder

1шт.

8

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

head, outer, 3 x 3-1/4 x 1/8"

1шт.

Part of P/N A40758 Repair Kit

1шт.

9

A23561

HEAD - cylinder

1шт.

10

A31158

RING, SNAP

RING - snap, head ret.

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

head, inner, 1-1/8 x 1-3/8 x 1/8"

1шт.

Part of P/N A40758 Repair Kit

1шт.

12

A23553

RING

back-up, head, o-ring

1шт.

Part of P/N A40758 Repair Kit

1шт.

13

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL oil, piston rod wiper, 1-1/8 x 1-27/32 x 1/4"

1шт.

Part of P/N A40758 Repair Kit

1шт.

14

A27345

GUIDE - limit stop pin

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- guide ret. (5/16 x 1-1/4" N.C. hex.)

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

A27421

SPRING

- limit stop latch

1шт.

18

A31156

LATCH

ASSY. - limit stop, Includes Ref: 19

1шт.

19

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, , Spring guide 1/4" x 5/8", Slotted

1шт.

20

A31157

SCREW,5/16" - 18 x 1 3/4"

- latch ret.

2шт.

21

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

22

A31154

STOP ASSY. - piston limit, Includes Ref: 23

1шт.

23

A31155

PIN -limit stop

2шт.

24

A30972

ROD - piston

1шт.

25

A40758

SEAL,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

REPAIR KIT, Includes: Ref. 5, 6, 8 and 11 - 13

1шт.

30

A27347

PIN

- hyd. cyl. ret.

2шт.

31

A29054

HAIR PIN COTTER

- internal hair

2шт.

32

A33508

HANGER - hyd. cyl.

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hanger (3/8 x 1-1/2" N.C. hex.) (used w/o cab)

1шт.

33

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Hanger, used w/cab Hex, 3/8"-16 x 3", G5

1шт.

34

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

37

A9163

PAD - hyd. cyl.

1шт.

38

A9164

BASE

- hyd. cyl.

1шт.

39

A20816

HOSE

- (106" long)

2шт.

39

A20817

HOSE

- (118" long)

2шт.

39

A8204

HOSE - (60" long)

2шт.

39

A8205

HOSE - (96" long)

2шт.

40

A27440

CLAMP

- hose

2шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Clamp Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

25-115

NUT,5/16"-24, G5

- (5/16" NF hex)

1шт.

44

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (See Fig. 152)

4шт.

45

A57367

VALVE

REGULATOR ASSY. - hydraulic flow, Includes Ref: 46

1шт.

46

A57369

SPOOL

POPPET - flow check

1шт.
