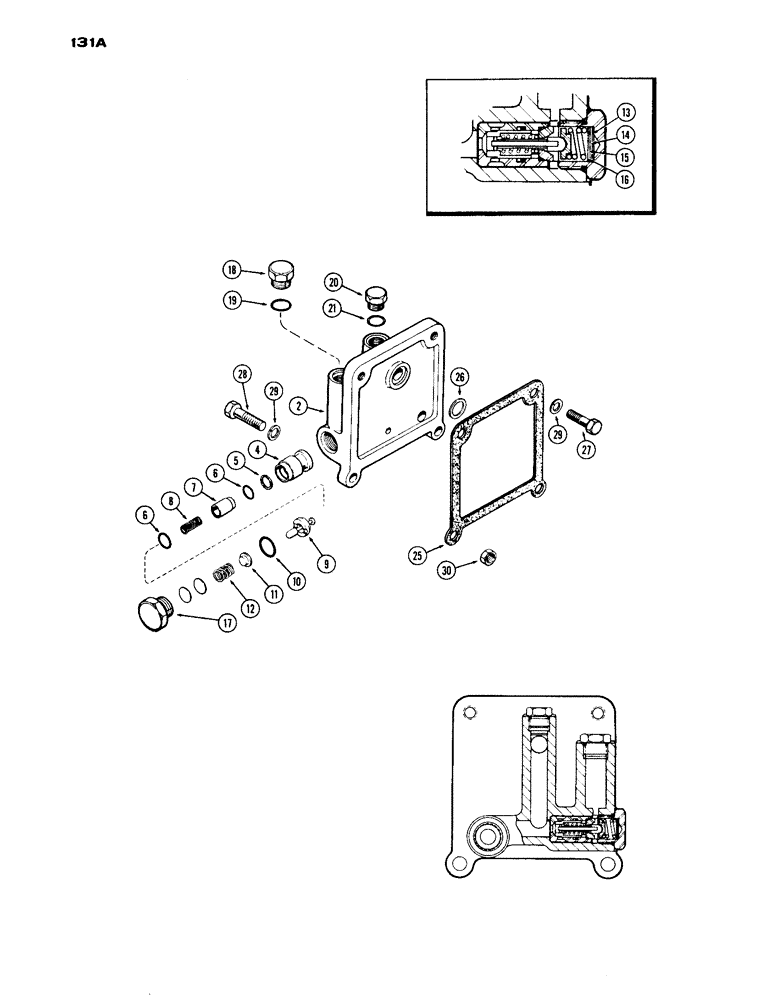

Запчасти Case IH 1030 (131A) - PILOT RELIEF VALVE, USED WITH HITCH AND WITHOUT REMOTES (08) - HYDRAULICS

A34720

VALVE

VALE ASSY. - pilot relief (not illust.), Includes Ref: 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A34720), Includes Ref: 2 - 17

1шт.

A34723

VALVE

ASSY. - pilot relief (not illust.)

1шт.

4

A34486

SLEEVE

- relief valve (Order A57536)

1шт.

5

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

SEAL - sleeve (inner)

1шт.

6

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - sleeve & ret. (5/8 x 3/4 x 1/16")

2шт.

7

A34487

X

PISTON - relief valve (Order A57553)

1шт.

8

A34382

SPRING

- valve, inner (1" free length)

1шт.

9

A34814

PISTON

ASSY. - pilot (Replaces A34489) (Order A57556)

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - plug (3/4 x 59/64 x 1/8")

1шт.

11

A34816

X

RETAINER - valve spring (Replaces A34491) (Order A57558)

1шт.

12

A34492

SPRING

- valve, outer (23/32" free length)

1шт.

13

A34390

SHIM,.0329" Thk

Valve spring .0329" Thk

1шт.

13

A34391

SHIM,.0149" Thk

Valve spring .0149" Thk

1шт.

14

A34694

SHIM,.0201" Thk

Valve spring .0201" Thk

1шт.

15

A34849

SHIM,.0105" Thk

Valve spring .0105" Thk

1шт.

16

A34817

SHIM,.0149" Thk

Valve spring (Blue Japan) .0149" Thk

1шт.

17

A34392

PLUG

- relief valve

1шт.

18

86512512

PLUG,7/8" - 14 ORB

Valve, Incl. Ref: 19 Hex Hd, 7/8"-14 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

20

214389

PLUG,3/4" - 16 ORB

Assy, Valve, Includes Ref. 21 Hex Hd, 3/4"-16 ORB

1шт.

25

A32285

GASKET

- valve to rockshaft hsg.

1шт.

26

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - relief valve

1шт.

27

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
