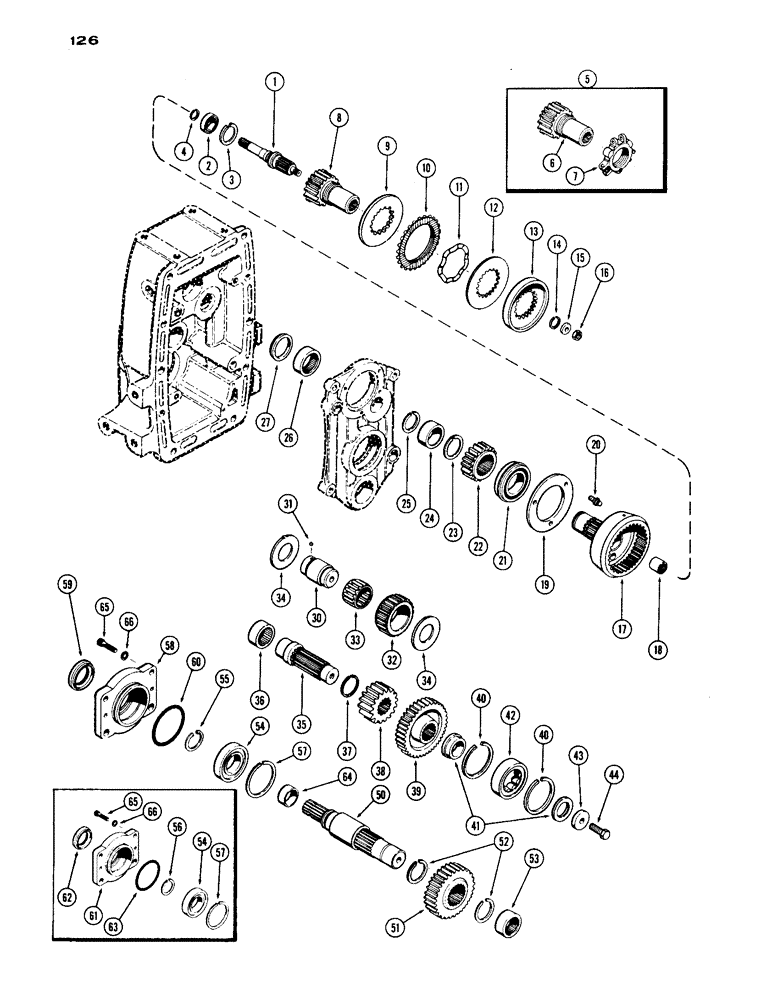

Запчасти Case IH 1030 (126) - P.T.O. DRIVE (06) - POWER TRAIN

1

A32436

SHAFT

- hyd. pump drive

1шт.

2

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum, inner

1шт.

3

A32439

RING

- snap, brg. ret., inner

1шт.

4

A32438

SNAP RING

RING - snap, brg. ret., outer

1шт.

5

A34884

HUB CAP

HUB ASSY. - P.T.O. clutch (1st used trac. S/N 8301781), Includes Ref: 6 and 7

1шт.

6

A34850

HUB

- P.T.O. clutch (w/L.H. threads)

1шт.

7

A34851

JAW

YOKE- P.T.O. clutch adj. (w/L.H. threads)

1шт.

8

A34601

HUB

- P.T.O. clutch (w/R.H. threads) (Trac. w/P.T.O. Order A34884) (Trac. w/out P.T.O. Order A34850) (Used prior to trac. ser. no. 8301781)

1шт.

9

A34570

LARGE PLATE

PLATE - clutch backing

1шт.

10

A33012

PLATE ASSY.

PLATE - clutch, friction (24 ext. teeth)

6шт.

11

A27591

VALVE SPRING

SPRING - clutch plate

5шт.

12

A57170

BRAKE DISC

PLATE - clutch, steel (17 int. teeth) (Replaces A7102)

5шт.

13

A26225

LARGE PLATE

PLATE - clutch pressure

1шт.

14

A32441

RING, SNAP

RING- snap, drive shaft washer stop

1шт.

15

A32450

WASHER

- hyd. pump drive shaft

1шт.

16

131-590

LOCK NUT

NUT - washer ret. (3/8" N.C. flex-loc)

1шт.

17

A34608

DRUM

ASSY. - P.T.O. clutch, Includes Ref: 18

1шт.

18

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, clutch drum, inner

1шт.

19

A59019

RING

- clamp, outer brg. ret. (Replaces A32434)

1шт.

20

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

BOLT - clamp ring (5/16 x 3/4" N.C., 12 Pt. hd.)

3шт.

21

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, clutch drum, outer

1шт.

22

A32435

GEAR

PINION - P.T.O. drive

1шт.

23

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, pinion ret.

1шт.

24

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - outer needle brg.

1шт.

25

A33323

RING

- snap, outer brg. race ret.

1шт.

26

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, clutch drum, outer

1шт.

27

A33007

RING

- oil restrictor

1шт.

30

A32400

SHAFT - upper idler gear

1шт.

31

211-7

BALL,1/4" Dia

- idler shaft 1/4" Dia

1шт.

32

A34136

GEAR

- upper idler (25 ext. teeth)

1шт.

33

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - needle

1шт.

34

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- thrust, idler gear

2шт.

35

A32405

SHAFT

- lower idler & P.T.O. drive

1шт.

36

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, lower idle shaft

1шт.

37

A7339

RING

- snap, driven pinion ret

1шт.

38

A32410

PINION

- driven (30 ext. teeth)

1шт.

39

A32408

GEAR

- lower idle (36 ext. teeth)

1шт.

40

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, brg. ret

2шт.

41

A32409

BEARING

RACE - inner

1шт.

42

A32423

BEARING ASSY

BEARING - outer, w/race

1шт.

43

A57462

WASHER

RETAINER - (17/32 x 1-7/8 x 3/8") (Replaces A32427)

1шт.

44

121-415

BOLT,Hex, 1/2" x 1"

- (1/2 x 1" N.C. hex.)

1шт.

50

A57172

SHAFT

- P.T.O. output (21 spline) (Replaces A32418)

1шт.

51

A32421

GEAR WHEEL

GEAR - P.T.O. drive (31 ext. teeth)

1шт.

52

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, drive gear ret

2шт.

53

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - needle, output shaft, front

1шт.

54

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, output shaft, rear

1шт.

55

A27085

RING

- snap, rear brg. ret., inner (internal, Truarc) (7/64" thick) (used w/A57922 carrier) (1st used trans. ser. no. 2235955)

1шт.

56

A32417

RING, SNAP

RING - snap, rear brg. ret., inner (internal) (1/16" thick) (used w/A32414 carrier) (used prior to trans. ser. no. 2235955)

1шт.

57

A57921

SNAP RING,3.346", Int, #334

Ring, Snap, , rear brg, outer, replaces A32412 3.346", Int, #334

1шт.

58

A57922

CARRIER

ASSY. - output shaft brg. (used w/A57921 snap ring) (See item 55) (1st used trans. ser. no. 2235955)

1шт.

59

A57708

SEAL

- oil (1-3/4 x 2-1/2 x 1/2")

1шт.

60

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O" RING - (3-7/8 x 4-1/8 x 1/8")

1шт.

61

A32414

CARRIER

ASSY. - output shaft brg. (used w/A32417 snap ring) (See item 56) (order 1-A57922 carrier & 1-A57921 snap ring) (used prior to trans. ser. no. 2235955)

1шт.

62

A57708

SEAL

- oil (1-3/4 x 2-1/2 x 1/2") (replaces A32416)

1шт.

63

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O" RING - brg. carrier (3-7/8 x 4-1/8 x 1/8")

1шт.

64

A32419

SLEEVE CYLINDER

SLEEVE - oil seal (1-5/8 x 1-3/4 x 5/8")

1шт.

65

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT - brg. carrier (3/8 x 1" N.C., 12 pt. hd.)

2шт.

66

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.
