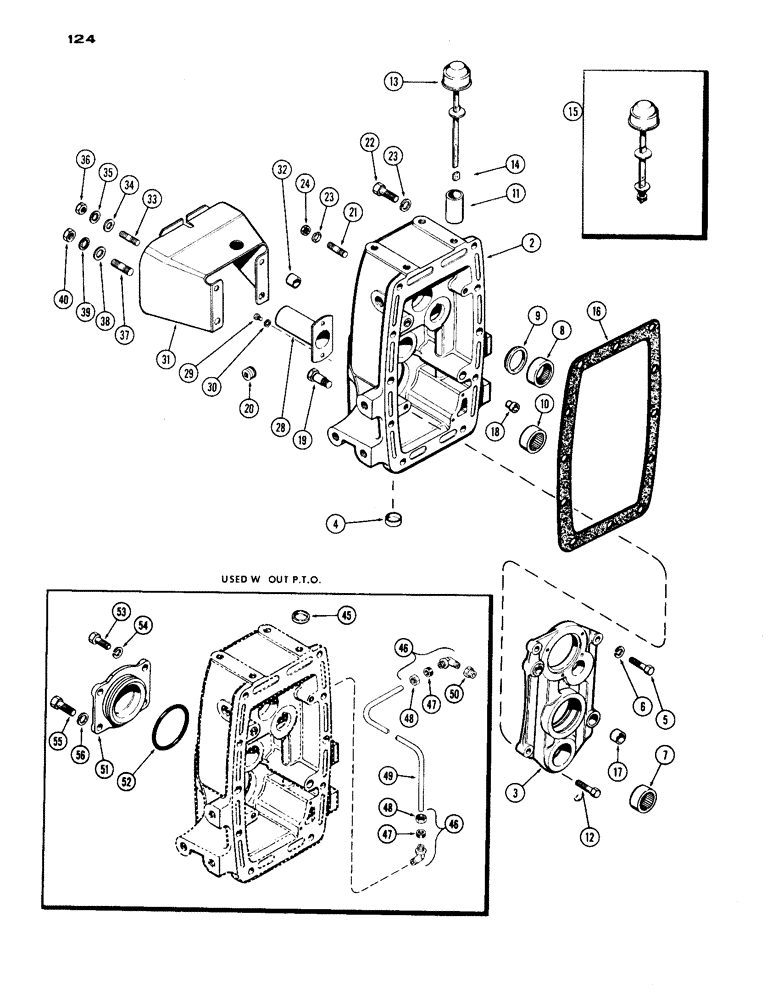

Запчасти Case IH 1030 (124) - P.T.O. HOUSING (06) - POWER TRAIN

A32596

HOUSING ASSY. - P.T.O. (not illust.), Includes Ref: 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. (Order A32596)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. carrier (Order A32596)

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- P.T.O. hsg. (1-17/64" cup type)

1шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - P.T.O. output shaft needle

1шт.

8

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - P.T.O. clutch drum needle

1шт.

9

A33007

RING

- oil restrictor

1шт.

10

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - 2nd idler shaft needle

1шт.

11

A22991

TUBE - oil filler

1шт.

12

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

13

A34807

DIPSTICK

BREATHER ASSY. - w/dipstick (adjustable) (1st used trac. ser. no. 8298029), Includes Ref: 14

1шт.

14

A34806

CLIP

- dipstick indicator

1шт.

15

A33008

X

BREATHER ASSY. - w/dipstick (non-adj., magnetic) (used prior to trac. ser. no. 8298029) (Order A34807)

1шт.

16

A32461

GASKET

- P.T.O. hsg. to trans. case

1шт.

17

A50011

SLEEVE

- brg. carrier dowel (17/32 x 3/4 17/32")

2шт.

18

A32426

BUSHING

SPACER - dowel sleeve

2шт.

19

A32462

BOLT

- dowel sleeve (5/8 x 1-13/16" N.C. spec.)

24шт.

20

221-845

PLUG,Hex Soc, 3/4"-14

- P.T.O. hsg. (3/4" P.T., ctsk. sckt. hd.)

1шт.

21

A29396

STUD

- (5/8" N.F. / N.C. 2-7/8")

2шт.

22

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

24

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

2шт.

28

A32456

GUARD - output shaft

1шт.

29

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Guard Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

A28258

GUARD

SHIELD - output shaft

1шт.

32

B18239

SPACER,3/4" Pipe x 3/4"

- shield (1 x .656 x 3/4")

4шт.

33

A32277

STUD - brg. carrier (1/2" N.C. x 3-1/8")

2шт.

34

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 3/32")

2шт.

35

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

36

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

37

A32276

STUD - brg. carrier (5/8" N.C. x 3-1/2")

2шт.

38

195-41

WASHER,5/8"

2шт.

39

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

40

25-1010

NUT,5/8"-11, G5

2шт.

45

A33045

PLUG

- L.H. side (1-1/2" cup type), without P.T.O.

1шт.

46

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- Flex (1/4" male P.T. x 1/4" O.D.), without P.T.O., Includes Ref: 47 and 48

2шт.

47

222-102

SLEEVE,1/4" Tube

without PTO 1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube), without P.T.O.

1шт.

49

A57352

TUBE

- lubrication, P.T.O. clutch, without P.T.O.

1шт.

50

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducing (3/8 x 1/4"), without P.T.O.

1шт.

51

A33312

COVER - output shaft, without P.T.O.

1шт.

52

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O" RING - cover (3-7/8 x 4-1/8 x 1/8"), without P.T.O.

1шт.

53

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- cover (5/8 x 1-1/2" N.C. hex.), without P.T.O.

2шт.

54

92-8

LOCK WASHER,1/2"

without P.T.O. 1/2"

2шт.

55

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Cover, without P.T.O. Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

56

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , without PTO 5/8"

2шт.
