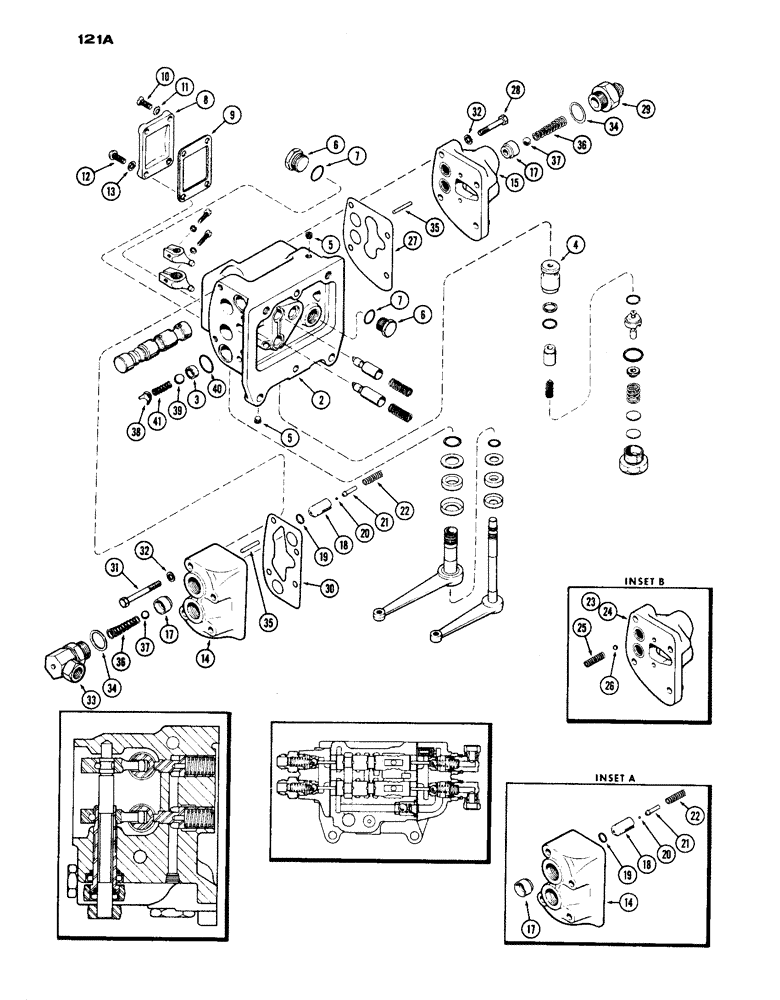

Запчасти Case IH 1030 (121A) - A34699 AUXILIARY VALVE, USED PRIOR TO TRANSMISSION SERIAL NUMBER 2219218 (06) - POWER TRAIN

A34699

VALVE

ASSY. - auxiliary, non-float (not illust.), Includes Ref: 2 - 74

1шт.

2

A34379

VALVE

BODY ASSY. - valve, Includes Ref: 3 - 5

1шт.

3

A30869

SEAT

- ball, check valve (Order A57537)

4шт.

4

A34486

SLEEVE

- relief valve pilot (See A34723) (Fig. 121C) (Order A57536)

1шт.

5

221-1849

PLUG

- body (1/8" P.T., sckt. hd.)

4шт.

6

86512512

PLUG,7/8" - 14 ORB

- Body ports (See A34723) (Fig. 121C) Hex Hd, 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

8

A7353

CAP

- valve body

1шт.

9

A30854

GASKET

- cap (See item 75)

1шт.

Part of P/N A25264 Repair Kit

1шт.

10

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- cap (1/4 x 3/4" N.C. flat hd.)

1шт.

11

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

12

75-412

SCREW,Rd, 1/4" x 3/4"

- cap (1/4 x 3/4" N.C. rd. hd.)

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

A57407

HEAD

ASSY. - aux. valve, R.H. (w/relief valves) (See inset A)

1шт.

15

A57394

HEAD

ASSY. - aux. valve, L.H. (includes item 17 only), Includes Ref: 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

INSERT - valve seat (steel)

2шт.

18

A57398

SEAT

- thermal relief valve (nylon)

2шт.

19

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal relief valve

2шт.

20

211-3

BALL,1/8" Dia

- steel (.) 1/8" Dia

2шт.

21

A57397

GUIDE

- valve ball & spring (nylon)

2шт.

22

A57396

SPRING

- relief valve (black)

2шт.

23

A30886

X

HEAD - L.H., w/out insert (See inset B) (Order A57394)

1шт.

24

A23395

HEAD - R.H., w/out insert (See inset B) (Order A57407)

1шт.

25

A23364

SPRING

- relief valve (plain) (used w/ A30886 & A23395 heads)

2шт.

26

211-7

BALL,1/4" Dia

- relief valve (Used w/ A30886 & A23395 heads) 1/4" Dia

2шт.

27

A30888

GASKET

- left hand head

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

L.H. head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

LH head Hex, 3/8"-16 x 1 3/4", G5

3шт.

29

A32985

FITTING

- left hand head

2шт.

30

A30855

GASKET

- right hand head (See item 75)

1шт.

31

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- R.H. head (3/8 x 2-3/4" N.C. hex.)

4шт.

32

92-6

LOCK WASHER,3/8"

8шт.

33

A30872

90 ELBOW

FITTING ASSY. - right hand head

2шт.

34

A27366

GASKET

- fitting (1-1/32 x 1-1/4 x 1/32" copper)

4шт.

35

A30876

SPOOL

- auxiliary valve (Order A57559)

4шт.

36

A30877

SPRING

- return, ball check

4шт.

37

211-13

BALL,1/2" Dia

- check 1/2" Dia

4шт.

38

A27364

GUIDE

- spring check valve

4шт.

39

211-15

BALL,5/8" Dia

- check valve (.) 5/8" Dia

4шт.

40

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - check valve (7/8 X 1-1/8 x 1/8")

4шт.

41

A27452

SPRING

- check, outlet

4шт.
