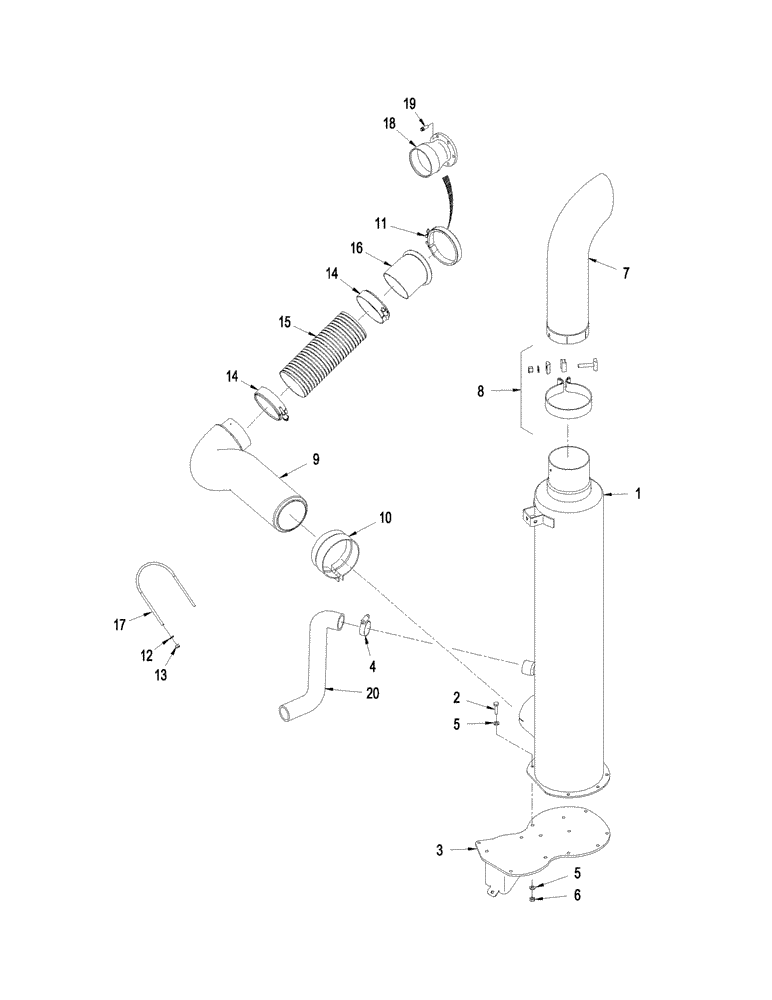

Запчасти Case IH STX530 (02-18[01]) - EXHAUST SYSTEM - QUADTRAC TRACTOR, 12" MUFFLER, STX & STEIGER 530 (02) - ENGINE

1

87630499

MUFFLER

with Spark Arrestor, 12"

1шт.

1

87614022

MUFFLER

without Spark Arrestor, 12"

1шт.

2

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

5шт.

3

87618507

PLATE

Muffler Mounting

1шт.

4

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

7шт.

6

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

7

87430635

ELBOW

Muffler, Inc. 8

1шт.

8

87430634

CLAMP,159.5mm ID

Muffler

1шт.

9

87618142

EXHAUST SYSTEM PIPE

Doublewall

1шт.

10

357686A1

ASSEMBLY

Exhaust, 6"

1шт.

11

31-1316

MOUNTING CLIP

1шт.

STX530

1шт.

STEIGER 530

1шт.

12

495-11034

WASHER,5/16", SAE

2шт.

13

231-1445

NUT,5/16"-18, GB

2шт.

14

87406903

COLLAR CLAMP

2шт.

15

87376393

EXHAUST MANIFOLD,5.03 mm ID x 5.27 mm OD x 13 mm L

Flexible

1шт.

16

87319225

FLANGE

Flanged

1шт.

17

44-13T1

U-BOLT,5/16" - 18 x 7.29", Class 8.8

BOLT "U" Exhaust Intake Tube

1шт.

18

87327027

ELBOW

Exhaust

1шт.

19

868-10025

12 PT SCREW,M10 x 25mm, Cl 12.9

6шт.

20

87630063

HOSE

Aspirator

1шт.
