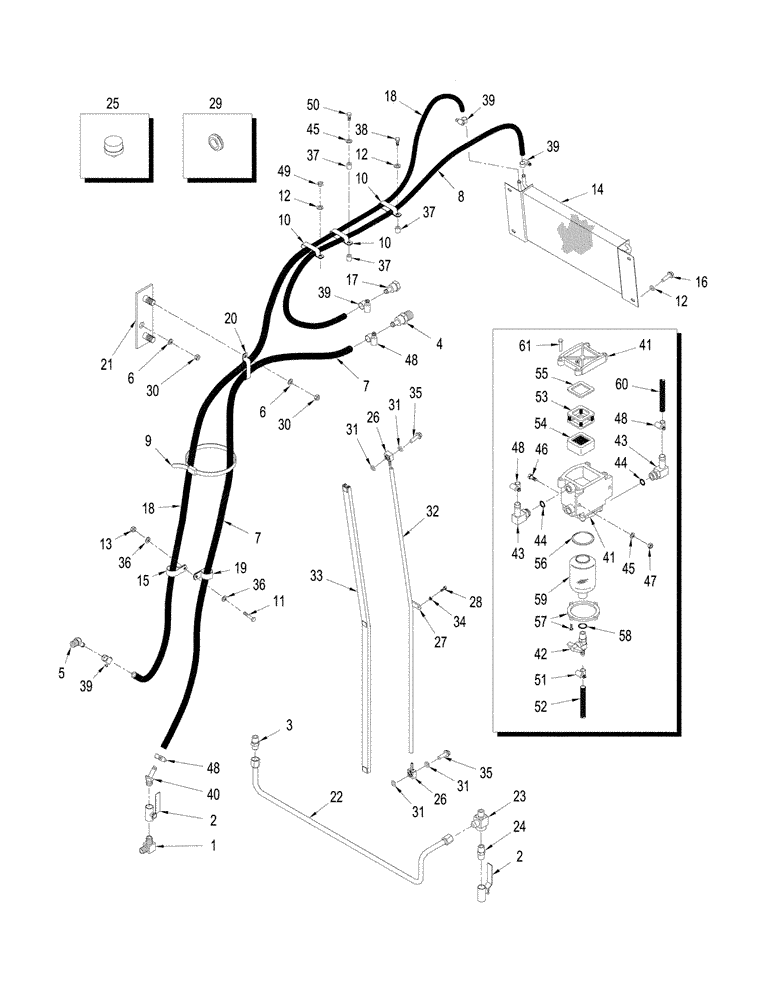

Запчасти Case IH STX500 (03-03) - FUEL LINES (03) - FUEL SYSTEM

1

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

2

31-1267

SHUT-OFF VALVE

2шт.

3

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

4

31-2976

FITTING

7/8 fem sw x 31/64 barb, Socketless

1шт.

5

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

7

296077A1

HOSE

3657 mm (144 in), Supply, Cut From 50-3418X1

1шт.

8

372913A1

FUEL HOSE,12.70 mm ID

FUEL HOSE - 2387 mm (94 in), Hot Return, Cut from 32-080T1 12.70 mm ID

1шт.

9

327144A1

STRAP,328mm L

1шт.

10

L101181

CLAMP,0.75" D Clamping pipes x 2

4шт.

11

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

14

87332463

COOLER

Fuel

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

17

31-3129

ADAPTER

7/8

1шт.

18

310715A1

HOSE

5600 mm (221 in), Cold Return, Cut From 32-080T1

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

20

R54363

CLAMP

4шт.

21

324089A1

PLATE ASSY.

2шт.

22

335041A2

LINE

Crossover

1шт.

23

31-1000

TEE

1/2 PT x 1/2 PT x 7/8 fl

1шт.

24

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

25

90-7732T1

BREATHER

1шт.

26

352767A1

FITTING

2шт.

27

402800A1

BRACKET

1шт.

28

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

29

248-2178

GROMMET,3/4" ID x 1 1/16" Groove Dia

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

31

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

32

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Gauge, Cut From 337242A1

1шт.

33

349868A1

CHANNEL

Sight Gauge

1шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

35

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

36

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

37

A27328

SPACER

4шт.

38

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

39

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

40

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

87409378

FUEL FILTER

Strainer, Inc. 41, 42, 53 - 59

1шт.

41

NSS

NOT SOLD SEPARAT

Housing, Filter

1шт.

42

369844A1

DRAINCOCK/TAP SUPPLY

Valve

1шт.

43

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl 44

2шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

46

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

47

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

48

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

49

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

50

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

1шт.

51

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

52

32-204

HOSE

Drain

1шт.

53

87333679

SPRING

Filter Frame

1шт.

54

87409379

FUEL FILTER,30 Micron

Fuel, 30 Micron

1шт.

55

87333676

GASKET

Fuel Strainer

1шт.

56

87331930

GASKET

1шт.

57

87333671

RING

Retainer

1шт.

58

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

59

87409380

FILTER BOWL

Bowl, Clear

1шт.

60

87313728

FUEL HOSE

485 mm (19")

1шт.

61

87608457

SPECIAL BOLT

4шт.
