Запчасти Case IH STX500 (09-45) - AIR CONDITIONING SYSTEM (09) - CHASSIS

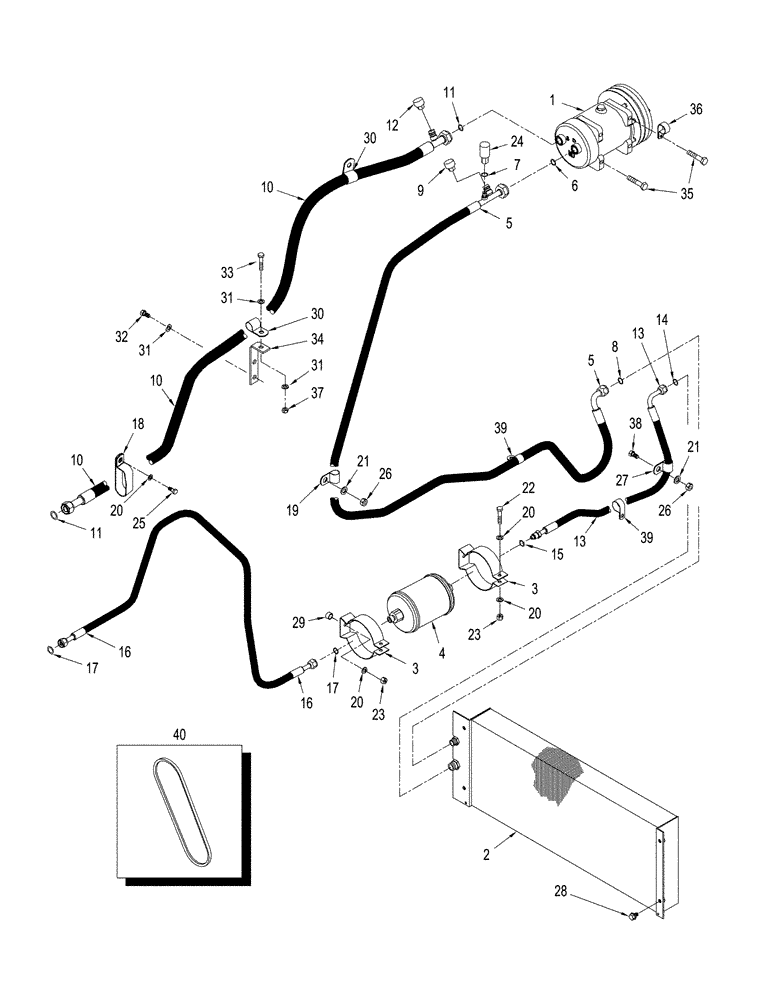

Схема запчастей Case IH STX500 - (09-45) - AIR CONDITIONING SYSTEM (09) - CHASSIS
31
17
23
29
9
5
3
12
17
27
4
14
28
40
5
24
10
15
34
22
30
20
38
31
2
3
31
32
33
26
13
30
35
6
16
8
11
18
36
10
11
39
20
39
23
20
20
13
25
21
21
10
19
26
37
1
16
7

Артикул

Название

Примечание

Количество

1

86993463

AIRCOND. COMPRESSOR

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, 6 In. OD Pulley For 8 Rib Poly V Belt

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

87315600

CONDENSER

1шт.

3

433723A1

CLAMP

2шт.

4

295006A1

RECEIVER-DRYER

134a

1шт.

5

434240A1

HOSE

2200 mm (87 in), Inc. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

122554A1

CAP

1шт.

10

390960A1

HOSE

2950 mm (116 in), Inc. 11, 12

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

12

122553A1

CAP

1шт.

13

434241A1

A/C HOSE

2100 mm (83 in), Inc. 14, 15

1шт.

14

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

15

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

16

308750A3

A/C HOSE

2200 mm (87 in), Inc. 17

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

18

R54363

CLAMP

2шт.

19

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

24

284273A2

SWITCH, A/C HIGH PRE

1шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

27

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

4шт.

28

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

29

432444A1

SPACER

2шт.

30

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

31

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

32

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

33

613-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

34

391460A1

BRACKET

1шт.

35

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

36

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

37

829-1412

NUT,M12, Cl 10.9

1шт.

38

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

39

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

P-Type

2шт.

40

87437226

V-BELT,3.56 mm W x 1589.80 mm L, 5 Ribs

Accessary Drive, A/C & Alternator

1шт.

Выбрано товаров: 43
