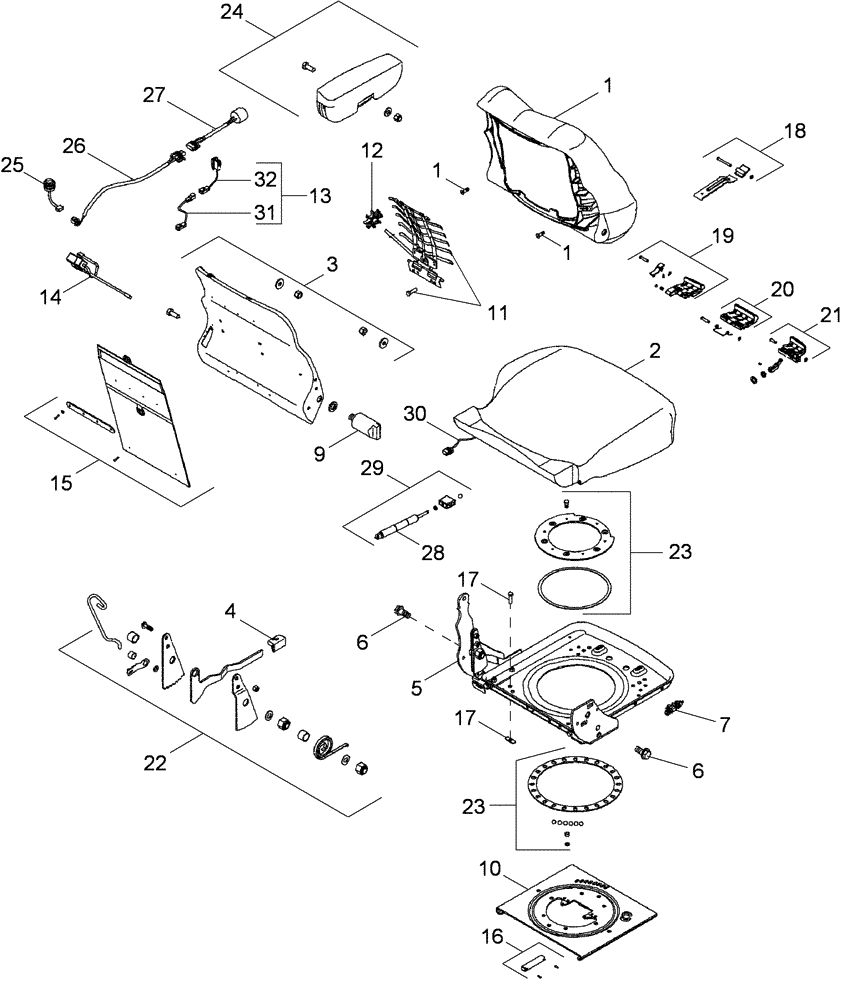

Запчасти Case IH STX500 (09-27[01]) - SEAT - CUSHION ASSEMBLY, ASN JEE0106701 (09) - CHASSIS

87347872

SEAT ASSY.

Cloth, Without Heat, Inc. 3, 5

1шт.

87347873

SEAT BACK

Cloth, Heated, Inc. 3, 5, Serial Range: JEE0106701-JEE0108962

1шт.

360321A2

CUSHION ASSY.

Leather, Heated, Inc. 1 - 14, 16 - 23, 24 - 27

1шт.

1

373476A1

CUSHION

Backrest, Cloth, without Heat

1шт.

1

87347895

SEAT BACK

Backrest, Cloth, Heated, Serial Range: JEE0106701-JEE0108962

1шт.

1

87395385

CUSHION

Backrest, Cloth, Heated, Start Serial: JEE0108962

1шт.

1

87407042

BACKREST

Leather

1шт.

2

87347893

SEAT CUSHION

Cloth, Without Heat, Inc. 30

1шт.

2

87347894

SEAT CUSHION

Cloth, Heated, Inc. 30, Serial Range: JEE0106701-JEE0108962

1шт.

2

87395384

SEAT CUSHION

Cloth, Heated

1шт.

2

87407043

CUSHION ASSY.

Leather, Heated

1шт.

3

86994155

ASSEMBLY

Backrest Panel

1шт.

4

87416475

KNOB

Recline Control

1шт.

5

NSS

NOT SOLD SEPARAT

Pan, Seat

1шт.

6

830-1110

NUT,Weld, M10

M12

1шт.

7

1981852C3

SWITCH

Air Control

1шт.

9

87396230

BUSHING

Console Mount

1шт.

10

87347956

SERVICE KIT

Swivel

1шт.

11

87308130

SEAT BACK ADJUST DEV

Lumbar, Inc. 12

1шт.

12

87037462

SEAT BACK ADJUST DEV

Lumbar Knob

1шт.

13

87347958

SERVICE KIT

Operator Ride Control, Positive Response Seat, Inc. 31, 32

1шт.

14

87407046

HARNESS

Temperature, Semi-Active Seat, Serial Range: JEE0106701-JEE0108962

1шт.

14

84239657

CONTROLLER

Heater, Start Serial: JEE0108962

1шт.

15

87432355

POCKET

Backrest, Cloth Seat, Serial Range: JEE0106701-JEE0108962

1шт.

15

86994172

SERVICE KIT

Backrest Manual Holder, Start Serial: JEE0108962

1шт.

16

302016A1

PACKAGE,SERVICE

Slide Pucks

1шт.

17

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

18

87347934

LATCH

Seat Slide

1шт.

19

87347942

SERVICE KIT

Swivel Control

1шт.

20

87347941

SERVICE KIT

Fore / Aft Slide Control

1шт.

21

373466A1

KIT

Height Control

1шт.

22

86994165

SEAT ACCESSORY

Recliner Control

1шт.

23

87347936

SERVICE KIT

Swivel

1шт.

24

87347939

SERVICE KIT

Armrest, Left-Hand, Cloth, without Heat

1шт.

24

86994250

ARMREST

Armrest, Left-Hand, Cloth, Heated, Serial Range: JEE0106701-JEE0108962

1шт.

24

87397615

ARMREST

Left-Hand, Cloth, Heated, Start Serial: JEE0108962

1шт.

24

373468A1

PACKAGE,SERVICE

Armrest, Left-Hand, Leather

1шт.

25

87407048

SWITCH

Heater, Semi-Active Seat, Round Rocker, Serial Range: JEE0106701-JEE0108962

1шт.

25

87395388

SWITCH

Heater, Start Serial: JEE018962

1шт.

26

381152A1

HARNESS

Heater, Center Section, Serial Range: JEE0106701-JEE0108962

1шт.

26

87395390

HARNESS

Heater, Start Serial: JEE0108962

1шт.

27

381201A1

HARNESS

Heater, Resistor

1шт.

28

302004A2

GAS STRUT

Cylinder

1шт.

29

87331408

SERVICE KIT

Recliner Block, Inc. 4

1шт.

30

NSS

NOT SOLD SEPARAT

Switch, Operators Presence, Serial Range: JEE0106701-JEE0108962

1шт.

30

87300397

SWITCH

Operators Presence, Start Serial: JEE0108962

1шт.

31

87626130

HARNESS

Operator Ride Control, Positive Response Suspension, From Switch To Dampener Control Box

1шт.

32

87611650

SWITCH

Operator Ride Control, Positive Response Suspension

1шт.
