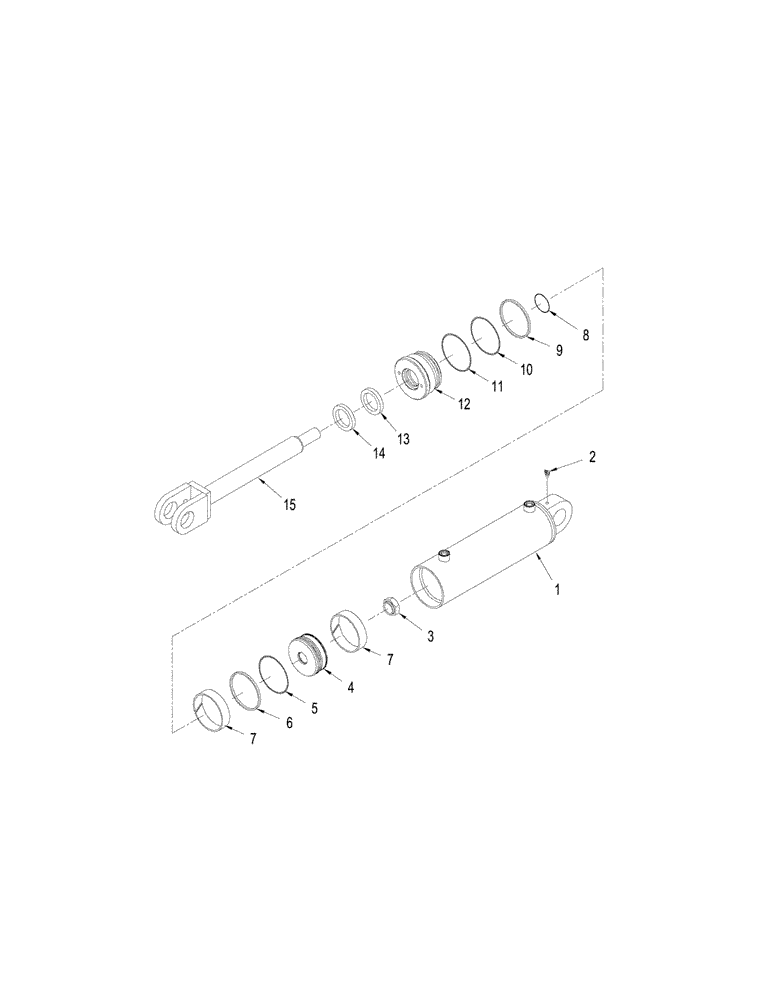

Запчасти Case IH STX500 (08-42) - CYLINDER ASSY - THREE POINT HITCH (08) - HYDRAULICS

403206A1

CYLINDER ASSY.

Three Point Hitch, Lift, Inc. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Barrel

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Grease

1шт.

3

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

4

388150A1

JACK PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

388152A1

CYLINDER END CAP

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

387530A1

PISTON ROD

1шт.

388153A1

SEAL KIT

Inc. 5 - 11, 13, 14

1шт.
