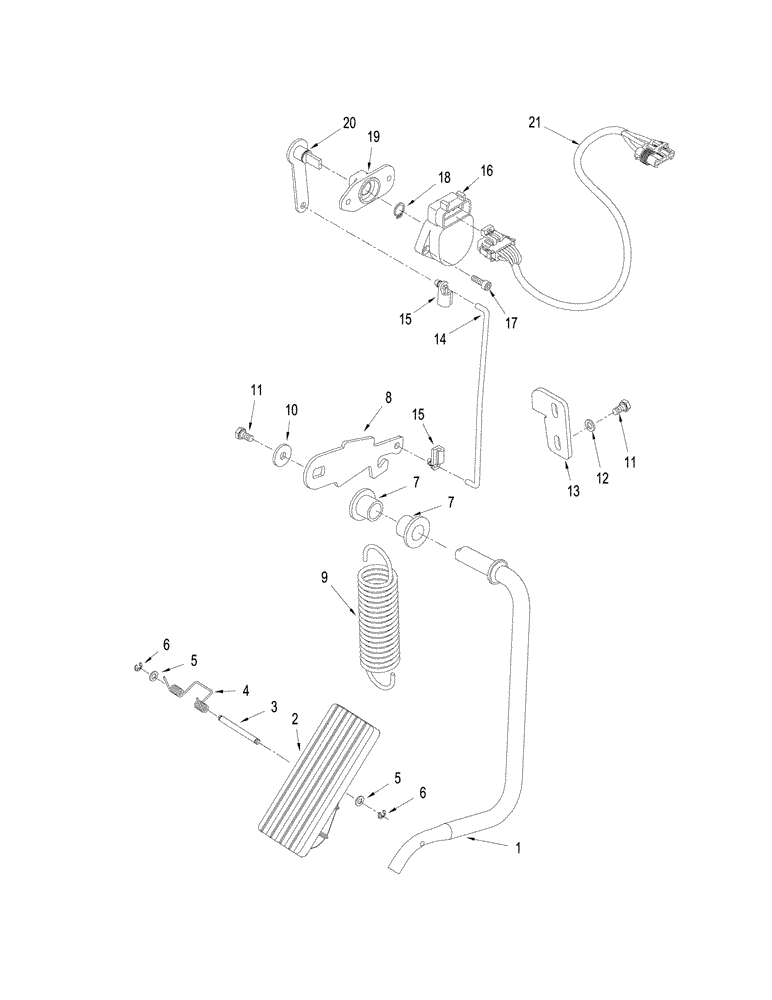

Запчасти Case IH STX480 (03-02) - THROTTLE - DECELARATOR CONTROL, ASN Z6F105037 (03) - FUEL SYSTEM

1

328353A2

ROD

Decelerator

1шт.

2

298842A1

SKID/SHOE

Foot Throttle

1шт.

3

255291A1

PIN,5mm OD x 56mm L

Foot Throttle

1шт.

4

256776A1

SPRING

Foot Throttle Control

1шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

6

800-435

CIRCLIP,M5

2шт.

7

300891A1

FLANGED BEARING

2шт.

8

248844A1

LEVER

Decel

1шт.

9

278211A1

SPRING

Extension

1шт.

10

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

11

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

281115A1

BRACKET

Decel Stop

1шт.

14

281125A1

ROD

Potentiometer Connecting

1шт.

15

60-2404T1

RETAINER

Plastic Rod

2шт.

16

259012A1

POTENTIOMETER,2500 Ohm

Throttle Control

1шт.

17

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

18

800-1112

SNAP RING,M12, Ext

1шт.

19

258524A2

BUSHING

1шт.

20

313273A2

PIN

1шт.

21

87545500

HARNESS

Decelerator Control

1шт.

For Decelerator Switch, See Figure 09-21

1шт.
