Запчасти Case IH STX480 (03-01) - THROTTLE (03) - FUEL SYSTEM

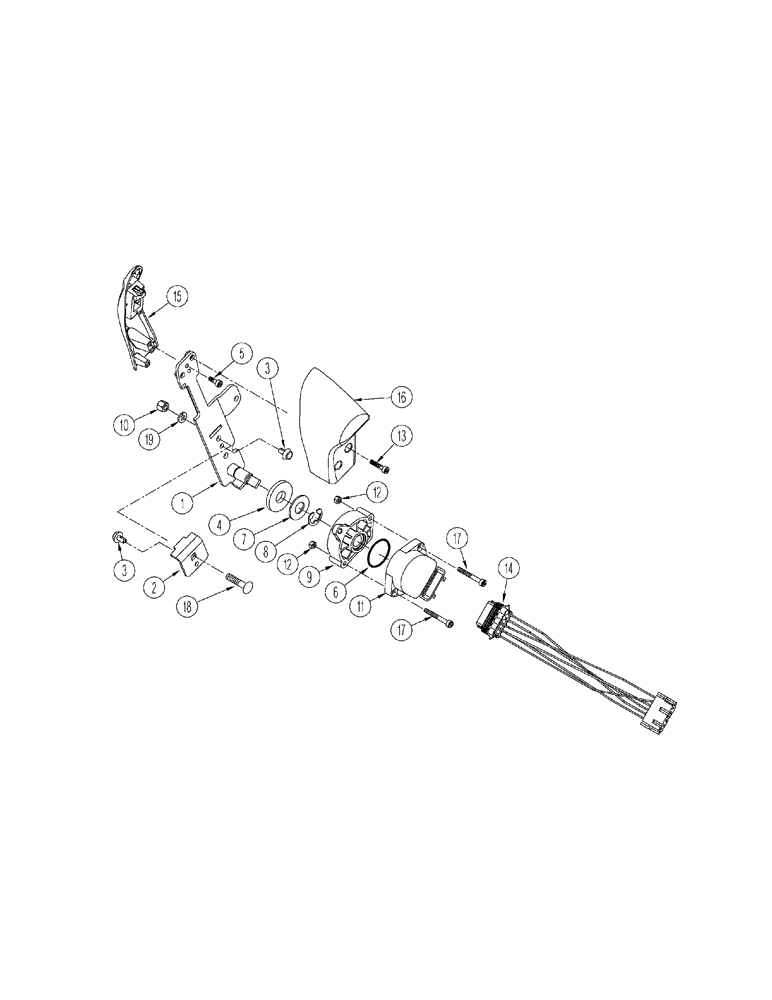

Схема запчастей Case IH STX480 - (03-01) - THROTTLE (03) - FUEL SYSTEM
12
16
3
13
2
1
8
7
6
19
15
17
18
14
4
11
5
17
10
9
12
3

Артикул

Название

Примечание

Количество

1

402797A1

BRACKET

Throttle Bracket

1шт.

With Advanced Farming Systems (AFS)

1шт.

1

367607A1

BRACKET

Throttle Bracket

1шт.

With Power Shift Transmission

1шт.

2

258734A2

BRACKET

Throttle Friction Device

1шт.

3

259040A1

INSERT

Friction Device

2шт.

4

237486A1

WASHER

2шт.

5

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

M4 x 16

3шт.

6

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

7

495-81022

WASHER,17/32" x 1 1/8" x .060"

1шт.

8

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

9

239491A1

BUSHING

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

259012A1

POTENTIOMETER,2500 Ohm

Throttle Control

1шт.

With Power Shift Transmission

1шт.

11

402751A1

POTENTIOMETER,2500 Ohm

Throttle Control

1шт.

With Manual Shift Transmission

1шт.

12

832-46404

NUT,M4 x .7, Cl 8

2шт.

13

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

2шт.

14

276352A1

HARNESS

Electronic Throttle

1шт.

Manual Shift Transmission with ARU

1шт.

With Power Shift Transmission

1шт.

15

87622401

GRIP

Throttle Face Plate

1шт.

16

293388A2

GRIP

Throttle

1шт.

Manual Shift Transmission with ARU

1шт.

16

388705A1

GRIP

Throttle

1шт.

16

388864A1

GRIP

Throttle, Leather

1шт.

17

864-4035

HEX SOC SCREW,M4 x 35mm, Cl 8.8

2шт.

18

811-6030

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 30mm, Cl 8.8

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

Выбрано товаров: 30
