Запчасти Case IH STX480 (09-44) - REAR FRAME, QUADTRAC TRACTOR (09) - CHASSIS

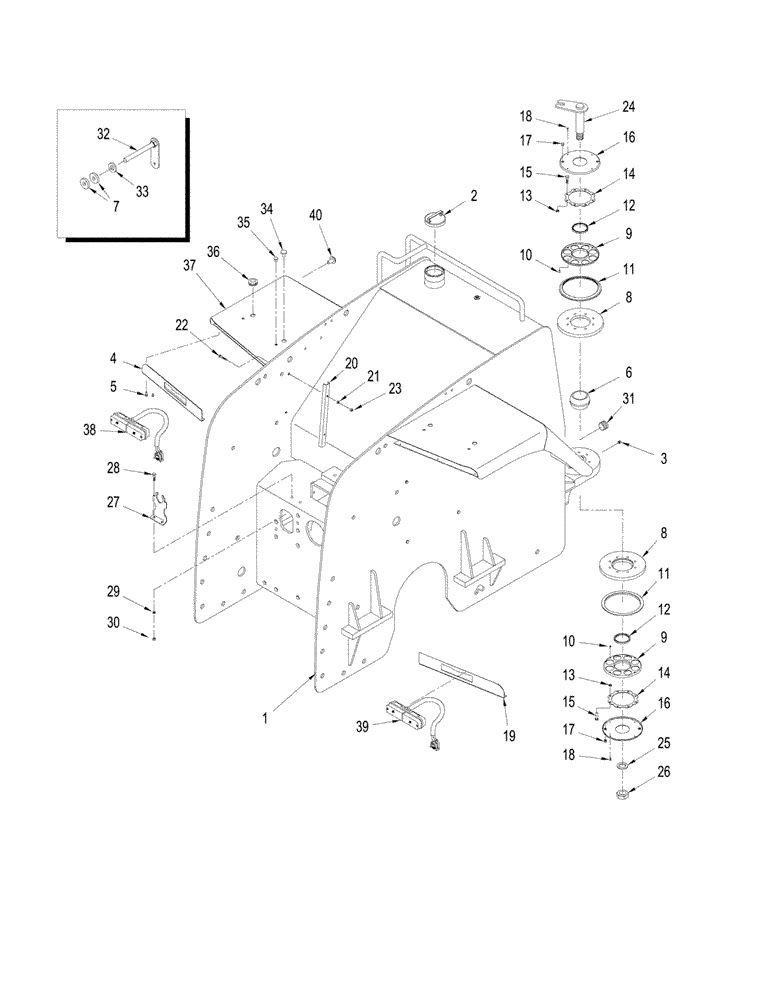

Схема запчастей Case IH STX480 - (09-44) - REAR FRAME, QUADTRAC TRACTOR (09) - CHASSIS
2
13
16
15
17
10
29
1
19
15
14
17
35
33
22
10
23
30
11
31
8
20
3
25
13
38
34
28
18
14
32
40
8
26
11
4
39
18
12
7
5
16
24
37
12
21
27
9
36
9
6

Артикул

Название

Примечание

Количество

1

87423680

FRAME

Rear

1шт.

2

433479A1

CAP

Fuel, Serial Range: -Z7F105335

1шт.

2

87555106

LOCKABLE FUEL CAP

, Start Serial: Z7F105335

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

4

418115A1

COVER

Left-Hand

1шт.

5

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

6

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

1шт.

7

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

8

330032A1

COVER

2шт.

433481A1

BEARING ASSY

Inc. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Housing

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer

8шт.

11

433478A1

SEAL

2шт.

12

D95148

WIPER SEAL

2шт.

13

432444A1

SPACER

16шт.

14

430250A1

RETAINER

2шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

16

433480A2

COVER

2шт.

17

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

8шт.

18

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

4шт.

19

418116A1

COVER

Right-Hand

1шт.

20

311376A2

CHANNEL

Wire Guard

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

87590638

PIN,50.8mm OD x 340mm L

1шт.

25

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

3/4" x 2-3/4" x 1/4"

1шт.

26

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

27

402769A2

PLATE

1шт.

28

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

31

384163A1

PLASTIC PLUG

1шт.

32

406390A1

HANDLE

Mounting, Articulatin Lock

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

34

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

35

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

36

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

37

313569A2

REAR FENDER

LH

1шт.

38

429385A1

LAMP, WORK

LIGHT, WORK LH, See Figure: 04-24

1шт.

39

417788A1

LAMP, WORK

LIGHT, WORK RH, See Figure: 04-24

1шт.

40

353-403

PLUG,Dome, .437" hole, Nylon

4шт.

Выбрано товаров: 42
