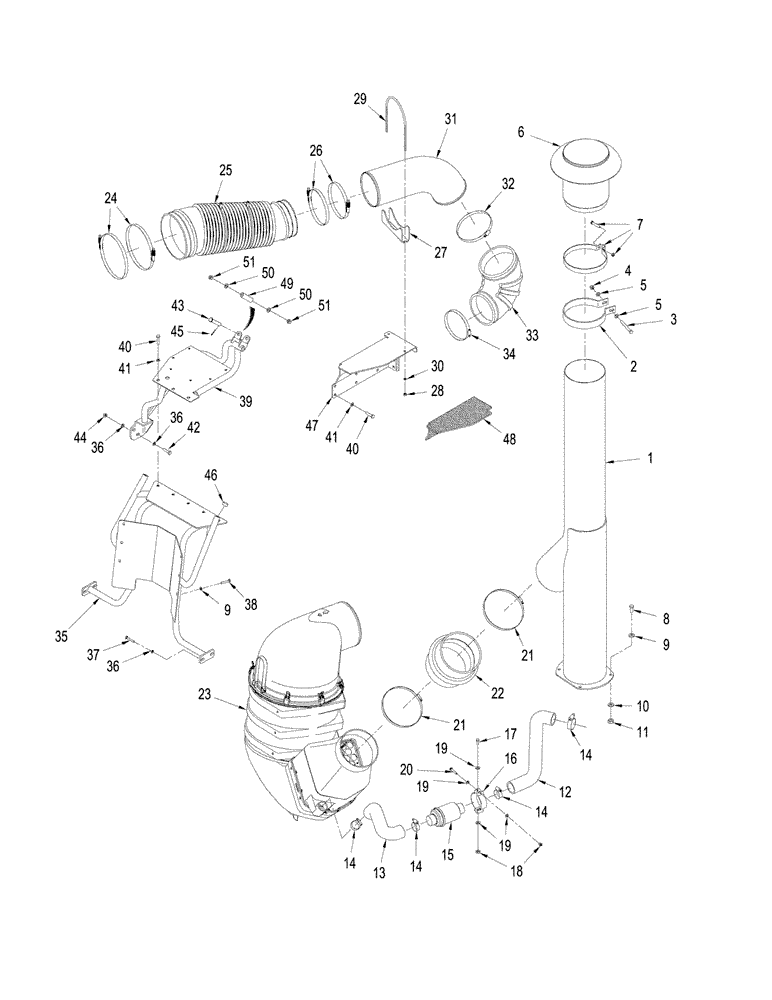

Запчасти Case IH STX480 (02-08) - AIR INDUCTION SYSTEM, STX & STEIGER 480 / 530 (02) - ENGINE

1

87673446

AIR INTAKE TUBE

1шт.

For Decelerator Switch, See Figure 09-21

1шт.

1

87673448

AIR INTAKE TUBE

1шт.

Wheel Tractor

1шт.

2

87644727

CLAMP

Muffler

1шт.

3

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

87443716

PRESCREENER ASSY.

Air Intake, Inc. 7

1шт.

7

87443800

COLLAR CLAMP

Intake Pre-Screen

1шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

11

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

12

87630063

HOSE

Aspirator, Check, Serial Range: Valve-Muffler

1шт.

13

87304275

HOSE,50.80 mm ID x 206.60 mm

Aspirator, Air Cleaner to Check Valve

1шт.

For Decelerator Switch, See Figure 09-21

1шт.

13

87304243

HOSE,50.80 mm ID x 375.0 mm

Aspirator, Air Cleaner to Check Valve

1шт.

Wheel Tractor

1шт.

14

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

15

87443913

VALVE

Check

1шт.

16

87300581

CLAMP

Check Valve

1шт.

17

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

20

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

21

214-32144

HOSE CLAMP,8-1/4" - 9-1/8", HD Worm, W/ Liner

2шт.

22

87443802

HOSE

Connector, 203mm (8")

1шт.

23

87443705

AIR CLEANER

See Figure: 02-09

1шт.

24

87443916

SPECIAL CLAMP,8.75" - 9.62", Worm Gear

2шт.

25

87443148

AIR DUCT

Flexible Intake

1шт.

26

87437258

CLAMP,6.75" - 7.62", Worm Gear

2шт.

27

87309822

BRACKET, SUPPORTING

Intake

1шт.

28

231-1445

NUT,5/16"-18, GB

2шт.

29

87310919

U-BOLT

1шт.

30

495-11034

WASHER,5/16", SAE

2шт.

31

87690960

AIR INTAKE TUBE

1шт.

32

214-32128

HOSE CLAMP,7-1/4" - 8-1/8", HD Worm, W/ Liner

1шт.

33

87317551

AIR INTAKE TUBE

1шт.

STX530

1шт.

STEIGER 530

1шт.

33

87327365

AIR INTAKE TUBE

1шт.

STX480

1шт.

STEIGER 480

1шт.

34

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

35

87521399

SUPPORT

Rear Hood

1шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

37

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

38

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

39

87445268

SUPPORT TUBE,758, 546 mm L

Hood, Serial Range: -Z7F105942

1шт.

39

87589705

SUPPORT

Hood, Start Serial: Z7F105942

1шт.

40

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

41

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

42

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

43

728-16100

CLEVIS PIN,M16 x 100

, Serial Range: -Z7F105942

1шт.

44

829-1412

NUT,M12, Cl 10.9

3шт.

45

733-4032

COTTER PIN,M4 x 32

, Serial Range: -Z7F105942

1шт.

46

353-408

PLUG,Dome, .750" hole, Nylon

2шт.

47

87309821

SUPPORT

Air Intake Tube, Serial Range: -Z7F105942

1шт.

47

87580202

SUPPORT

Air Intake Tube, Start Serial: Z7F105942

1шт.

48

87310874

FOAM INSULATION

Air Intake, Start Serial: Z7F105942

1шт.

49

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

, Start Serial: Z7F105942

1шт.

50

87550203

GUIDE BUSHING

Latch Pin, Start Serial: Z7F105942

2шт.

51

829-1310

NUT,M10, Cl 10

, Start Serial: Z7F105942

2шт.
