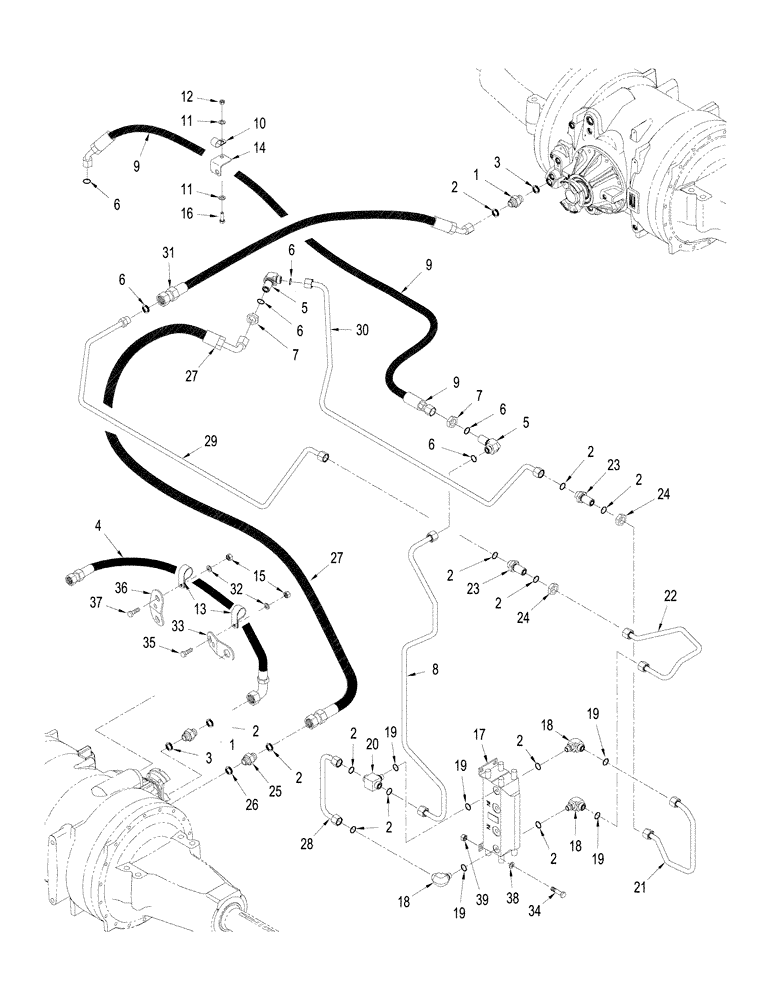

Запчасти Case IH STX480 (08-09) - 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WHEEL TRACTOR (08) - HYDRAULICS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

12шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

436864A1

HOSE ASSY.

533 mm (21")

1шт.

5

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

701-903

NUT,13/16" - 16

1шт.

8

87381645

HYD TUBE,9.4 mm ID x 12.7 mm OD x 736, 35 mm L

Air Supply, Motor Pump

1шт.

9

86992953

HOSE ASSY.

1715 mm (67-1/2 in)

1шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

2шт.

14

416102A1

SUPPORT

Bracket

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

17

434727A1

MOTOR-PUMP

Axle Air / Lube

2шт.

18

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 2, 19

3шт.

19

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

20

87323932

FITTING

Special, 1/2 or x fc sl, Inc. 2, 19

1шт.

21

449817A2

TUBE

1шт.

22

86992542

TUBE,12.70 mm OD

1шт.

23

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

24

701-903

NUT,13/16" - 16

2шт.

25

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 26

1шт.

26

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

27

87400117

HOSE ASSY.,12.7mm ID x 2299mm L

2299 mm (90-1/2 in)

1шт.

Used On Applications Without PTO

1шт.

28

449825A1

TUBE

Air Lube

1шт.

29

449794A1

TUBE

Return, Charged Pressure

1шт.

30

449823A1

TUBE

1шт.

31

86993937

HOSE ASSY.

1194 mm (47 in)

4шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

33

417271A1

BRACKET

1шт.

34

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

35

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

36

417272A1

BRACKET

1шт.

37

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

38

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

39

829-1310

NUT,M10, Cl 10

4шт.
