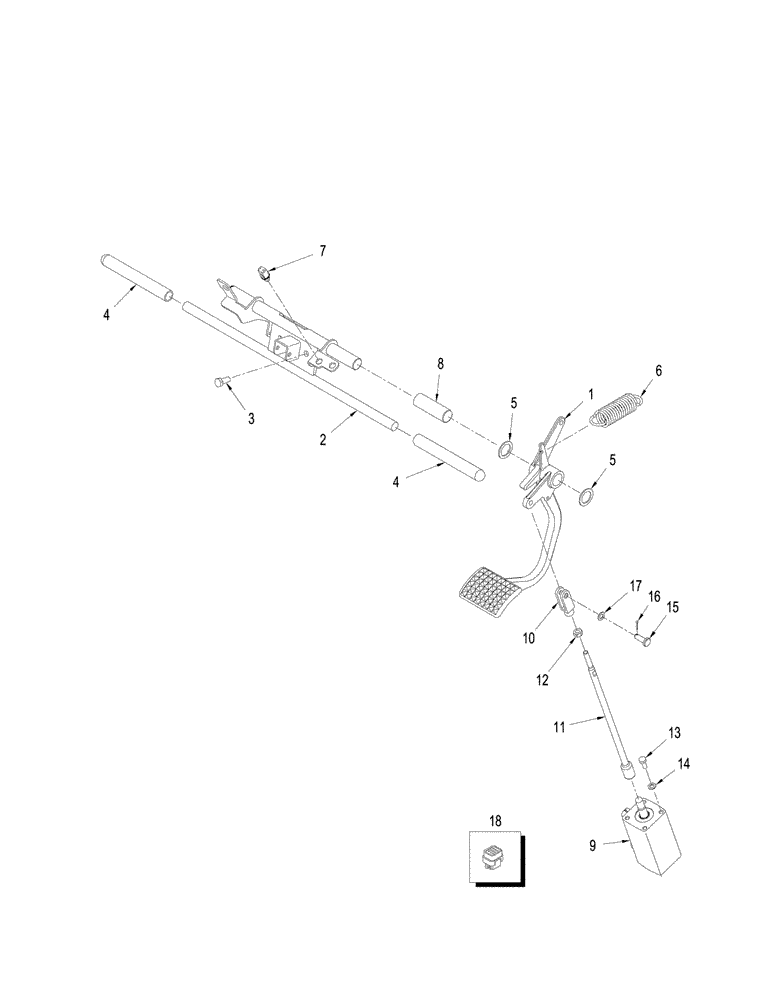

Запчасти Case IH STX480 (07-01) - BRAKE CONTROL (07) - BRAKES

1

222462A2

PEDAL

Brake

1шт.

2

87448885

SUPPORT

Pedal, Brake / Clutch

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

321961A1

MOLDING

Rubber

2шт.

5

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

2шт.

6

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

Extension

1шт.

7

279265A2

SWITCH

Brake Light

1шт.

8

281893A1

BEARING

1шт.

9

302822A3

VALVE

Brake, See Figure: 07-02

1шт.

10

713-1110

CLEVIS

M10 x 40

1шт.

11

369851A1

ROD

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

15

729-1030

CLEVIS PIN,M10 x 30

1шт.

16

733-2512

COTTER PIN,M2.5 x 12

1шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

18

345471A1

SWITCH

Differential Lock

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
