Запчасти Case IH STX480 (02-05) - HYDRAULIC FAN DRIVE - MOUNTING (02) - ENGINE

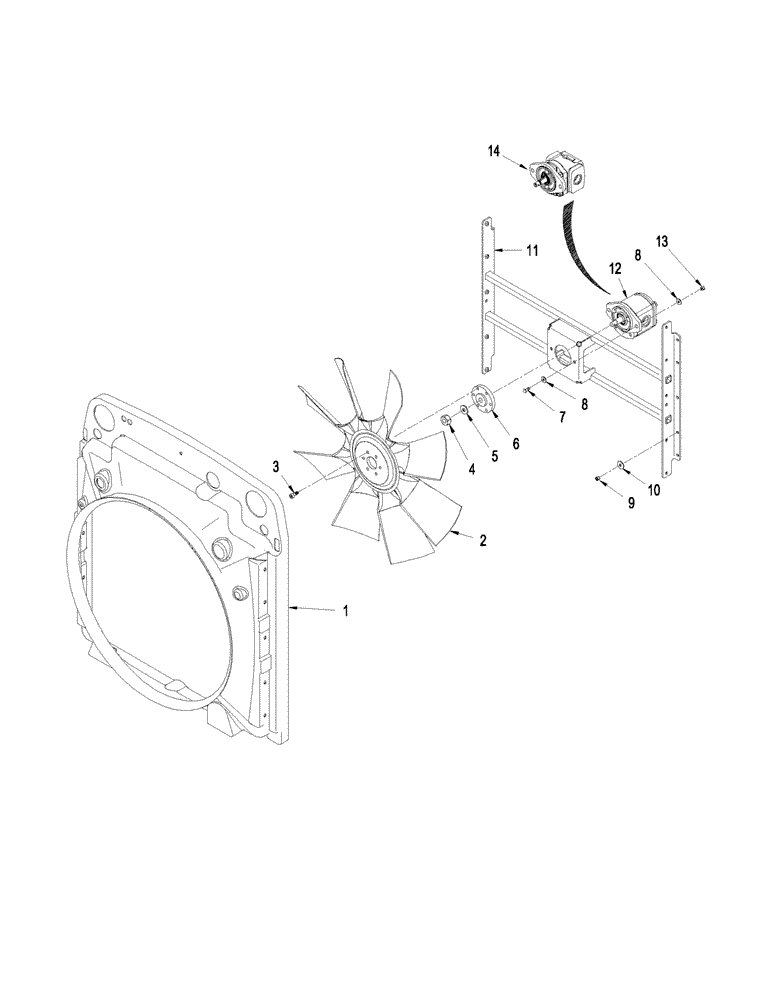

Схема запчастей Case IH STX480 - (02-05) - HYDRAULIC FAN DRIVE - MOUNTING (02) - ENGINE
7
3
5
4
9
8
2
8
12
11
1
14
13
6
10

Артикул

Название

Примечание

Количество

1

87303558

SHROUD

38" Fan

1шт.

2

87438155

FAN

38"

1шт.

3

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

6шт.

4

429-1110

NUT,5/8"-18, G8

1шт.

5

495-11066

WASHER,5/8", SAE

1шт.

6

87387504

FAN

1шт.

7

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

11

87387463

BRACKET

Mounting

1шт.

12

397444A1

MOTOR, HYDRAULIC,GEAR, 33 CC

Fan Drive, 33cc, See Figure: 02-06, Serial Range: -Z6F100996

1шт.

397444A1R

REMAN-HYD MOTOR

STEIGER 480, STEIGER 530 BOTH (ASN Z6F105001) STX480, STX530 BOTH (BTW Z6F100023 - Z6F105001) ALL SERIAL RANGE - Z6F100996

1шт.

397444A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

If Replacing BSN Z6F100996 Hydraulic Fan Drive Motor 397444A1 Order 87578863 Hydraulic Fan Service Kit.

1шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

87356899

HYDRAULIC MOTOR

Fan Drive, 33cc, See Figure: 02-06 (01), Start Serial: Z6F100996

1шт.

14

87724957R

REMAN-HYD MOTOR

1шт.

14

87724957C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

15

87578863

KIT

Hydraulic Fan Service, Inc. 14, Also See Figure: 08-46

1шт.

Выбрано товаров: 20
