Запчасти Case IH STX480 (06-71) - 500 SERIES AXLE ASSEMBLY - REAR COVER (06) - POWER TRAIN

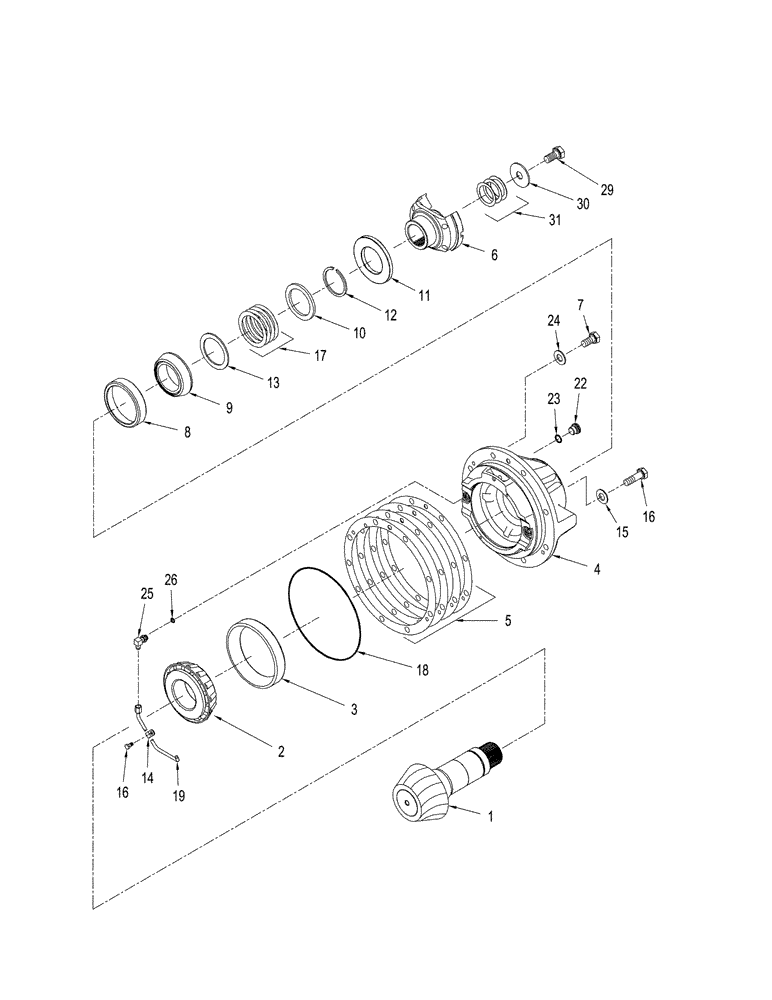

Схема запчастей Case IH STX480 - (06-71) - 500 SERIES AXLE ASSEMBLY - REAR COVER (06) - POWER TRAIN
24
26
18
31
2
11
23
14
17
29
16
1
12
15
19
5
10
22
9
25
3
7
8
30
16
4
6
13

Артикул

Название

Примечание

Количество

*

86985668

FRONT AXLE

HD W/Diff Lock

1шт.

*

86985668R

REMAN-FRONT AXLE w/D

HD W/Diff Lock

1шт.

*

86985668C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

*

86985669

REAR AXLE

HD W/Diff Lock

1шт.

*

86985669R

REMAN-RR AXLE W/DI

HD W/Diff Lock

1шт.

*

86985669C

CORE-REAR AXLE W/DI

Return Number

1шт.

*

87423305

FRONT AXLE

QT W/Diff

1шт.

*

87423305R

REMAN-AXLE

QT Front Axle W/ Diff, REMANUFACTURED

1шт.

*

87423305C

CORE-FRT AXLE w/DL

Return Number

1шт.

*

87423306

REAR AXLE

QT W/Diff Lock

1шт.

*

87423306R

REMAN-REAR AXLE 4WD

QT Rear Axle W/ Diff Lock

1шт.

*

87423306C

CORE-REAR AXLE W/DI

Return Number

1шт.

*

87522604

GEAR SET

Pinion Shaft and Gears, Rear Axle Cover, Inc. 1, See Figure 06-74 & 06-75

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft, Pinion

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

328422A5

COVER

Rear Axle

1шт.

5

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

5

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

5

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

5

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

6

284185A1

YOKE

UNIVERSAL JOINT YOKE 8,5 C

1шт.

7

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

8

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

228968A2

SPACER

Thick

1шт.

11

87432424

OIL SEAL

1шт.

12

229515A1

RING, SNAP

RING SNAP M4

1шт.

13

191713A1

SPACER

Thin

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

15

95-31038

WASHER,5/16"

3шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

191709A1

SHIM,0.076mm Thk

1шт.

17

191711A1

SHIM,0.101mm Thk

1шт.

17

191712A1

SHIM,0.130mm Thk

1шт.

17

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

18

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

19

313377A1

PIPE

Lubrication

1шт.

20

221578A1

PLUG,M18 x 1.5 ORB

Not Illustrated, Incl. 21

1шт.

STX Wheel Tractor

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl. 23

1шт.

For Decelerator Switch, See Figure 09-21

1шт.

23

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

24

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

25

86985636

ELBOW

Orificed, 5/16 x 3/8, Inc. 26

1шт.

27

9625178

PLUG,9/16" - 18 ORB

Not Illustrated, Incl. 28

1шт.

STX Wheel Tractor

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

30

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

31

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

31

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

31

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

31

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 56
