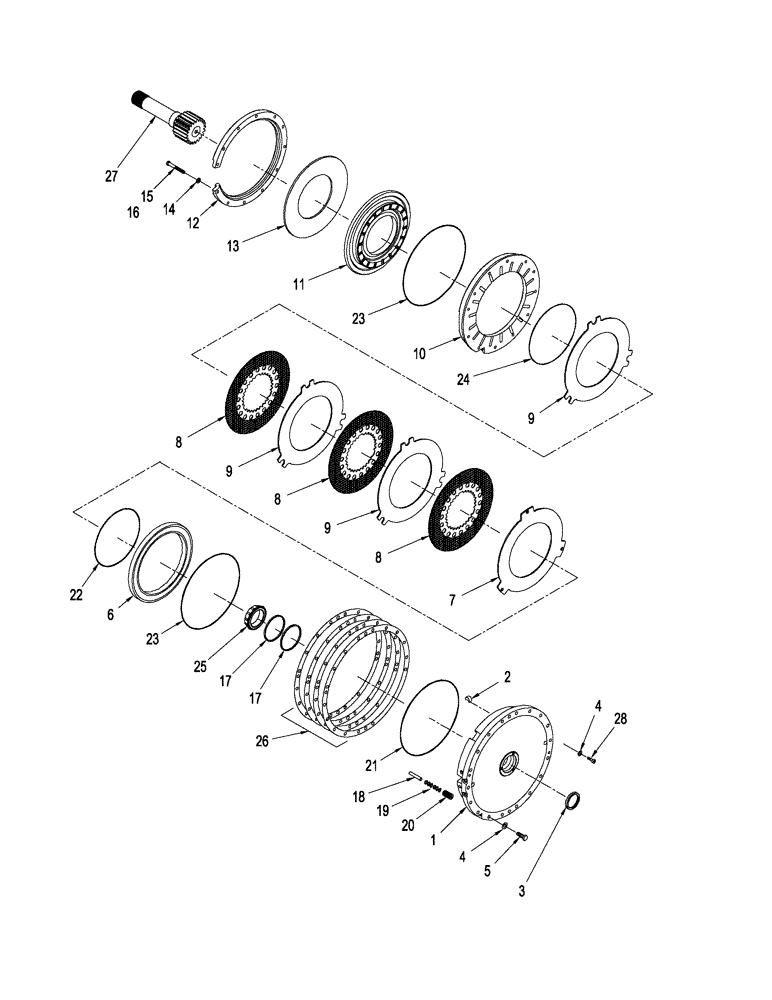

Запчасти Case IH STX480 (06-68) - 450 SERIES AXLE ASSEMBLY - BRAKE AND RIGHT-HAND CARRIER (06) - POWER TRAIN

87365608

FRONT AXLE

STD W/Diff

1шт.

87365608R

REMAN-FRT AXLE 4 WD

STD Front Axle W/ Diff

1шт.

87365608C

CORE-FRT AXLE 4 WD

CORE-PRESSURE SWITCH STD Front Axle W/Diff

1шт.

87365625

REAR AXLE

STD W/Diff

1шт.

87365625R

REMAN-RR AXLE STD DL

REMAN-REAR AXLE, STD w/DIFF LOCK Steiger 380, Steiger 430, Steiger 480, All ASN Z6F105001, STX380, STX430, STX480 All BTW SN Z6F100023 - Z6F105001

1шт.

87365625C

CORE-RR AXLE STDw/DL

CORE-REAR AXLE, STD w/DIFF LOCK Return Number, For N.A. Only

1шт.

87365639

FRONT AXLE

STD W/O Diff

1шт.

87365639R

REMAN-FRT AXLE w/DL

REMAN-FRONT AXLE, w/o DIFF LOCK Steiger 380, Steiger 430, Steiger 480, All ASN Z6F105001, N.A. Only

1шт.

STX380, STX430, STX 480, All BTW SN Z6F100023 - Z6F105001, N.A. Only

1шт.

87365639C

CORE-FRT AXLE w/o DL

Return Number, For N.A. Only

1шт.

87365643

REAR AXLE

STD W/O Diff

1шт.

87365643R

REMAN-REAR AXLE

Steiger 380, Steiger 430, Steiger 480, All ASN Z6F105001, N.A. Only

1шт.

STX380, STX430, STX480, All BTW Z6F100023 - Z6F105001), N.A. Only

1шт.

87365643C

CORE-REAR AXLE

Return Number, For N.A. Only

1шт.

398362A1

CARRIER

Assy., Brake, Inc. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

Carrier, Brake

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Expansion, 12mm

1шт.

3

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

18шт.

5

828-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

15шт.

6

178565A2

PISTON

Service Brake

1шт.

7

228194A3

PLATE

Return

1шт.

8

353363A1

PLATE

Friction

3шт.

9

228193A1

PLATE

Separator

3шт.

10

226252A2

PLATE

Backing

1шт.

11

226318A2

PISTON

Park Brake

1шт.

12

226254A4

RING

1шт.

13

226320A1

BELLEVILLE WASHER,225mm ID x 415mm OD x 7.799mm Thk

1шт.

14

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

15

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

16

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

10шт.

17

388308A1

SEALING RING

Ring

2шт.

235507A5

ADJUSTER

Inc. 18 - 20

3шт.

18

37-1832

DOWEL,1/2" x 2"

1шт.

19

100-1450

SNAP RING,#50, Ext

6шт.

20

1342928C1

BELLEVILLE WASHER

9шт.

21

238-5387

O-RING,0.21" Thk x 17.955" ID, -387, Cl 5, 75 Duro

Outer, Bake Carrier

1шт.

22

238-7277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 7, 75 Duro

Inner, Service Brake Piston

1шт.

23

238-7282

O-RING,0.139" Thk x 15.96" ID, -282, Cl 7, 75 Duro

Outer, Park & Service Brake Piston

2шт.

24

238-7278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 7, 75 Duro

Inner, Park Brake Piston

1шт.

25

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

25

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

26

178553A1

SHIM,0.076mm Thk

1шт.

26

178554A1

SHIM,0.101mm Thk

1шт.

26

178555A1

SHIM,0.130mm Thk

1шт.

26

198843A1

SHIM,0.508mm Thk

1шт.

27

310692A1

SHAFT

Sun Gear, Long

1шт.

28

390873A1

SPECIAL BOLT

3шт.

29

388308A1

SEALING RING

Not Illustrated

1шт.
