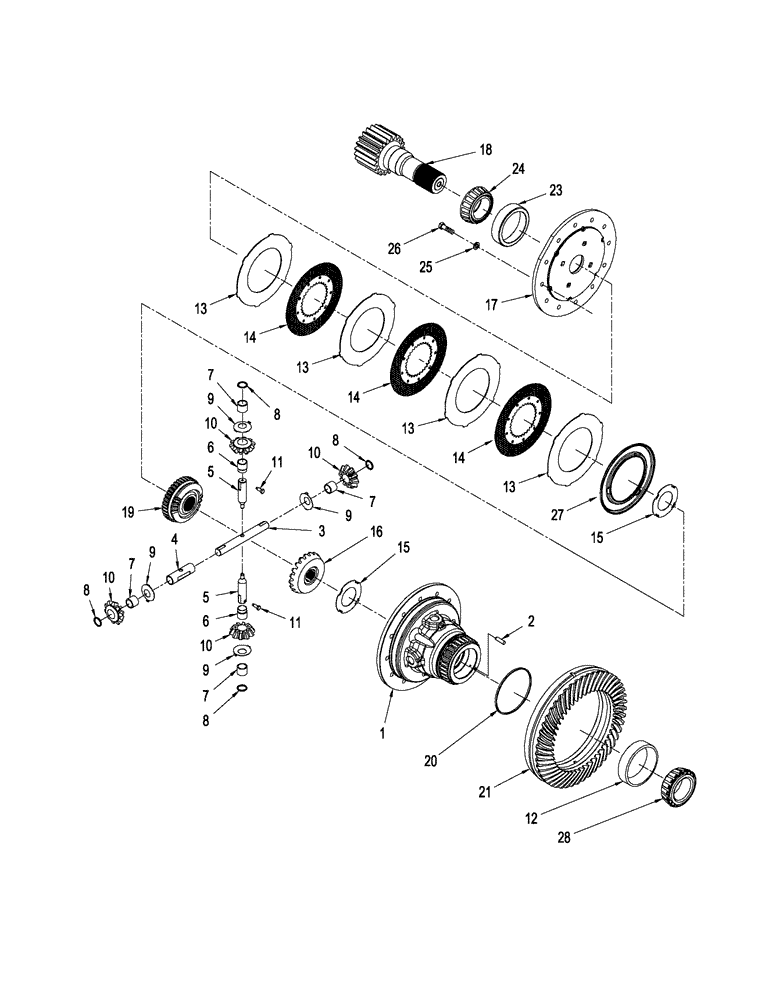

Запчасти Case IH STX480 (06-67) - 450 SERIES AXLE ASSEMBLY - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS (06) - POWER TRAIN

87365608

FRONT AXLE

STD Front Axle W/Diff

1шт.

87365608R

REMAN-FRT AXLE 4 WD

STD Front Axle W/ Diff

1шт.

87365608C

CORE-FRT AXLE 4 WD

CORE-PRESSURE SWITCH STD Front Axle W/Diff

1шт.

87365625

REAR AXLE

STD W/Diff

1шт.

87365625R

REMAN-RR AXLE STD DL

REMAN-REAR AXLE, STD w/DIFF LOCK Steiger 380, Steiger 430, Steiger 480, All ASN Z6F105001, STX380, STX430, STX480 All BTW SN Z6F100023 - Z6F105001

1шт.

87365625C

CORE-RR AXLE STDw/DL

CORE-REAR AXLE, STD w/DIFF LOCK Return Number, For N.A. Only

1шт.

87471385

DIFFERENTIAL ASSY

with Diff Lock, Inc. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Differential

1шт.

2

87520606

PLUG

10 mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

2шт.

12

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Separator

4шт.

14

120679C1

PLATE

Friction

3шт.

15

87629650

THRUST WASHER

2шт.

16

1259633C3

GEAR

1шт.

17

253609A4

COVER

Differential Housing

1шт.

18

310693A1

SHAFT

Sun Gear, Short

1шт.

19

1259634C3

PINION

Lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

302259A2

BEVEL GEAR

Pinion Shaft and Gears, Front Axle, Inc. 21, See Figure 06-63

1шт.

302260A1

GEAR SET

Pinion Shaft and Gears, Rear Axle, Not Illustrated, Inc. 22, See Figure 06-64

1шт.

21

NSS

NOT SOLD SEPARAT

Gear, Drive, Front Axle

1шт.

22

NSS

NOT SOLD SEPARAT

Gear, Drive, Rear Axle

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

26

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

27

1997422C1

PISTON

Brake

1шт.

28

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.
