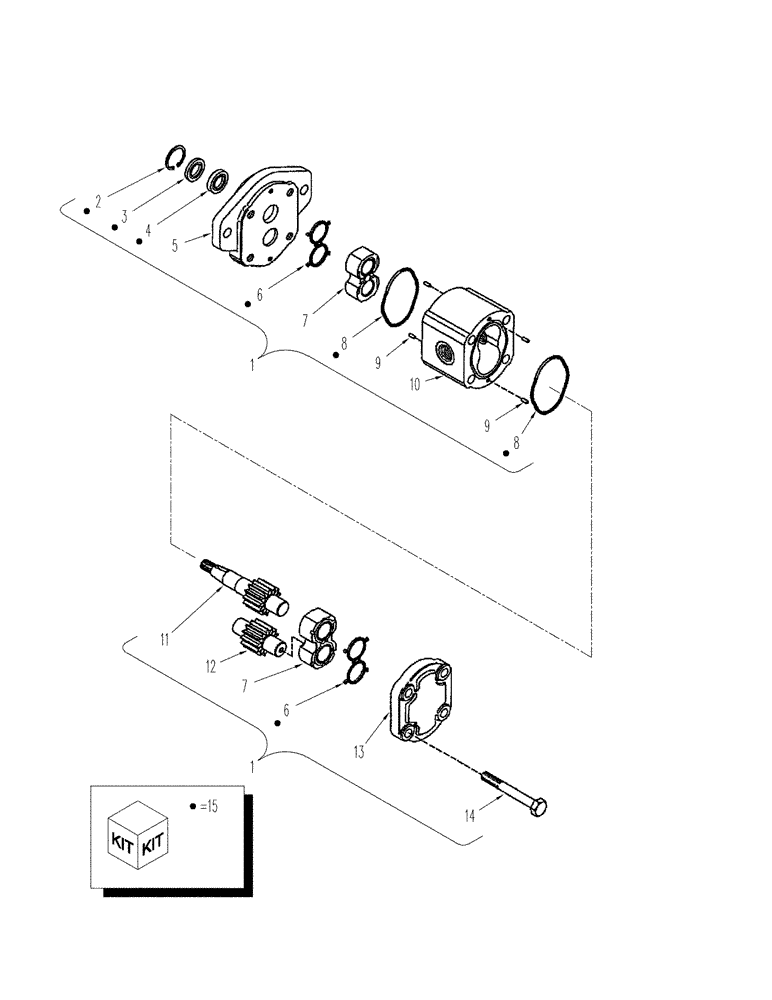

Запчасти Case IH STX450 (02-03[01]) - HYDRAULIC FAN MOTOR ASSY (02) - ENGINE

1

87409411

HYDRAULIC MOTOR

Fan Drive, 29cc, Inc. 1 - 14

1шт.

87409411R

REMAN-HYD MOTOR

STX425, STX450, STX500 All 4WD TRACTOR (AFTER S/N JEE0099501)

1шт.

87409411C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Flange

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

Plate, Wear

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

9

NSS

NOT SOLD SEPARAT

Pin, Dowel

4шт.

10

NSS

NOT SOLD SEPARAT

Housing, Gear, 33 cc

1шт.

11

NSS

NOT SOLD SEPARAT

Shaft, Drive Gear

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft, Idler Gear

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, End

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt

4шт.

15

435698A1

SEAL KIT

Seal

1шт.
