(05.100.03[01]) - FILTERS, STX450

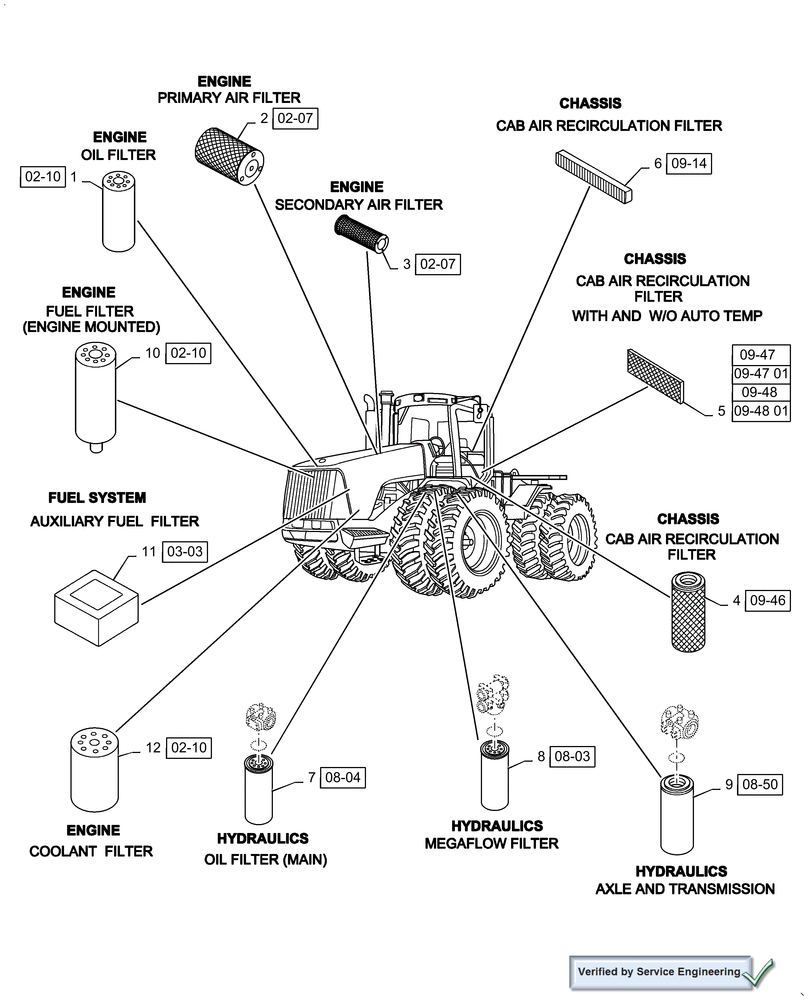

Запчасти Case IH STX450 (05.100.03[01]) - FILTERS, STX450 (00) - PICTORIAL INDEX

Схема запчастей Case IH STX450 - (05.100.03[01]) - FILTERS, STX450 (00) - PICTORIAL INDEX
08-50
02-07
02-10
2
03-03
02-10
12
11
09-47
08-03
5
08-04
8
10
02-10
09-46
09-47 01
1
9
3
09-14
4
7
02-07
6
09-48
09-48 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

324617A1

ENGINE OIL FILTER

Spin-On

1шт.

2

426020A1

AIR FILTER

Primary

1шт.

3

426021A1

AIR FILTER

Secondary

1шт.

4

259288A1

CAB FILTER

Fresh Air

1шт.

5

87409377

FILTER

Recirculation, Auto Temp

1шт.

5

87409377

FILTER

Recirculation, W/O Auto Temp

1шт.

6

87409368

CAB FILTER

Recirculation

1шт.

7

87404986

HYDRAULIC OIL FILTER

Main

1шт.

8

1346028C1

HYDRAULIC OIL FILTER

Megaflow

1шт.

9

1346028C1

HYDRAULIC OIL FILTER

Axle and Transmission

1шт.

10

419858A1

FUEL FILTER

Mounted on Engine

1шт.

11

87409379

FUEL FILTER,30 Micron

Aux

1шт.

12

324618A1

FILTER

Engine Coolant

1шт.

Выбрано товаров: 13
