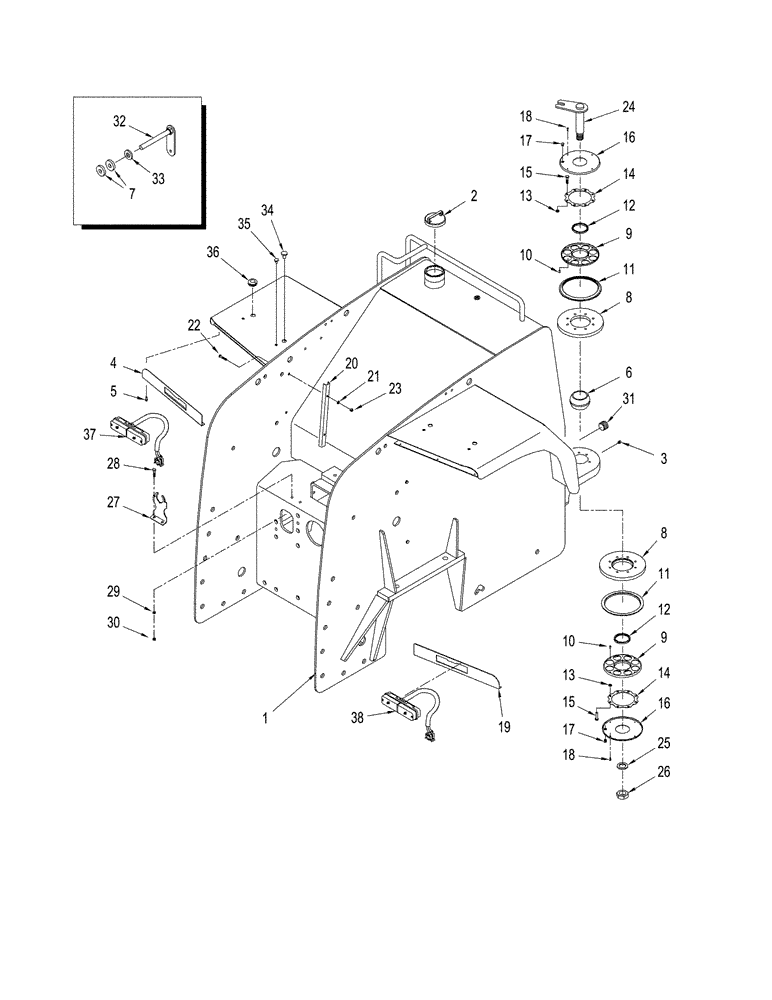

Запчасти Case IH STX450 (09-38) - REAR FRAME, WHEEL TRACTOR (09) - CHASSIS

1

426737A1

FRAME

1шт.

2

433479A1

CAP

Fuel

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

417862A1

COVER

Left-Hand

2шт.

5

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

6шт.

6

446720A1

SPHERICAL BEARING,145.2 mm

1шт.

7

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

8

330032A1

COVER

2шт.

433481A1

BEARING ASSY

Inc. 9, 10, Serial Range: -JEE0108927

2шт.

87365383

BEARING ASSY

Inc. 9, 10, Start Serial: JEE0108927

1шт.

9

NSS

NOT SOLD SEPARAT

Housing

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer

8шт.

11

433478A1

SEAL

2шт.

12

D95148

WIPER SEAL

, Serial Range: -JEE0108927

2шт.

13

432444A1

SPACER

16шт.

14

430250A1

RETAINER

2шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

16

433480A2

COVER

, Serial Range: -JEE0108927

2шт.

16

87365381

COVER

, Start Serial: JEE0108927

2шт.

17

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

8шт.

18

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

4шт.

19

417863A1

COVER

Right-Hand

1шт.

20

330164A2

GUARD

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

394364A1

PIN

1шт.

25

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4 x 2-3/4 x 1/4

1шт.

26

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

27

349568A3

PLATE

1шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

31

384163A1

PLASTIC PLUG

1шт.

32

406390A1

HANDLE

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

34

353-422

PLUG,Dome, 1.250" hole, Nylon

1 in

2шт.

35

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

36

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

3/4 in

2шт.

37

429385A1

LAMP, WORK

LIGHT, WORK LH, See Figure: 04-13

1шт.

37

388337A1

INDICATOR LIGHT

LH, See Figure: 04-13 (Europe Only)

1шт.

38

417788A1

LAMP, WORK

LIGHT, WORK RH, See Figure: 04-13

1шт.

38

388338A1

INDICATOR LIGHT

RH, See Figure: 04-13 (Europe Only)

1шт.
