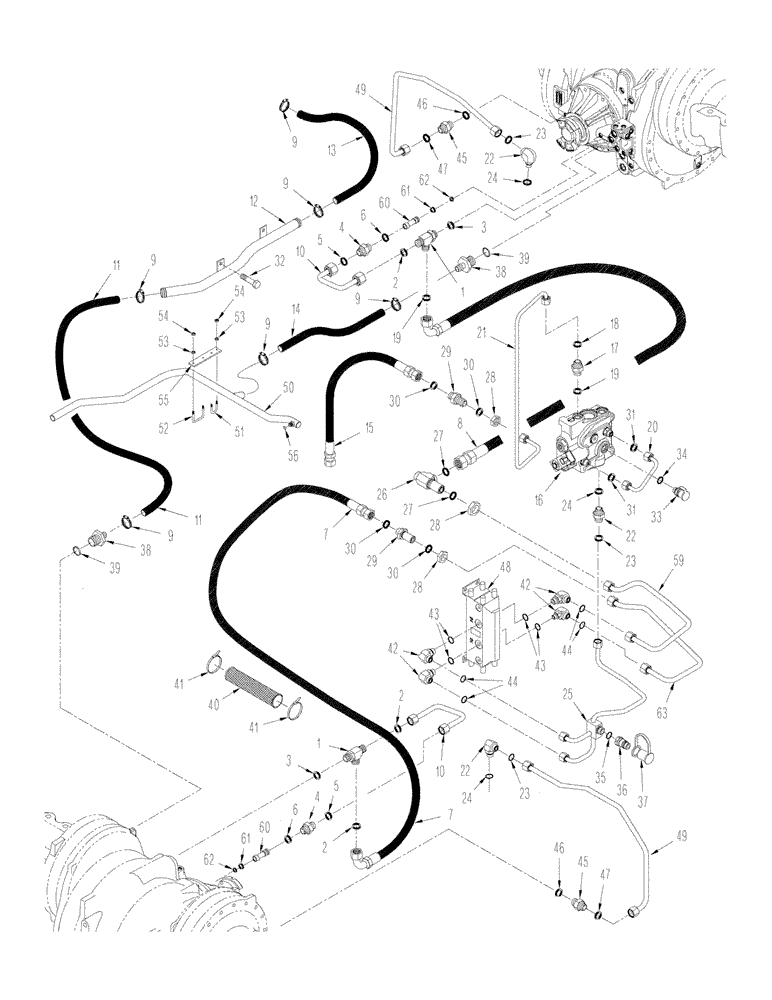

Запчасти Case IH STX450 (08-09[01]) - 500 SERIES AXLE HYDRAULICS - LUBRICATION CIRCUIT, BTW JEE0102001 & JEE0106701, QUADTRAC TRACTOR (08) - HYDRAULICS

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

3шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

7

375663A1

HOSE ASSY.

2165 mm (85 in)

1шт.

7

87424325

HOSE ASSY.

2165 mm (85 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

8

87413873

HOSE ASSY.

1898mm (75 in)

1шт.

8

87424326

HOSE ASSY.

1898 mm (75 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

451013A1

TUBE

2шт.

11

340971A1

HOSE

1219 mm (48 in), Cut From : 31-2755

1шт.

12

416280A2

TUBE

1шт.

13

340972A1

HOSE

787 mm (31 in), Cut From : 31-2755

1шт.

14

395933A1

HOSE,1.00" ID x 15.00"

Cut From S118383

1шт.

15

87414080

HOSE ASSY.

970 mm (39 in)

1шт.

15

87424331

HOSE ASSY.

990 mm (39 in)

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

411104A1

VALVE

Regulator, See Figure 08-13

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 18, 19

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

413338A1

TUBE

1шт.

21

413334A1

TUBE

1шт.

22

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 23, 24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

449802A2

TUBE

1шт.

26

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

90, 1/2 x blkhd, Incl. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

701-903

NUT,13/16" - 16

3шт.

29

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 30

2шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

33

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 34

1шт.

34

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

19,3 ID x 2,2 mm

1шт.

36

392690A1

COUPLING

Inc. 35

1шт.

37

399032A1

CAP

Dust

1шт.

38

390348A1

STEM

M33 orb x barb, Axle Drain, Inc. 39

2шт.

39

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

40

334783A1

SLEEVE

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

42

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1/2 or x 13/16 fc sl, Incl. 43, 44

4шт.

43

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 46, 47

2шт.

46

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

48

434727A1

MOTOR-PUMP

Axle Air / Lube

1шт.

49

451015A1

TUBE

Final Drive, Long

2шт.

50

409614A1

TUBE

Return

1шт.

51

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

52

396490A1

U-BOLT

BOLT "U"

2шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

54

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

55

394302A1

PLATE

Mounting

2шт.

56

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

57

L111928

CLAMP

Double

3шт.

58

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

59

449813A2

TUBE

1шт.

60

87400028

ORIFICE

Pinnion Cover

2шт.

61

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

62

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

63

449815A2

TUBE

1шт.
