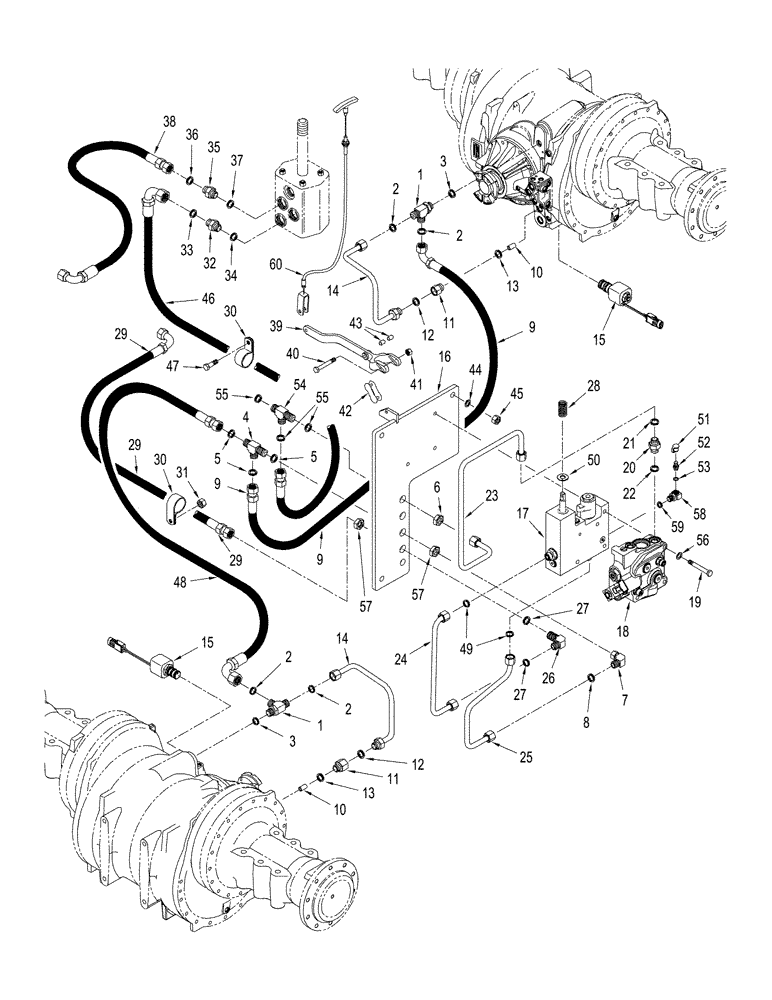

Запчасти Case IH STX450 (07-11) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, BSN JEE0102001, QUADTRAC TRACTOR (07) - BRAKES

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

4

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 5

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

6

701-919

BHD LOCK NUT,1" - 14

3шт.

7

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

383969A2

HOSE ASSY.

1845 mm (73 in)

1шт.

341195A1

ORIFICE

Inc. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

413340A1

TUBE

2шт.

15

384977A1

VALVE

Differential Lock, See Figure 08-43

2шт.

16

413320A1

PLATE

Mounting

1шт.

17

319774A4

VALVE

Tow Block, See Figure 08-14

1шт.

18

411104A2

VALVE

Regulator, See Figure 08-13

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 21, 22

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

413324A1

TUBE

1шт.

24

413332A1

TUBE

1шт.

25

413330A1

TUBE

1шт.

26

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

361897A1

SPRING

1шт.

29

352114A1

HOSE

1460 mm (57 in)

1шт.

30

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

3шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

32

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 33, 34

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

35

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 36, 37

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

37

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

38

335095A2

HOSE ASSY.

1050 mm (41 in)

1шт.

39

390918A3

ARM

1шт.

40

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

41

832-10406

NUT,M6 x 1, Cl 8

1шт.

42

242-4412

CHAIN LINK

1шт.

43

392748A1

SPACER

2шт.

44

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

45

829-1412

NUT,M12, Cl 10.9

3шт.

46

391790A2

HOSE ASSY.

2368 mm (93 in)

1шт.

47

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

48

352112A3

HOSE ASSY.

2336 mm (92 in)

1шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 51 - 53

1шт.

51

H434163

DUST CAP

1шт.

52

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

53

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

54

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 55

1шт.

55

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

56

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

57

701-903

NUT,13/16" - 16

3шт.

58

428078A1

ELBOW

Inc. 59

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

60

349863A2

CABLE

Tow Valve, See Figure: 08-39 for Mounting & Parts

1шт.
