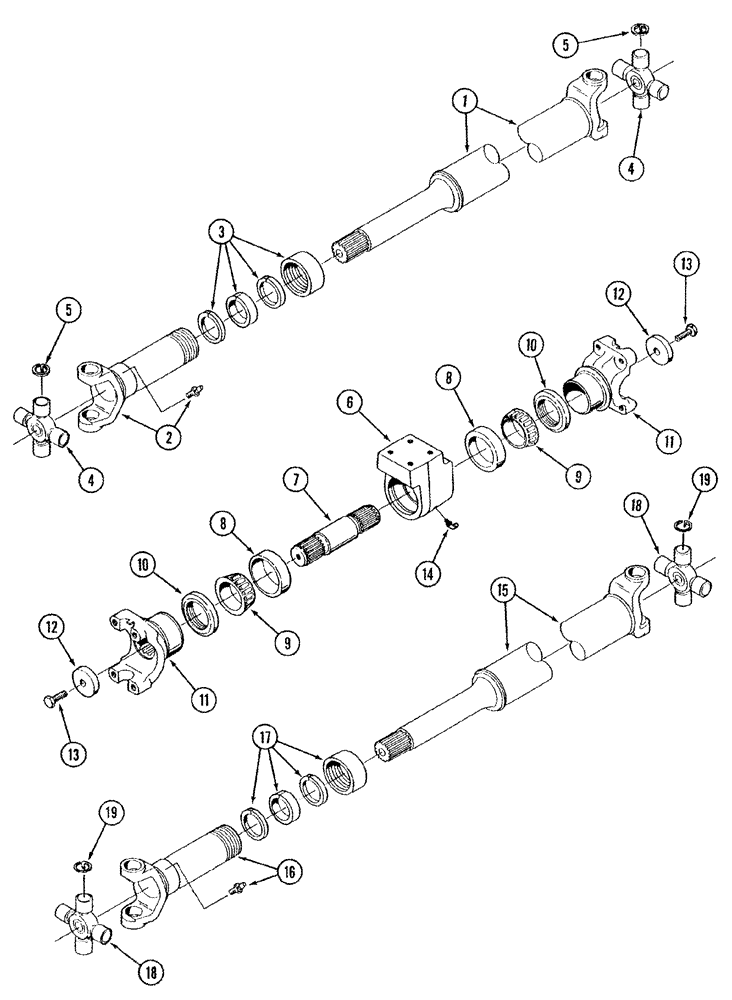

Запчасти Case IH STX440 (06-35) - POWER TAKEOFF DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-7008T91

SHAFT

articulation, consists of: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE slip

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

3

33-1001T1

SEAL RETAINER

1шт.

4

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

2шт.

5

L116943

SECURING STRAP

4шт.

389841A2

BEARING ASSY

hanger, order components, consists of: Ref. 6 - 14

1шт.

6

399447A1

HOUSING, BEARING

1шт.

7

399446A1

SHAFT

PTO Hanger Bearing

1шт.

8

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

2шт.

9

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

2шт.

10

90-1934T2

SEAL

2шт.

11

398554A1

YOKE

UNIVERSAL JOINT YOKE

2шт.

12

19-5864

WASHER

5/8 x 2-3/4 x 1/2

2шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

303502A2

DRIVE SHAFT

rear, consists of: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

16

NSS

NOT SOLD SEPARAT

YOKE slip

1шт.

17

33-1001T1

SEAL RETAINER

1шт.

18

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

2шт.

19

L116943

SECURING STRAP

4шт.
