(06-30) - FIFTH SHAFT ASSY

Запчасти Case IH STX440 (06-30) - FIFTH SHAFT ASSY (06) - POWER TRAIN

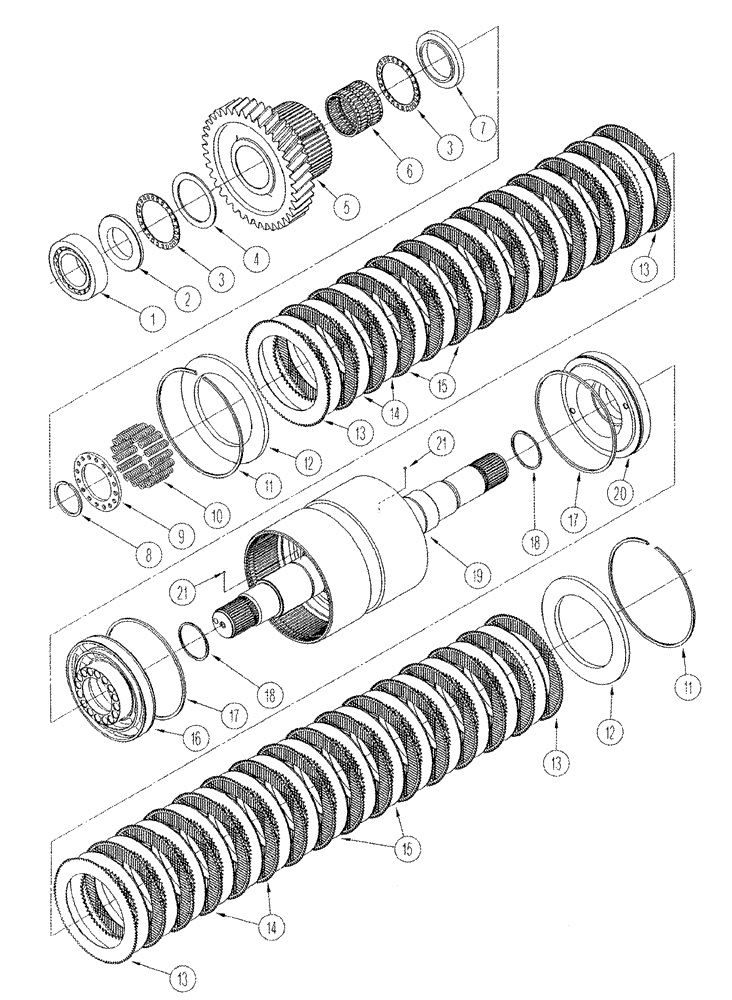

Схема запчастей Case IH STX440 - (06-30) - FIFTH SHAFT ASSY (06) - POWER TRAIN
13
6
18
18
1
12
14
19
17
9
2
13
7
21
15
21
15
3
3
20
14
17
5
8
11
12
4
11
13
10
13
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

370541A1

SHAFT ASSY.

fifth, consists of: Ref. 1 - 27

1шт.

1

33-1705T1

TAPERED BEARING

2шт.

2

364831A1

THRUST WASHER

2шт.

3

353060A1

THRUST BEARING

4шт.

4

358908A1

THRUST WASHER

2шт.

5

364832A1

GEAR

driven

1шт.

6

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

4шт.

7

362614A1

THRUST WASHER

1шт.

8

S5040S00F

RING

4шт.

9

362615A1

PLATE

spring retaining

1шт.

10

364833A1

SPRING

16шт.

11

90-8233T1

RING, SNAP

RING SNAP

2шт.

12

370554A1

CLUTCH DISC

CLUTCH DISK

2шт.

13

370555A1

CLUTCH DISC

CLUTCH DISK face

4шт.

14

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm, if used

1шт.

14

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK 2.1 mm, if used, Ref. 14, S4070S00F and S4110S00F are different sizes. Select proper combination of plates. Not to exceed 27 total.

1шт.

15

370556A1

CLUTCH DISC

CLUTCH DISK face, 8

25шт.

16

370558A1

PISTON

8

1шт.

17

370559A1

RING

2шт.

18

S4410S00F

RING

2шт.

19

370561A1

SHAFT

drum

1шт.

20

370562A1

PISTON

8

1шт.

21

S14701960

BALL,3.968mm OD

2шт.

398440A1

GASKET KIT

transmission repair, see Figures 06-16, 06-17, 06-20 - 06-22, 06-24, 06-25, 06-29, Includes: Ref. 17, 18

1шт.
