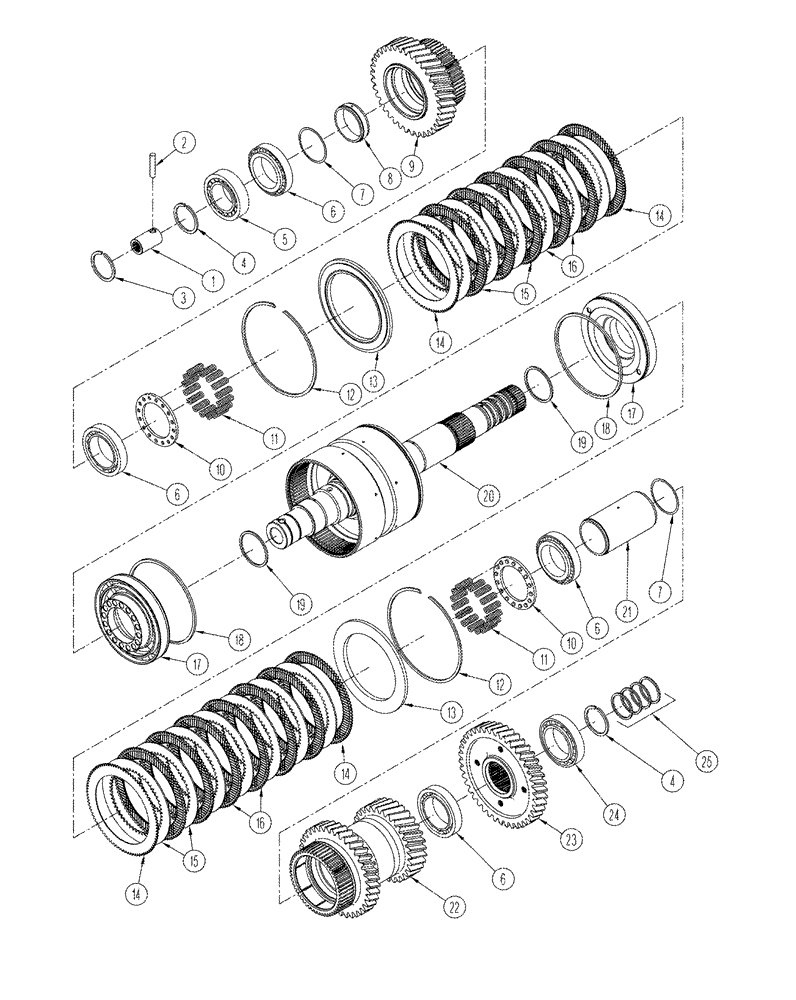

Запчасти Case IH STX440 (06-26) - SECOND SHAFT ASSY (06) - POWER TRAIN

370539A1

SHAFT ASSY.

second, consists of: Ref. 1 - 25

1шт.

1

90-7939T1

TRANSMISSION SLEEVE

1шт.

2

90-7941T1

DOWEL

1шт.

3

352816A1

RING, SNAP

RING SNAP 3.0 mm

1шт.

4

352378A1

RING, SNAP

RING SNAP 2.5 mm

1шт.

4

352394A1

RING, SNAP

RING SNAP 2.6 mm

1шт.

4

352397A1

RING, SNAP

RING SNAP 2.7 mm

1шт.

4

352400A1

RING, SNAP

RING SNAP 2.8 mm

1шт.

4

352815A1

RING, SNAP

RING SNAP 2.9 mm

1шт.

4

352816A1

RING, SNAP

RING SNAP 3.0 mm

1шт.

5

90-8459T1

ROLLER BEARING

1шт.

6

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

4шт.

7

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

7

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

7

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

7

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

7

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

7

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

8

359260A1

SPACER

1шт.

9

359262A1

GEAR

2R

1шт.

10

352827A1

PLATE

retaining spring

2шт.

11

352828A1

SPRING

32шт.

12

352829A1

RING, SNAP

RING SNAP

2шт.

13

352830A1

PLATE

2шт.

14

352831A1

CLUTCH DISC

CLUTCH DISK 7

4шт.

15

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm, if used

1шт.

15

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK 2.1 mm, if used, Ref. 15, S2080S00F and S2090S00F plates are different sizes. Select the proper combination of plates. Not to exceed 13 total.

1шт.

16

352832A1

CLUTCH DISC

CLUTCH DISK 7

11шт.

17

352833A1

PISTON

7

2шт.

18

352834A1

RING

2шт.

19

S2610S00F

RING

2шт.

20

359280A1

SHAFT

drum

1шт.

21

362423A1

SPACER

1шт.

22

362542A1

GEAR

2M

1шт.

23

362543A1

GEAR

driven

1шт.

24

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

25

S3070S00F

RING

2шт.
