Запчасти Case IH STX440 (06-25) - INPUT SHAFT ASSY (06) - POWER TRAIN

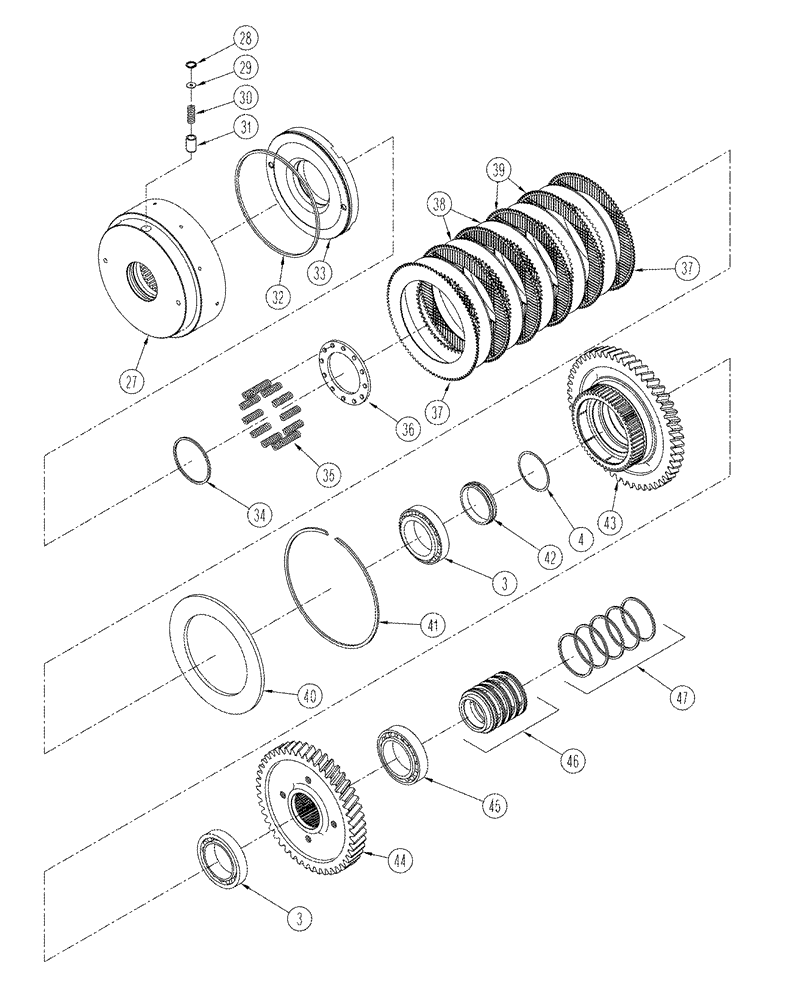

Схема запчастей Case IH STX440 - (06-25) - INPUT SHAFT ASSY (06) - POWER TRAIN
46
32
39
45
29
41
31
47
40
37
3
27
30
43
35
33
42
3
34
28
37
44
36
38
4

Артикул

Название

Примечание

Количество

370538A1

SHAFT ASSY.

input, 7, continued from previous page, consists of: Ref. 1 - 47

1шт.

13

352832A1

CLUTCH DISC

CLUTCH DISK 7

10шт.

14

352833A1

PISTON

7

2шт.

15

352834A1

RING

2шт.

16

S2610S00F

RING

2шт.

17

353058A1

SHAFT

drum

1шт.

18

33-1416T1

RING, SNAP

RING SNAP

1шт.

19

353059A1

THRUST WASHER

1шт.

20

353060A1

THRUST BEARING

2шт.

21

353061A1

GEAR

1M

1шт.

22

358865A1

NEEDLE BEARING

1шт.

23

358866A1

RING, SNAP

RING SNAP

1шт.

24

358867A1

SPACER

1шт.

25

358908A1

THRUST WASHER

1шт.

26

S14701960

BALL,3.968mm OD

1шт.

27

358918A1

DRUM

clutch, 1F

1шт.

28

800-2116

SNAP RING,M16, Int

1шт.

29

S3220S00F

SHIM

0.70 mm

1шт.

30

S3210S00F

SPRING

1шт.

31

S3200S00F

DRAIN VALVE

1шт.

32

S2630S00F

RING

1шт.

33

358970A1

PISTON

1шт.

34

S5510S00F

RING

1шт.

35

358971A1

SPRING

12шт.

36

358972A1

PLATE

retaining

1шт.

37

370555A1

CLUTCH DISC

CLUTCH DISK

2шт.

38

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm

5шт.

39

370556A1

CLUTCH DISC

CLUTCH DISK 8

4шт.

398440A1

GASKET KIT

transmission repair, see Figures 06-16, 06-17, 06-20 - 06-22, 06-24, 06-29 - 06-31, Includes: Ref. 32, 34, 47

1шт.

40

90-8234T1

PLATE

end

1шт.

41

90-8233T1

RING, SNAP

RING SNAP

1шт.

42

359203A1

SPACER

1шт.

43

359204A1

GEAR

1F

1шт.

44

359205A1

GEAR

drive

1шт.

45

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

46

359207A1

CARRIER

seal

1шт.

47

S4150S00F

RING

5шт.

Выбрано товаров: 37
