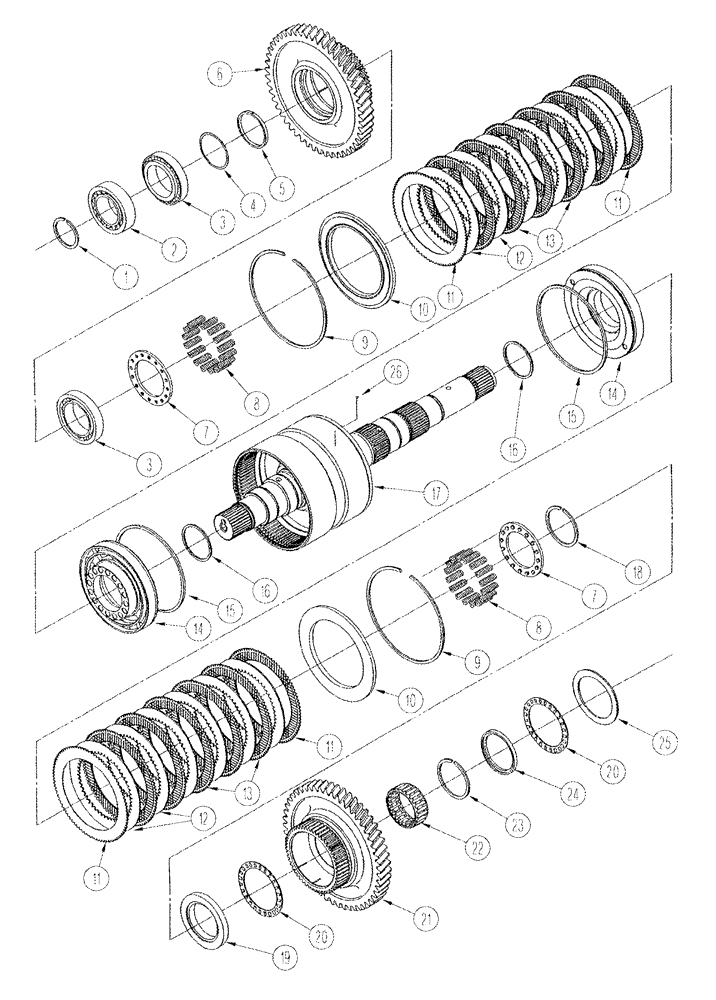

Запчасти Case IH STX440 (06-24) - INPUT SHAFT ASSY (06) - POWER TRAIN

370538A1

SHAFT ASSY.

Input, 7, Consists of: Ref. 1 - 47, Continued on Next Page.

1шт.

1

352378A1

RING, SNAP

RING SNAP 2.5 mm

1шт.

1

352394A1

RING, SNAP

RING SNAP 2.6 mm

1шт.

1

352397A1

RING, SNAP

RING SNAP 2.7 mm

1шт.

1

352400A1

RING, SNAP

RING SNAP 2.8 mm

1шт.

1

352815A1

RING, SNAP

RING SNAP 2.9 mm

1шт.

1

352816A1

RING, SNAP

RING SNAP 3.0 mm

1шт.

2

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

ROLLER, TAPERED

1шт.

3

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

ROLLER, TAPERED

4шт.

4

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

4

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

4

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

4

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

4

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

4

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

5

352825A1

SPACER

1R BEARING

1шт.

6

352826A1

GEAR

1R

1шт.

7

352827A1

PLATE

RETAINER SPRINGS

2шт.

8

352828A1

SPRING

RETURN

32шт.

9

352829A1

RING, SNAP

RING SNAP

2шт.

10

87431390

CLUTCH PLATE

CLUTCH END

2шт.

11

352831A1

CLUTCH DISC

CLUTCH DISK 7

4шт.

12

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm, if used

1шт.

12

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK 2.1 mm, if used, Ref. 12, S2080S00F and S2090S00F plates are different sizes. Select the proper combination of plates. Not to exceed 13 total.

1шт.

13

352832A1

CLUTCH DISC

7" FACED

11шт.

14

352833A1

PISTON

7"

2шт.

15

87431391

RING

SEAL

2шт.

16

S2610S00F

RING

SEAL

2шт.

17

353058A1

SHAFT

1ST

1шт.

18

428163A1

RING, SNAP

RETAINING

1шт.

19

353059A1

THRUST WASHER

1шт.

20

87640391

THRUST BEARING

THRUST

2шт.

21

87431392

GEAR

1M

1шт.

22

358865A1

NEEDLE BEARING

NEEDLE

1шт.

23

358866A1

RING, SNAP

1шт.

24

358867A1

SPACER

1шт.

25

358908A1

THRUST WASHER

1шт.

26

358918A1

DRUM

1F CLUTCH

1шт.

27

800-2116

SNAP RING,M16, Int

1шт.

28

S3220S00F

SHIM

WASHER, VALVE

1шт.

29

S3210S00F

SPRING

VALVE

1шт.

30

S3200S00F

DRAIN VALVE

1шт.

31

S2630S00F

RING

SEAL

1шт.

32

358970A1

PISTON

1F CLUTCH

1шт.

33

S5510S00F

RING

SEAL

1шт.

34

358971A1

SPRING

RETURN

12шт.

35

358972A1

PLATE

1F SPRING

1шт.

36

370555A1

CLUTCH DISC

CLUTCH FACED

2шт.

37

S4070S00F

CLUTCH DISC,2.4mm Thk

2.4MM (0.094")

5шт.

37

S4110S00F

CLUTCH DISC,2.1mm Thk

2.1MM (0.083")

5шт.

38

370556A1

CLUTCH DISC

8" FACED CLUTCH

4шт.

39

442803A1

PLATE

CLUTCH END

1шт.

40

428108A1

RING, SNAP

1шт.

41

359203A1

SPACER

1F BEARING

1шт.

42

359204A1

GEAR

1F

1шт.

43

359205A1

GEAR

DRIVE

1шт.

44

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

45

359207A1

CARRIER

PISTON RING

1шт.

46

S4150S00F

RING

RING SEAL

5шт.

47

S14701960

BALL,3.968mm OD

STEEL

1шт.
