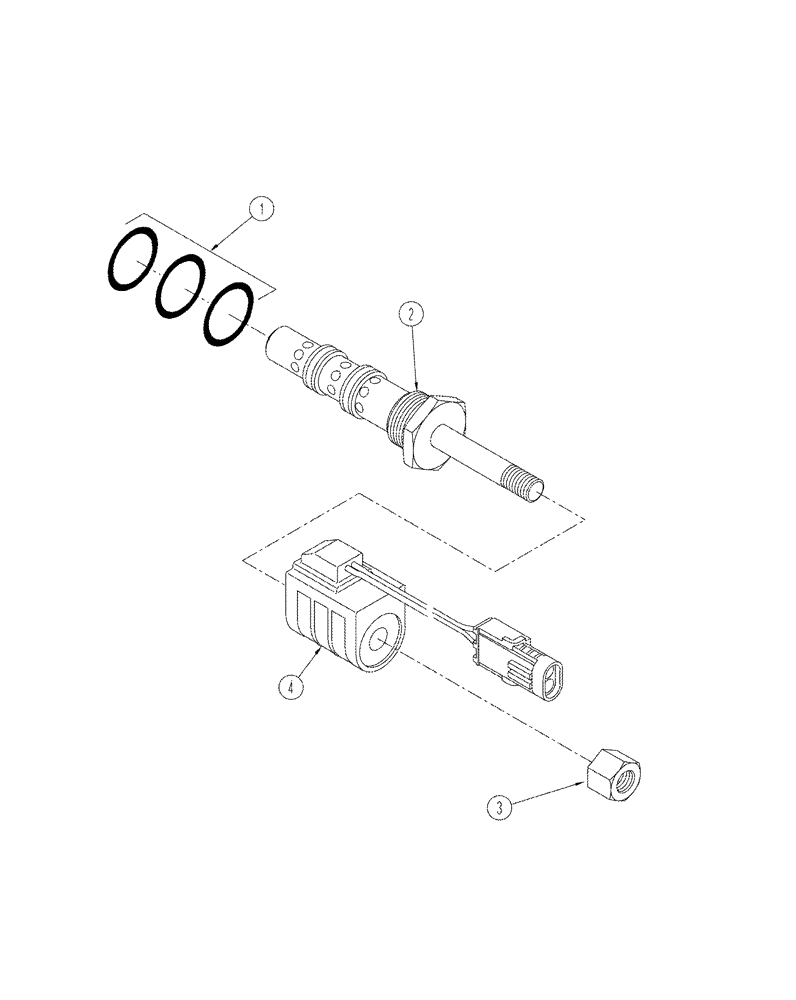

Запчасти Case IH STX440 (06-22) - VALVE ASSY PULSE WITH MODULATION (06) - POWER TRAIN
1
4
3
2
№
Артикул
Название
Примечание
Количество
362578A1
VALVE
pulse with modulation, consists of: Ref. 1 - 4
1шт.
370608A1
O-RING KIT
O-ring, consists of: Ref. 1
1шт.
1
NSS
NOT SOLD SEPARAT
O-RING
1шт.
1
NSS
NOT SOLD SEPARAT
O-RING
1шт.
1
NSS
NOT SOLD SEPARAT
O-RING
1шт.
370611A1
SOLENOID VALVE
consists of: Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
SOLENOID
1шт.
3
NSS
NOT SOLD SEPARAT
NUT
1шт.
4
370610A1
COIL
1шт.
398440A1
GASKET KIT
transmission repair, see Figures 06-16, 06-17, 06-20, 06-21, 06-24, 06-25, 06-29 - 06-31, Includes: Ref. 1
1шт.
