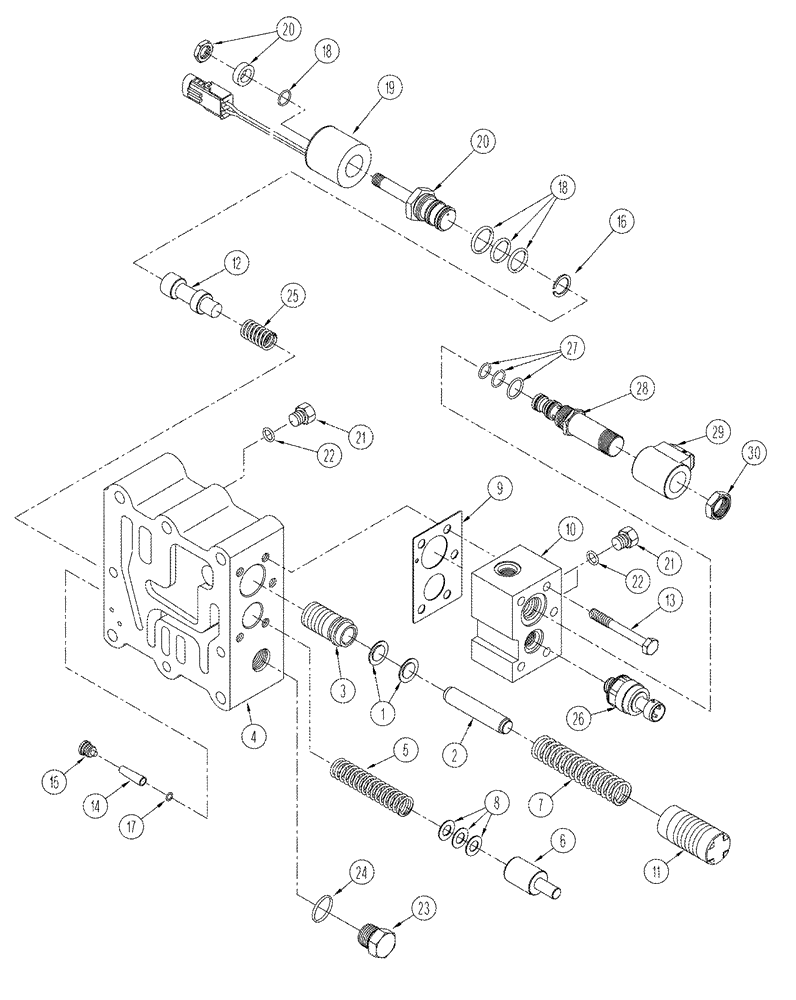

Запчасти Case IH STX440 (06-20) - REGULATOR VALVE ASSY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
385957A1
VALVE
consists of: Ref. 1 - 24
1шт.
1
395752A1
SHIM
0.039 in.
1шт.
2
385780A1
ROD
pressure
1шт.
3
385781A1
VALVE
1шт.
4
370590A2
VALVE BODY
1шт.
5
398443A1
SPRING
2шт.
6
398444A1
VALVE
lube
1шт.
7
370591A1
SPRING
1шт.
8
398445A1
SHIM,0.79mm Thk
0.031 in.
1шт.
9
370593A1
GASKET
1шт.
10
385778A1
VALVE BODY
solenoid
1шт.
11
391884A1
PISTON
1шт.
12
370597A1
SPOOL
1шт.
13
426-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8
5шт.
14
33-1538T1
FILTER
1шт.
15
33-1539T1
PLUG
1шт.
16
33-1534T1
RING, SNAP
RING SNAP
1шт.
17
33-1537T1
O-RING
filter
1шт.
371737A1
SOLENOID VALVE
three-way, consists of: Ref. 18 - 20
1шт.
371737A1R
REMAN-SOLENOID
STX375 (BSN JEE0099501), STX440
1шт.
371737A1C
CORE-SOLENOID
Return Number
1шт.
398441A1
GASKET KIT
short gasket overhaul, see Figures 06-16, 06-17, 06-21, Includes: Ref. 9
1шт.
398440A1
GASKET KIT
transmission repair, see Figures 06-16, 06-17, 06-21, 06-22, 06-24, 06-25, 06-29 - 06-31, Includes: Ref. 9 and 18
1шт.
371738A1
O-RING KIT
O-ring, consists of: Ref. 18
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING lower
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING middle
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING upper
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING plug nut
1шт.
20
370600A1
SOLENOID VALVE
1шт.
21
220064A1
PLUG,M14 x 1.5, ORB
Incl. Ref. 22
2шт.
22
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
2шт.
23
220066A1
PLUG,M18 x 1.5, ORB
Includes Ref. 24
1шт.
24
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
25
370596A1
SPRING
1шт.
26
231751A1
PRESSURE SWITCH
pressure
1шт.
239552A2
SOLENOID VALVE
pulse with modulation, consists of Ref. 27 - 30
1шт.
27
NSS
NOT SOLD SEPARAT
O-RING
1шт.
27
NSS
NOT SOLD SEPARAT
O-RING
1шт.
27
NSS
NOT SOLD SEPARAT
O-RING
1шт.
28
304831A1
SPOOL
1шт.
29
304834A1
SOLENOID
1шт.
30
NSS
NOT SOLD SEPARAT
NUT
1шт.
Выбрано товаров: 44
