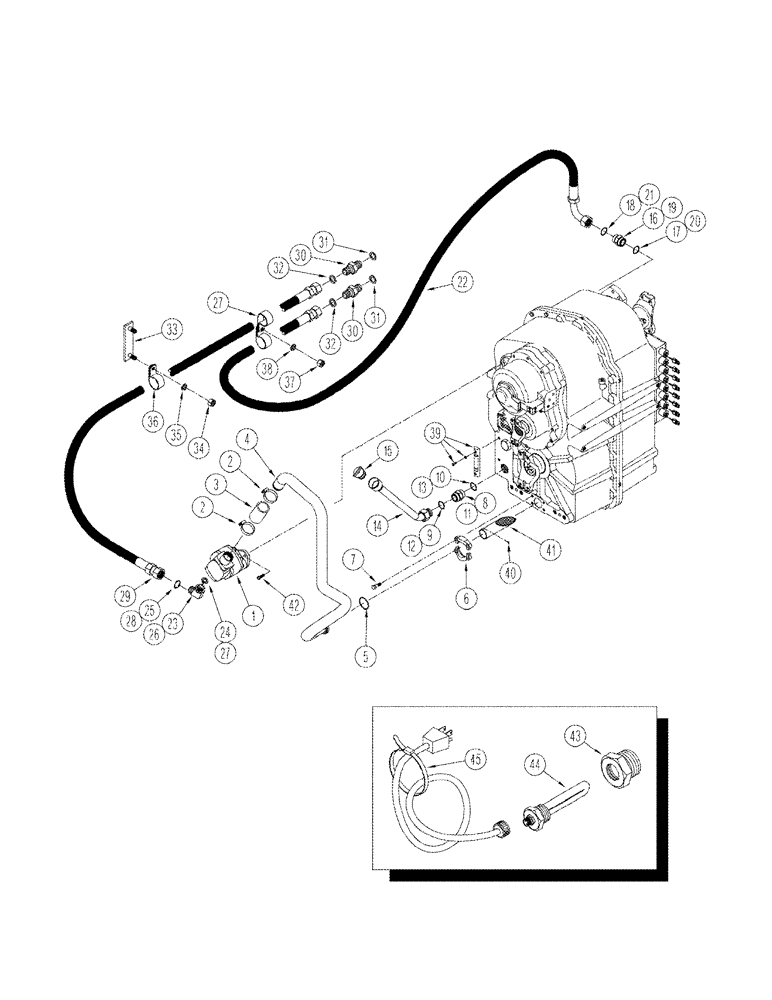

Запчасти Case IH STX440 (06-14) - TRANSMISSION LUBRICATION (06) - POWER TRAIN

1

370546A1

PUMP

oil

1шт.

1

84176413R

REMAN-HYD PUMP

Reman for New PN 370546A1

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

1-4568

HOSE

102 mm (4 in.)

1шт.

4

320382A1

TUBE

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

8

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

- JEE0097599, Includes: Ref. 9 and 10

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

11

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

JEE0097600 -, Includes: Ref. 12 and 13

1шт.

12

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

14

360285A1

TUBE,31.8 mm OD, 622, 57 mm Length

transmission fill

1шт.

15

325737A1

CAP

1шт.

16

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref. 14 and 15, Serial Range: -JEE0097599

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Includes: Ref. 20 and 21, Start Serial: JEE0097600

1шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

327444A2

HOSE ASSY.,25.4mm ID x 1811mm L

supply

1шт.

23

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

- JEE0097599, 1-7/16 fc x 1-5/16 or, Includes: Ref. 18 and 19

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Ref. 27 and 28, Start Serial: JEE0097600

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

29

307167A1

HOSE,25.4mm ID x 2565mm L

2565 mm (101 in.), outlet

1шт.

30

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Includes: Ref. 22 and 23

2шт.

32

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

33

324089A1

PLATE ASSY.

2шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

36

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

6шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

39

L116247

GAUGE

Includes: hardware

1шт.

40

S14701960

BALL,3.968mm OD

1шт.

41

370551A1

TUBE

1шт.

42

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

43

50-3675T1

FITTING

- JEE0097599

1шт.

43

367930A1

ADAPTER,M42 x 2 NPT

JEE0097600 -

1шт.

44

385486A1

HEATER ASSY.

300 W, with cord set

1шт.

45

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

31

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
