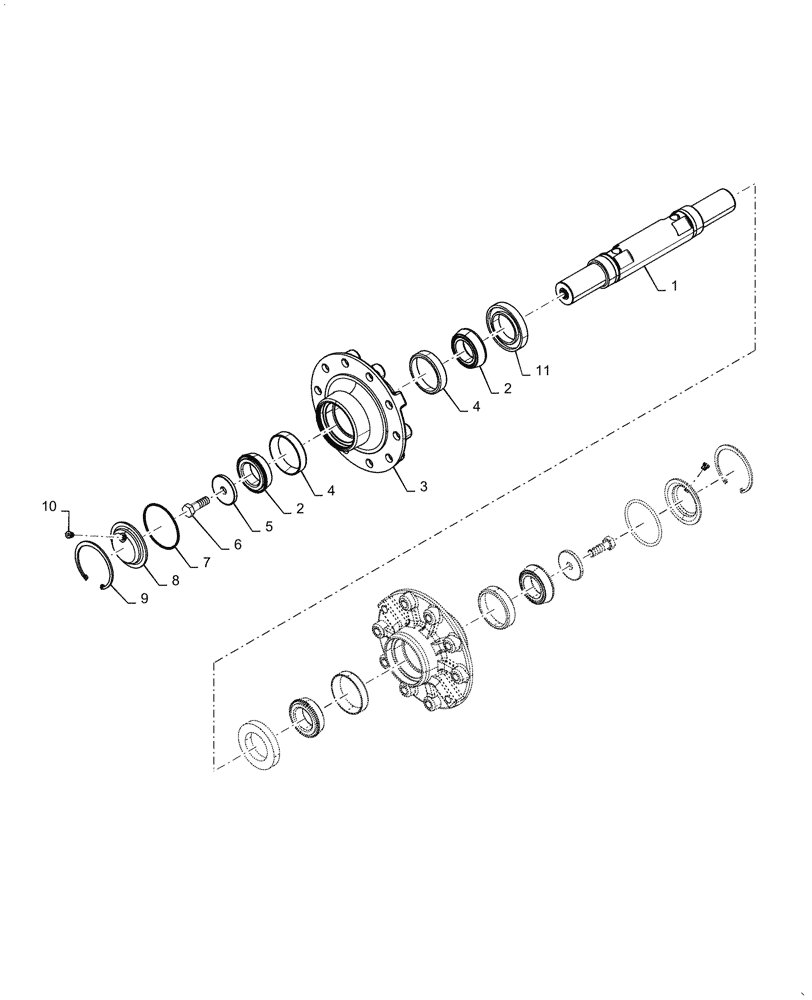

Запчасти Case IH STX440 (06-06) - REAR IDLER ASSY (ARCTIC) (06) - POWER TRAIN

1

84167370

IDLE SHAFT

Rear, Arctic

1шт.

2

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

3

379708A3

HUB

Idler Wheel

2шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

5

87387720

RETAINER

Bearing

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

7

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

8

87408174

CAP

Idler Hub

2шт.

9

370014

SNAP RING,M130, Internal

2шт.

10

86598043

PLUG,M12 x 1.5 ORB

2шт.

11

87427009

SEAL

Idler Shaft

2шт.
