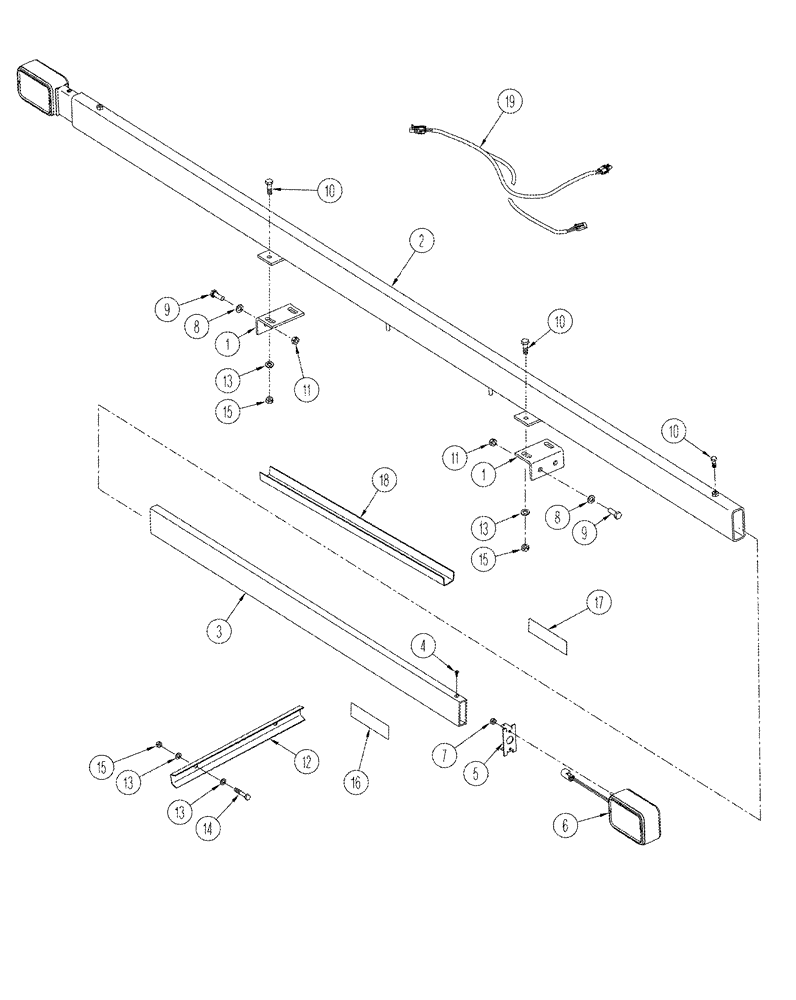

Запчасти Case IH STX440 (04-19) - LAMPS MARKER (04) - ELECTRICAL SYSTEMS

1

367194A1

BRACKET

2шт.

2

362493A1

SUPPORT TUBE,1016, 800 mm Length

1шт.

3

362491A1

TUBE,1227.5 mm Length

1шт.

4

843-2512

SCREW,Flat , M5 x 12mm, Cl 4.8

2шт.

5

362496A1

BRACKET

1шт.

6

367321A1

LAMP

Warning, See Figure 04-20

1шт.

7

824-1405

NUT,M5, Cl 5

2шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

330164A2

GUARD

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

14

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

16

297221A1

DECAL

red and orange

4шт.

17

297223A1

DECAL

yellow

4шт.

18

362624A1

CHANNEL

1шт.

19

366964A1

HARNESS

marker lamp

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
