Запчасти Case IH STX440 (04-14) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

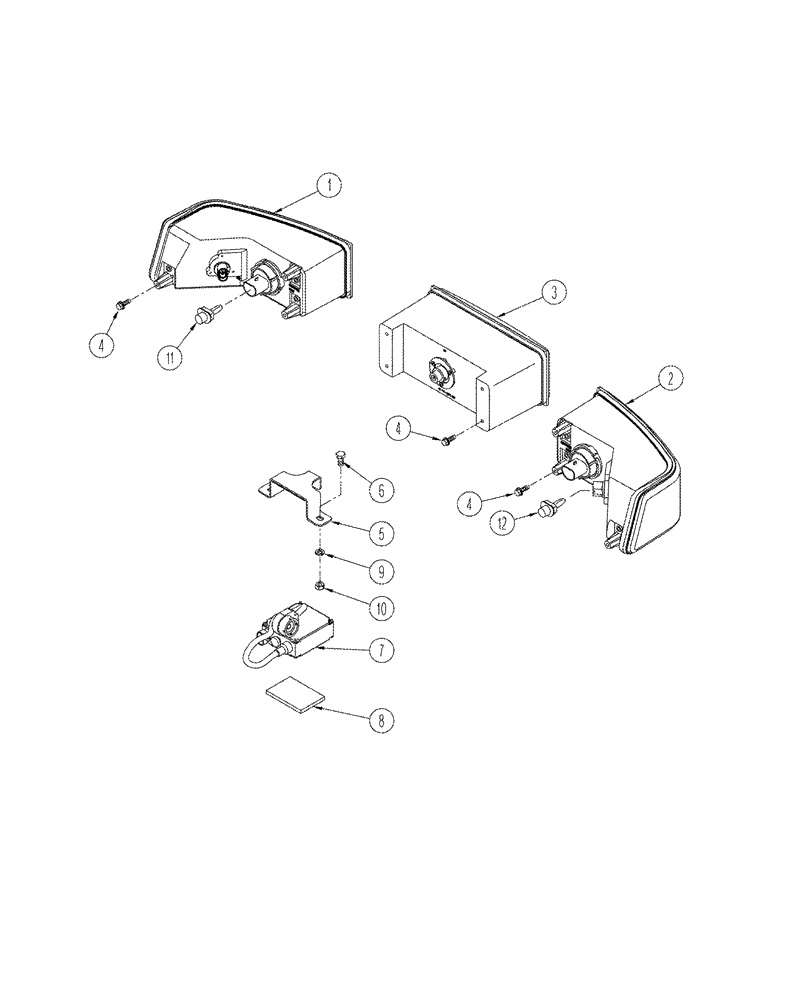

Схема запчастей Case IH STX440 - (04-14) - HEADLAMPS (04) - ELECTRICAL SYSTEMS
5
7
4
4
1
4
11
12
6
3
8
9
2
10

Артикул

Название

Примечание

Количество

1

365842A1

HEADLAMP

with work lamp, left-hand, Includes: Ref. 11 and 12

1шт.

2

365841A1

HEADLAMP

with work lamp, right-hand, Includes: Ref. 11 and 12

1шт.

3

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

center, halogen

1шт.

3

232455A2

WORK LAMP,HID, 12V, 35W, Clear

center, high intensity discharge

1шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

10шт.

5

333646A1

CLAMP

high intensity discharge

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

7

322332A1

BALLAST

high intensity discharge

1шт.

8

333643A1

GASKET

foam

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

388872A1

BULB

headlamps

1шт.

12

323093A1

BULB

worklight, 885-12V

1шт.

Выбрано товаров: 13
